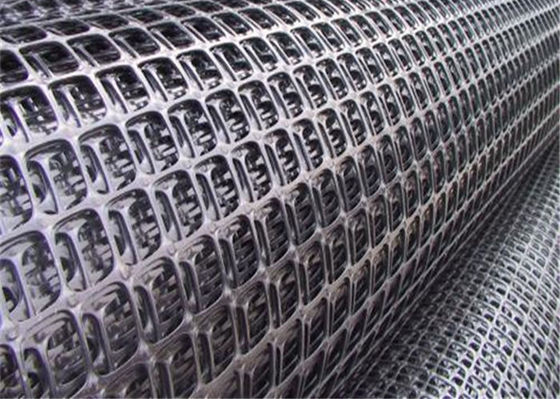

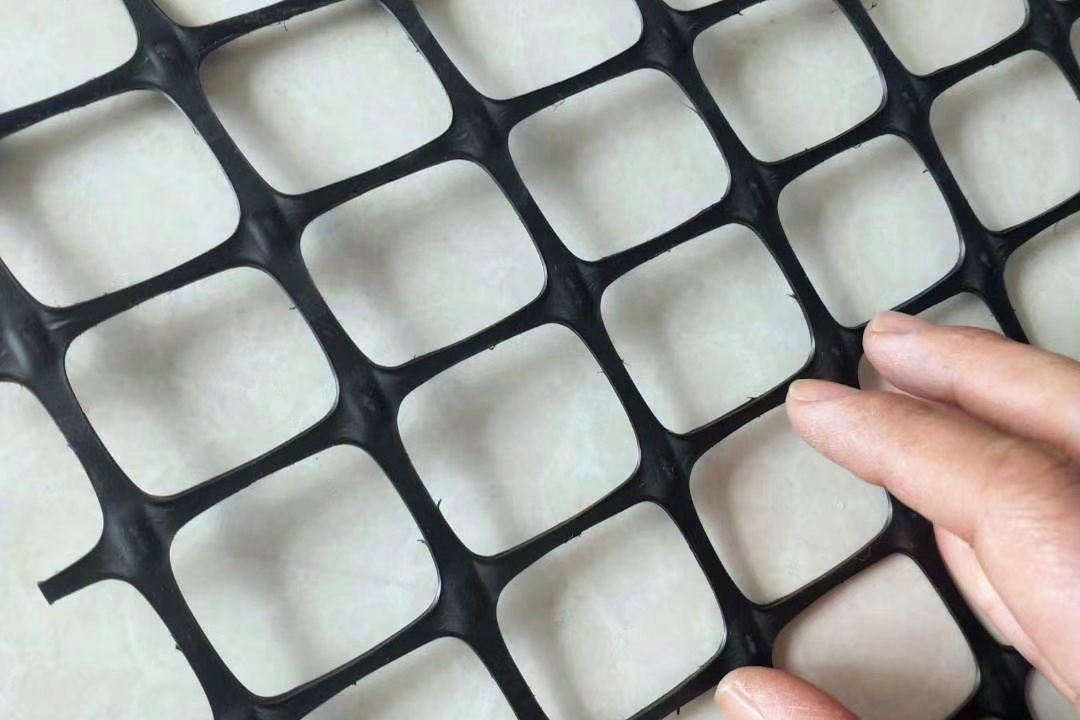

Biaxial Concrete Reinforcement Plastic Geogrid Mesh

Product Details:

Place of Origin:	Anping, China
Brand Name:	China
Certification:	ISO 9001
Model Number:	TGSG15,TGSG20,TGSG25,TGSG30,TGSG35,TGSG40,TGSG45,TGSG50

Payment & Shipping Terms:

Minimum Order Quantity:	1000m2
Price:	Deliberation
Packaging Details:	packing belt
Delivery Time:	5-8 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	40000M2 per week

Contact Now

Detailed Product Description

Material:	Polypropylene	Width:	3.9 Meters Or 5.9 Meters
Length:	50 Meters	Tensile Strength:	TGSG 25-25KN
Mesh Hoe:	32*32mm	Color:	Black, Gray, Green
Feature:	High Tension Resistance	Applications:	Landfill, Roadway, Underground Detention, Dam/pond
MOQ:	5000 Squre Meters	Package:	Woven Bags
High Light:	concrete reinforcement plastic geogrid mesh , plastic geogrid mesh biaxial , concrete reinforcement biaxial geogrid

Increase Soft Soils Under Embankments And Road Life Span High Strength Polypropylene Biaxial Plastic Geogrid

Biaxial Plastic Geogrid Introduction

1. PP Biaxial Plastic Geogrid is made from PP resin as its raw material, produced through extruding, punching, heating, longitudinal stretching, transverse stretching.

2. Performance: High tensile strength at both longitudinal & transverse dire.

Main type: 15-15, 20-20, 25-25, 30-30, 40-40, 50-50

Biaxial Plastic Geogrid Specification

project	TGSG15-15	TGSG20-20	TGSG25-25	TGSG30-30	TGSG40-40	TGSG45-45	TGSG50-50
Longitudinal tensile yield force KN/m	15	20	25	30	40	45	50
Transverse tensile yield force KN/m	15	20	25	30	40	45	50
Tensile Strength @2% Strain KN/m	5	7	9	10.5	14	16	17.5
Tensile Strength @5% Strain KN/m	7	14	17	21	28	32	35
Roll width	3.95 or 5.95 meters
Roll Length	50 meters
Feature	1. It can decrease 30%-40% of filling thickness for reaching same effect, save cost. 2. Convenient construction, saving effort, shortening construction period and reducing maintenance cost. 3. Strengthen soil slopes to prevent soil erosion. 4. Can replace metal mesh, used in coal mine underground false roof

Biaxial Plastic Geogrid Precautions

1. The turning or braking of vehicles on the geotextile should be avoided as far as possible, especially when paving the asphalt surface course, any sharp turning or car killing sliding may bring up or damage the geotextile.
2. Construction under rainy, humid or cold weather conditions will affect the bonding strength and overlay effect of the coating.
3. Traffic must be closed during laying. Except for construction vehicles, other vehicles are allowed to pass through the geotextile only in case of emergency.
4. If there is slippage of paver when paving hot mix asphalt mixture, a small amount of stone chips can be sprinkled on the surface of tack coat oil.
Generally speaking, when we master the construction points of geotextile skillfully, we can make it play a greater economic benefit and make greater contribution to our urban construction.

Biaxial Plastic Geogrid Function

1. Increase the bearing capacity of the roadbed and foundation and prolong their service life.

2. Prevent road surface and foundation from sinking or flawing, keep clean and beautiful ground surface. pp geogridpp geogrid 3. Convenient construction saves time and labor, reduce mounting time and decrease maintenance expense. plastic soil stab 4. Prevent culverts from flawing.plastic soil stabilization geogrid

5. Enhance earth slope and prevent water loss and soil erosion.

6. Decrease underlayer thickness and save manufacturing cost.

7. Enhance the stability of side slope turf net patch to improve greening.

8. Replace wire netting used in mine as intermediate ceiling netting.

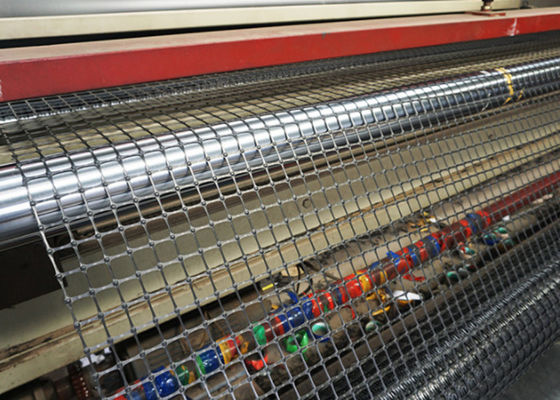

Workshop
