Durable Geocell Confinement System

A Durable Environmental Protection Geotechnical Material Geocell Confinement System

Brief Introduction of  Geocell Confinement System

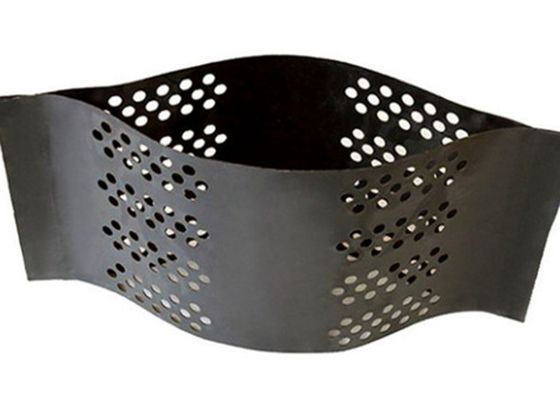

Geocell is a kind of three-dimensional reticulated cell structure, which is made of REINFORCED HDPE sheet material and welded by high-speed welding. Generally by ultrasonic needle welding. Due to engineering needs, some holes are drilled on the diaphragm. It can stretch freely, shrink and fold when transporting, open and fill with earth rock or concrete material when in use, forming a structure with strong lateral restriction and large stiffness. It can be used as cushion to treat soft foundation and increase the bearing capacity of foundation. It can also be laid on the slope to form slope protection structure, and can also be used to build retaining structure.

Geocell Confinement System Specification

1.Cell depth: 50mm,100mm,150mm,200mm,250mm,300mm
2. Welding distance: 330mm~1600mm
3. Thickness: 1.0mm,1.2mm(smooth), 1.5mm,1.8mm(textured)
4. Appearance/surface: smooth/textured

Geocell Confinement System Advantage

1,Virgin HDPE basic with Unique Formula.

2,Various weld spacing available from 330mm to 1600mm
4,Various strip height available from 50mm to maximum 300mm
5,Maximum strip length reaches 8m, expanded width reaches 6m.
6,Reduce construction cost, improve load and bearing capacity, long life span, save maintenance cost
7,Easy to transport, all weather installation with high construction speed.
8,Local infill materials available, ungraded or recycled materials are acceptable, reduce construction cost.

Geocell Confinement System Construction site

The fixed anchor rod position of geocell should be located above the diagonal of the cell to ensure that the weight of the cell can be transferred to the anchor rod. In the area with larger slope, the density of fixed anchor can be increased as appropriate. In order to prevent the occurrence of landslide. The construction season of geocell should also be spring and autumn to avoid rain season. The cells need to be completely connected with each other to make the cells connected as a whole and increase the stability of the slope.

Usage of Geocell Confinement System:

On the basis of treatment, we generally use slope protection geocell, we use more good subgrade, and the poor subgrade strengthens us to extend the service life. Especially in desert areas or Frozen Subgrade plateau. Today, geocell manufacturers will show us the use of geocell in the reinforcement of silt subgrade
