Material Surface Smooth Hdpe Geocell Welding Space 330mm ~ 1600mm

HDPE Smooth/Textured Perforated Geocell

Smooth Textured Perforated Plastic HDPE Geocell Black Green Sand Color

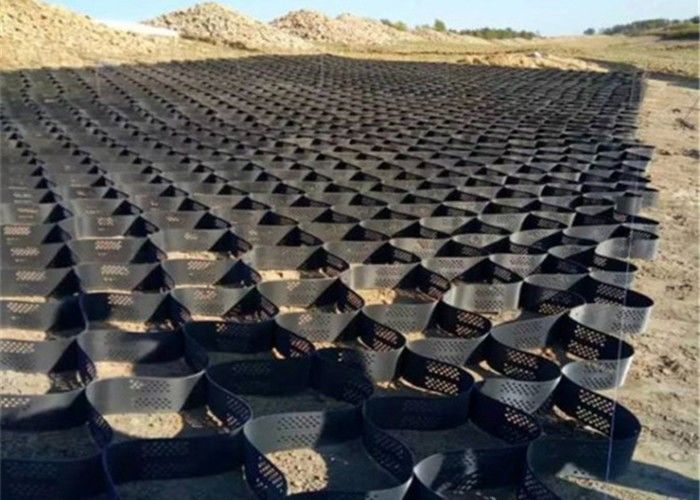

ELTcell Geocell is a lightweight and flexible three-dimensional,expandable panels made from high-density polyethylene(HDPE) strips which are ultrasonically bonded together to form an extremely strong configuration.Geocell system can be filled with a wide range of material: aggregate,concrete,sand,soil,etc

Product features:

1,Virgin HDPE basic with Unique Formula.
2,Tensile Strength reaches 33000 kN/m² (33 MPa)
3,Seam Peel Strength above 16 kN/m (USACE GL-86-19); Split Strength above 28 kN/m (EN ISO13426-1 Method C).
4,Various weld spacing available from 220mm to 1600mm
5,Various strip height available from 25mm to maximum 300mm
6,Maximum strip length reaches 8m, expanded width reaches 6m.
7,Reduce construction thickness, improve load and bearing capacity, long life span, save maintenance cost
8,Easy to transport, all weather installation with high construction speed.
9,Local infill materials available, ungraded or recycled materials are acceptable, reduce construction cost.

Application:

It is mainly used for
1.foundation reinforcement(gruound stabilisation:)
2.soft foundation treatment,

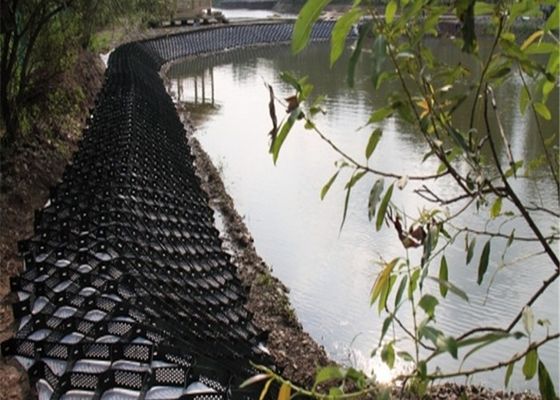

3.steep slope protection,
4.landslide prevention,
5.load-bearing mixed retaining wall.
6.It is especially suitable for weathering forests, sand streams and marshes.
