Place of Origin: | China |
Brand Name: | Hengquan |
Certification: | CE |
Model Number: | HQ-008 |
Minimum Order Quantity: | 50sets |
---|---|
Price: | 3.9-5.0$ |
Packaging Details: | plastic film + metal/wooden pallet or export standard, or as your request, etc. |
Delivery Time: | 5-8days |
Payment Terms: | T/T, L/C, D/A, Western Union, MoneyGram |
Supply Ability: | 5000 sets per week |
Material: | Iron Wire | Application: | Gabions |
---|---|---|---|
Wire Gauge: | 3.7mm | Surface Treatment: | PVC Coated |
Length: | 2 M | Height: | 1m |
MOQ: | 50sets | Packing: | In Bundle Or As Yours |
Usage: | Stone Cage | Color: | Green Grey And Black |
High Light: | Galvanized Gabion Wire Mesh,3.7mm Gabion Wire Mesh,Galvanized Decorative Gabion Baskets |
Wire Diameter 2.2mm-3.4mm Zinc Coating More Than 270g Galvanized Gabion Wire Mesh

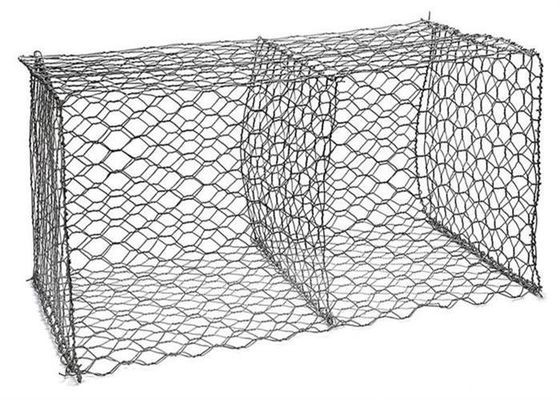

Gabion wire mesh intruduction
Hexagonal Wire Netting Gabions are wire containers made of hexagonal wire netting. Wire diameter varies with the hexagonal nettings. For hexagonal wire netting with no pvc coating, the wire diameter ranges from 2.0mm to 4.0mm. For those PVC coated hexagonal wire netting, the outside diameter ranges from 3.0mm to 4.0mm. The wire of the outside frame edge is one wire gauge thicker than the wire used for hexagonal wire netting.
Gabion wire mesh material
Galvanized steel wire
Zinc 5% Aluminum wire
Coated galvanized steel wire
low carbon steel wire,
Type 1 | Weave Gabion baskets |
Material | galvanized wire ,galfan wire and PVC coated wire , |
Gabion mesh wire | 2.2mm,2.4mm,2.7mm,3.2mm,3.4mm,4mm |
Gabion selvedge wire | 2.4mm,2.7mm,3mm,3.4mm,4mm |
Gabion lacing wire | normally 2.2mm |
Gabion box mesh hole | 6*8cm,8*10cm,10*12cm,12*15cm |
Zinc coating | 40-260g/m2 |
Gabion box PVC color | darkgree, gray ,black , etc. |
Type 2 | Welded gabion box |
Finishing | heavy duty galvanized or galfan galvanized |
Surface treatment | electro galvanized, hot-dipped galvanized, pvc coated, stainless steel |
Wire diameter | 2.7--5mm |
Mesh size/opening | 37.5x75mm, 50x50mm, 75x75mm, 100x50mm, 100x100mm |
Zinc coating | 40-290g/mm2 |
Gabion wire mesh features
1.Economic. Just fill the stone into the gabions and seal it. 2.Simple installation. No special technology needed. |
Gabion wire mesh applications
1.Control and guide of water or flood 2.Flood bank or guiding bank 3.Preventing of rock breaking 4.Water and soil protection 5.Bridge protection 6.Strengthening structure of soil 7.Protection engineering of seaside area |
FAQ
Q1. What is the advantage about your company?
A1. Our company has professional team and professional production line.
Q2. Why should I choose your products?
A2. Our products are high quality and low price.
Q3. The logo and the color can be customized?
A3. Yes, we welcome you to sample custom
