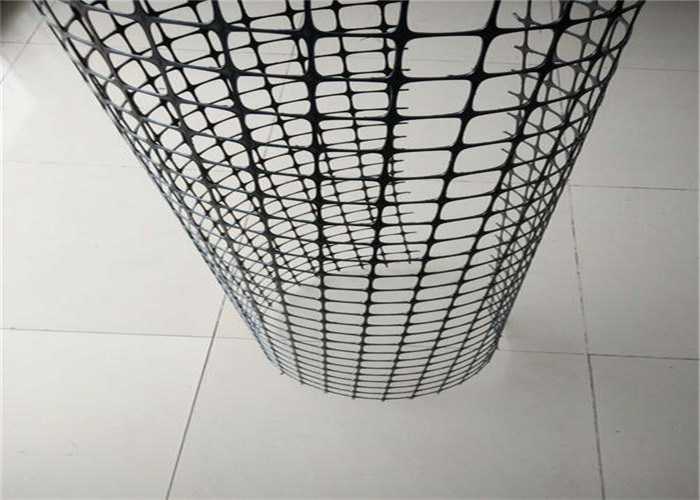

High Strength Polypropylene 15KN/m Plastic Geogrid Mesh

Product Details:

Place of Origin:	Anping . China
Brand Name:	China
Certification:	ISO 9001
Model Number:	TGSG15,TGSG20,TGSG25,TGSG30,TGSG35,TGSG40,TGSG45,TGSG50

Payment & Shipping Terms:

Minimum Order Quantity:	1000m2
Price:	Deliberation
Packaging Details:	packing belt
Delivery Time:	5-8 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	40000M2 per week

Contact Now

Detailed Product Description

Material:	Polypropylene	Width:	3.9 Meters Or 5.9 Meters
Length:	50 Meters	Tensile Strength:	TGSG 25-25KN
Mesh Hoe:	32*32mm	Color:	Black, Gray, Green
Feature:	High Tension Resistance	Applications:	Convenient To Construct
High Light:	15KN/M Plastic Geogrid Mesh , Polypropylene Plastic Geogrid Mesh , 15KN/M Biaxial Plastic Geogrid

Increase Soft Soils Under Embankments And Road Life Span High Strength Polypropylene Biaxial Plastic Geogrid

Biaxial Plastic Geogrid Introduction

Biaxial geogrid is made of high molecular polymer after extruded and laminated and punched into regular mesh before longitudinal stretching.The material on the longitudinal and transverse has great tensile strength, this kind of structure in the soil can also provide a more effectively undertake the chain and the spread of the thought system, suitable for large area of permanent bearing foundation reinforcement.

Biaxial Plastic Geogrid Specification

project	TGSG15-15	TGSG20-20	TGSG25-25	TGSG30-30	TGSG40-40	TGSG45-45	TGSG50-50
Longitudinal tensile yield force KN/m	15	20	25	30	40	45	50
Transverse tensile yield force KN/m	15	20	25	30	40	45	50
Tensile Strength @2% Strain KN/m	5	7	9	10.5	14	16	17.5
Tensile Strength @5% Strain KN/m	7	14	17	21	28	32	35
Roll width	3.95 or 5.95 meters
Roll Length	50 meters
Feature	1. It can decrease 30%-40% of filling thickness for reaching same effect, save cost. 2. Convenient construction, saving effort, shortening construction period and reducing maintenance cost. 3. Strengthen soil slopes to prevent soil erosion. 4. Can replace metal mesh, used in coal mine underground false roof

Biaxial Plastic Geogrid Precautions

1. The turning or braking of vehicles on the geotextile should be avoided as far as possible, especially when paving the asphalt surface course, any sharp turning or car killing sliding may bring up or damage the geotextile.
2. Construction under rainy, humid or cold weather conditions will affect the bonding strength and overlay effect of the coating.
3. Traffic must be closed during laying. Except for construction vehicles, other vehicles are allowed to pass through the geotextile only in case of emergency.
4. If there is slippage of paver when paving hot mix asphalt mixture, a small amount of stone chips can be sprinkled on the surface of tack coat oil.
Generally speaking, when we master the construction points of geotextile skillfully, we can make it play a greater economic benefit and make greater contribution to our urban construction.

Biaxial Plastic Geogrid Function

1. It can be applied in all kinds of roads, railways, airports to enhance the roadbed.

2. It can be applied in a large car park and terminal freight yard, etc. to strengthen the foundations of a permanent load;

3. It can be applied in rail, road slope's protection

Workshop

High Strength Polypropylene 15KN/m Plastic Geogrid Mesh 0
