Fiberglass Mesh Polypropylene Geogrid For Asphalt Reinforcement Pavement Driveway

Fiberglass Mesh Polypropylene Geogrid For Asphalt Reinforcement Pavement Driveway

  • Fiberglass Mesh Polypropylene Geogrid For Asphalt Reinforcement Pavement Driveway
  • Fiberglass Mesh Polypropylene Geogrid For Asphalt Reinforcement Pavement Driveway
Fiberglass Mesh Polypropylene Geogrid For Asphalt Reinforcement Pavement Driveway
Product Details:
Place of Origin: China
Brand Name: HENGQUAN
Certification: CE /ISO9001
Model Number: Z01
Payment & Shipping Terms:
Minimum Order Quantity: 5000 sqm
Price: 0.46usd/㎡
Packaging Details: PP Bags
Delivery Time: 5 days after 100% payment
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 10,000 squre meters per week
Contact Now
Detailed Product Description
Warranty: More Than 5 Years Raw Material: Glass Fiber Coated Bitumen
Width: 2m-8m Roll Length: 50/100m
Certificate: CE /ISO9001 Tensile Strength: 20KN
After-sale Service: Onsite Installation, Onsite Inspection, Return And Replacem Application: Pavement Reinforcement, Road Pavement Reinforcement
Color: Black MESH SIZE: 12.7*12.7mm/ 25.4*25.4mm/ 50.8*50.8mm
High Light:

fiberglass mesh polypropylene geogrid

,

driveway polypropylene geogrid

,

driveway pp biaxial geogrid

High Quality manufacturer biaxial plastic fiberglass mesh geogrid for Asphalt reinforecement pavement driveway



Introduction: Biaxial geogrid, made of high molecular polymer, is extruded into sheet and then punched into regular mesh pattern,
and finally stretched in longitudinal and transverse directions.



Features:

1. With high tensile strength in longitudinal and transverse directions
2.This structure can provide an chain system of more effective force bearing and spreading for the soil.

High Quality biaxial Plastic geogrid roll Driveway



geogrid coated bitumen 100-100kN/m



Feature:



1) High tensile strength at both longitudinal and transverse direction

2) Improving bearing capacity of foundation

3) Preventing cracking and subsiding

4) Convenient to construct, reducing cost and maintaining expense

Tensile strength(MD/CD)



Biaxial geogrid is used to reinforce the weak foundation the geogrid can quickly improve the bearing capacity of the foundation and control the development of the settlement. The lateral effect of the road base can effectively distribute the load to the wider basement layer, thus reducing the thickness of the base layer and reducing the engineering Cost, shorten the construction period, extend the service life.

Biaxial geogrid for reinforced asphalt or cement pavement Geogrid laying in the bottom of the asphalt or cement pavement, can reduce the rutting depth, extend the road surface fatigue life, but also can reduce the thickness of asphalt or cement pavement to save costs.

For the reinforcement of the embankment dam slope and the retaining wall the traditional embankment, especially the high embankment filling often need to fill and the edge of the shoulder is not easy to compaction, resulting in the late slope of the rain soaking.

Used to strengthen the river seawall can be made of stone cage, and then with the grid and use, to prevent the dam was washed away by sea water, stone cage with permeability, can slow down the impact of the waves to extend the life of the dam, saving manpower and material resources, shorten the duration.

Used to deal with landfill



Geogrid and other soil synthetic materials used in combination with landfill, can effectively solve the problem of uneven settlement of the foundation, the release of gas emissions and other issues, and can maximize the storage capacity of landfill.







Tensile Warp ≥30 ≥50 ≥60 ≥80 ≥100 ≥120 ≥150
Strength
(KN) Weft ≥30 ≥50 ≥60 ≥80 ≥100 ≥120 ≥150
Elogation Fiberglass <4 % 4 % 4 % 4 % 4 % 4 % 4 %
Polyester <13% 13% 13% 13% 13% 13% 13%
Mesh size(mm) 12.7×12.7 12.7×12.7 12.7×12.7 12.7×12.7 12.7×12.7 12.7×12.7 12.7×12.7
25.4×25.4 25.4×25.4 25.4×25.4 25.4×25.4 25.4×25.4 25.4×25.4 25.4×25.4
42×42 42×42 42×42 42×42 42×42 42×42 42×42
50×50 50×50 50×50 50×50 50×50 50×50 50×50
Elastic Modulus 76 76 76 76 76 76 76
(Fiberglass)
Width(m) 1~6 1~6 1~6 1~6 1~6 1~6 1~6
Length(m) 50~300 50~300 50~300 50~300 50~300 50~300 50~300
Temperature Fiberglass -100~280 -100~280 -100~280 -100~280 -100~280 -100~280 -100~280
Resistant (°C) Polyester -100~280 -100~280 -100~280 -100~280 -100~280 -100~280 -100~280
Resin Fiberglass 18~20 18~20 18~20 18~20 18~20 18~20 18~20
Content (%) polyester ≤30% ≤30% ≤30% ≤30% ≤30% ≤30% ≤30%



Package
Packed in woven geotextile and strength belt or PE film Or packed according to customers' requirements such as mark the company Logo (Export standard package).

Packaging size and container capacity vary according to product specifications.

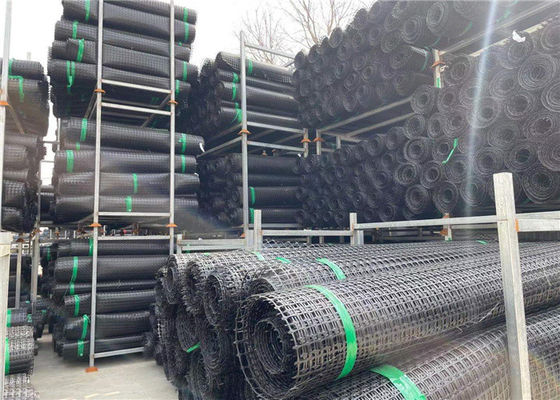

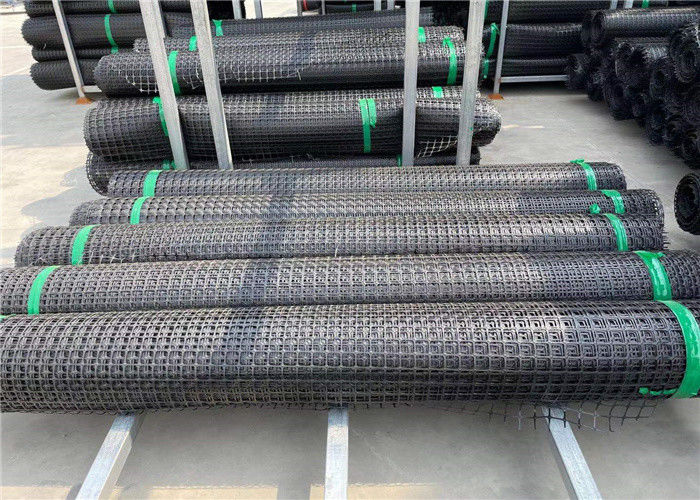

Fiberglass Mesh Polypropylene Geogrid For Asphalt Reinforcement Pavement Driveway 1Fiberglass Mesh Polypropylene Geogrid For Asphalt Reinforcement Pavement Driveway 2Fiberglass Mesh Polypropylene Geogrid For Asphalt Reinforcement Pavement Driveway 3







We offer:

1) Good quality control, conform to ISO/CE/ASTM standards.

2) Highly competitive factory prices.

3) Smooth communication and quick response.

4) Effective OEM service.
