Thickness 1.0 -1.2 Mm Hdpe Geotextile Farmhouse Geocell

HDPE geocell geotextile for slope protection

1) Introduction

Geocell is also called "cellular confinement systems" academically .It is widely used in construction for erosion control, soil stabilization on flat ground and steep slopes, channel protection, and structural reinforcement for load support and earth retention.Typical cellular confinement systems are geosynthetics made with ultrasonically welded high-density polyethylene (HDPE) strips or PP and expanded on-site to form a honeycomb-like structure—and filled with sand, soil, rock, gravel or concrete.
Geocell strip widths, hence the on-site height, come in various sizes from 50 to 300 mm.
Geocell walls are usually made from textured or structured polymer sheet so as to increase frictional resistance against the infill soil from displacement.


1. Light weight, wear-resistant, chemical stability, light oxidation aging, anti-acid/alkali corrosion, applied to different geological conditions, such as saline soil, desert, etc.
2. Wide temperature range, high tensile strength, good rigidity and toughness, good load capacity and anti-erosion ability.
3. Size is relatively stable, change the height and welding distance can meet the needs of different projects.
4. Retractile, easy to transport.
5. Easy to use, can use the local materials and achieve rapid construction, reduce construction costs.

2) Application

Roadway load support

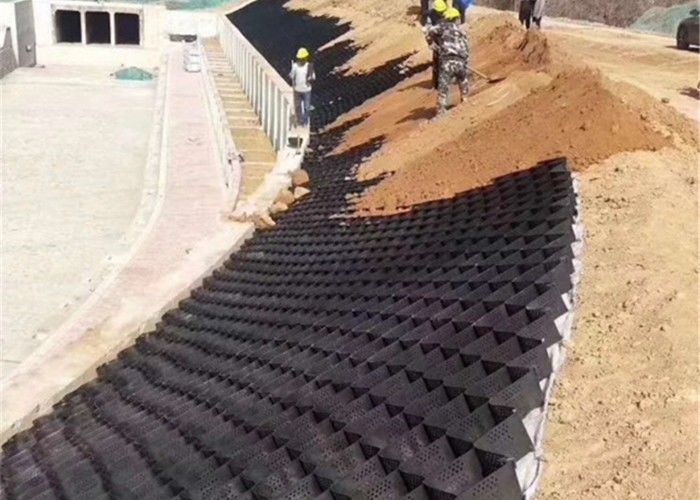

Steep soil slope and channel protection
Earth retention
Reservoirs and landfills
Sustainable construction
