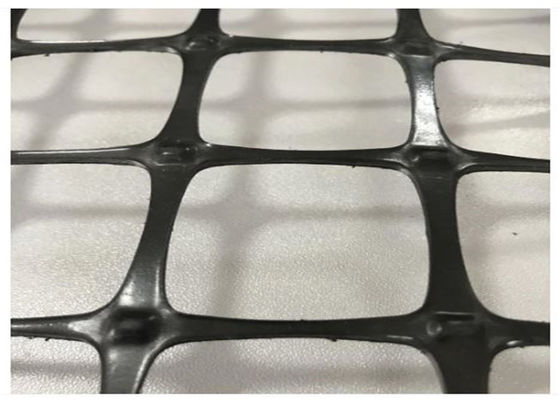

Name: Biaxial Mesh Bitumen Coating Plastic Geogrid For Driveway
Brand: HENGQUAN
SKU: Z01
Price: 0.46 USD
Availability: InStock
Rating: 4.7 (107 reviews)

Home Products Biaxial Plastic Geogrid

Biaxial Mesh Bitumen Coating Plastic Geogrid For Driveway

Product Details:

Place of Origin:	China
Brand Name:	HENGQUAN
Certification:	CE /ISO9001
Model Number:	Z01

Payment & Shipping Terms:

Minimum Order Quantity:	5000 sqm
Price:	0.46usd/㎡
Packaging Details:	PP Bags
Delivery Time:	5 days after 100% payment
Payment Terms:	T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability:	10,000 squre meters per week

Contact Now

Detailed Product Description

Coating:	Bitumen	Raw Material:	HDPE Plastic
Width:	2m-8m	Roll Length:	50-100m
Certificate:	CE/ISO9001 ISO14001	Tensile Strength:	30-200kN/m
After-sale Service:	Onsite Installation, Onsite Inspection, Return And Replacem	Application:	Road， Road Railway Construction
Design Style:	Industrial	MESH SIZE:	12.712.7mm. 25.425.4mm
Type:	Geogrids
High Light:	bitumen coating plastic geogrid , driveway plastic geogrid , driveway biaxial plastic geogrid

Earthwork Products Fiberglass Geogrid prices for reinforcement

Product Introduction

Glass fiber grid is the abbreviation of glass fiber geogrid. Selection of high quality enhanced alkali free glass fiber yarn, woven into a substrate using foreign advanced warp knitting, the warp directional structure, make full use of fabric and yarn strength, improve its mechanical properties, so it has good tensile strength, tear strength and creep resistance of the plane network like material, and through high quality modified asphalt coating and into the.


fast and an all-weather installation solution

construction of cost effective

Solutions for slope protection

Ability to reinforce any soil type

Low creep under constant load

High modulus

Easy to install

High pull out resistance

Excellent survivability to construction stresses

Excellent soil-to-soil and aggregate-to-aggregate contact through large grid openings.

Index Properties	Units	MD Values	XMD Values
Aperture Dimensions	mm (in)	38 (1.5)	38 (1.5)
Minimum Rib Thickness	mm (in)	1.1 (0.04)	0.8 (0.03)
Tensile Strength @ 2% Strain	kN/m (lb/ft)	6.5 (450)	6.5 (450)
Tensile Strength @ 5% Strain	kN/m (lb/ft)	13 (890)	13 (890)
Ultimate Tensile Strength	kN/m (lb/ft)	20 (1370)	20 (1370)
Structural Integrity
Junction Efficiency	%	93
Overall Flexural Rigidity	mg-cm	700,000
Aperture Stability	m-N/deg	0.45
Durability
Resistance to Installation Damage	%SC / %SW / %GP	95 / 93 / 90
Resistance to Long Term Degradation	%	100
Resistance to UV Degradation	%	100

Spec		EGA 30-30	EGA 50-50	EGA 80-80	EGA 100-100	EGA 120-120	EGA 150-150	EGA 200-200	EGA 300-300
Mesh size (mm)		25.4x25.4 or 12.5x12.5 or 50.8x50.8
Breaking strength ≥(kN/m)	warp direction	30	50	80	100	120	150	200	300
	across warp	30	50	80	100	120	150	200	300
	warp direction	3
	across warp	3
Thernal tolerance(℃)		-100~280
Width(m)		2/2.5/3.95/5.95 m
