| Place of Origin: | China |
| Brand Name: | HENGQUAN |
| Certification: | CE /ISO9001 |
| Model Number: | Z01 |
| Minimum Order Quantity: | 5000 sqm |
|---|---|
| Price: | 0.46usd/㎡ |
| Packaging Details: | PP Bags |
| Delivery Time: | 5 days after 100% payment |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 10,000 squre meters per week |
| Function: | To Increase Stability Of Fundus | Raw Material: | PP Polypropylene Plastic High Molecular Polymer |
|---|---|---|---|
| Elongation: | Longitudinal Elongation≤15%;transverse Elongation≤13% | Roll Length: | 50m/customer Requirement |
| Certificate: | ISO/CE/Railway Certification(CRCC)/safety Marks For Mining | Tensile Strength: | 15Kn/m--50Kn/m/15-50KN/m |
| After-sale Service: | Onsite Installation, Onsite Inspection, Return And Replacem | Application: | Road， Road Railway Construction |
| Design Style: | Industrial | Color: | Black, Green, Orange, Grey |
| High Light: | 50m biaxial plastic geogrid,extruded biaxial plastic geogrid,civil reinforcement projects pp biaxial geogrid |
||
PP Biaxial extruded geogrid for road civil reinforcement projects
PP Biaxial Extruded Geogrid for road civil projects BX2020 BX3030BX4040BX5050

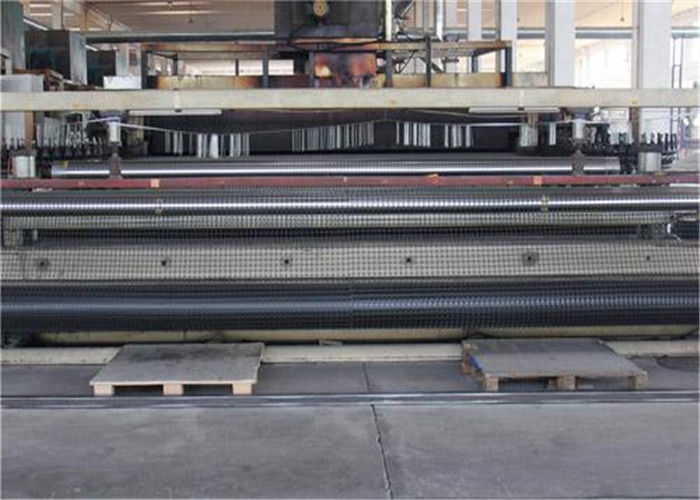

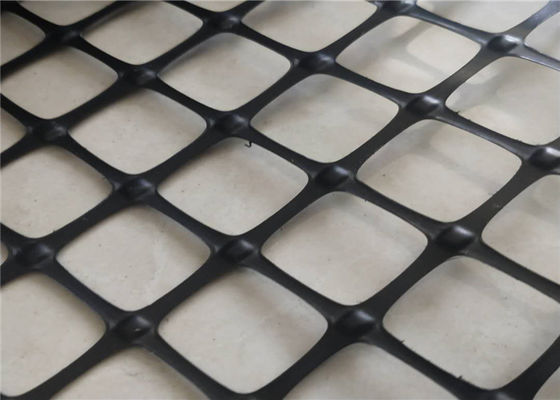

PP Biaxial geogrid, made of high molecular polypropylene, is extruded into sheet and then punched into regular mesh pattern, and finally
stretched in longitudinal and transverse directions.
PP Biaxial Gegrid / Reinforcement Biaxial Geogrid
Reinforcement Biaxial Geogrid
Applications:
Make reinforce treatment for various kinds of soft soil foundation to evenly distribute load stress and reduce uneven settlement,
not easy to generate static electricity, and flammability property good in the coal mine. It is easy to wash coal.
Used in highway, railway, port, airport and municipal project. Support in the recovery working face of coal mine and roadway in
the coal mine.
• High Tear Strength
• Flexible and durable
• Excellent Creep Resistance
• UV resistance
• Cost effective
• High chemical and biological resistance
• High Tensile Strength and Low Elgongation
• Optimun stability of the junction strength of the grid
• Increased pull-out resistance and compound strength
• High resistance to installation damage and ease of installation
Index for PPBG20-20 | Test method | Units | MD values | TD values |
Polymer | - | - | PP | - |
Minimum carbon black | ASTM D4218 | % | 2 | - |
Tensile strength @ 2% Strain | ASTM D6637 | kN/m | 7 | 7 |
Tensile strength @ 5% Strain | ASTM D6637 | kN/m | 14 | 14 |
Ultimate Tensile Strength | ASTM D6637 | kN/m | 20 | 20 |
Strain @ Ultimate Strength | ASTM D6637 | % | 13 | 13 |
Structural Integrity | ||||
Junction Efficiency | GRI GG2 | % | 90 | 90 |
Overall Flexural Rigidity | ASTM D1388 | mg-cm | 1,090,000 | |
Aperture Stability | COE Method | mm-N/deg | 707 | |
Dimension | ||||
Aperture Dimensions | - | mm | 38 | 36 |
Minimum Rib Thickness | ASTM D1777 | mm | 1.3 | 1.0 |
Roll width | m | 3.95 | ||
Roll Length | 50 |
Index Properties | Units | MD Values | XMD Values |
Aperture Dimensions | mm (in) | 38 (1.5) | 38 (1.5) |
Minimum Rib Thickness | mm (in) | 1.1 (0.04) | 0.8 (0.03) |
Tensile Strength @ 2% Strain | kN/m (lb/ft) | 6.5 (450) | 6.5 (450) |
Tensile Strength @ 5% Strain | kN/m (lb/ft) | 13 (890) | 13 (890) |
Ultimate Tensile Strength | kN/m (lb/ft) | 20 (1370) | 20 (1370) |
Structural Integrity | |||
Junction Efficiency | % | 93 | |
Overall Flexural Rigidity | mg-cm | 700,000 | |
Aperture Stability | m-N/deg | 0.45 | |
Durability | |||
Resistance to Installation Damage | %SC / %SW / %GP | 95 / 93 / 90 | |
Resistance to Long Term Degradation | % | 100 | |
Resistance to UV Degradation | % | 100 | |
PP Biaxial Geogrid | Width (M) | Length (M) | Quantity per 40`HQ (M2) |
PPBG 15-15 | 3.95 | 50 | 52140 (264 rolls) |
PPBG 20-20 | 3.95 | 50 | 41475 (210 rolls) |
PPBG 25-25 | 3.95 | 50 | 33180 (168 rolls) |
PPBG 30-30 | 3.95 | 50 | 24885 (126 rolls) |
PPBG 40-40 | 3.95 | 50 | 16590 (84 rolls) |
Q1 : Are you trade company or manufacturer?
A1: We are manufacturer with trade teams, doing both domestic and abroad business.
Q2: What's your payment term ?
A2: We accept T/T, L /C, D/P, Western Union, Alibaba Trade Assurance.
Q3:Can you do OEM ?
A3: Yes, of course. We can produce it as per your request.
Q4: How long is your delivery time?
A4: Generally, cargos will be delivered within 5-10 days after receiving your payment if the cargos are in stock. If not, it depends on quantity. Please make sure with Ms Jenessa.
Q5: Do you provide samples? Is it for free?
A5: Yes, A4 size sample or smaller size is availavle in free cost, but the shipping cost shall be at your charge.
