Anping County Hengquan Metal Wire Mesh Products Co.,Ltd
geogrids, geotextiles, geocells, geomembrane, chain link fence , welded wire mesh panel, hexagonal wire netting
 |
| Place of Origin: | China |
| Brand Name: | HENGQUAN |
| Certification: | CE /ISO9001 |
| Model Number: | Z01 |
| Minimum Order Quantity: | 5000 sqm |
|---|---|
| Price: | 0.46usd/㎡ |
| Packaging Details: | PP Bags |
| Delivery Time: | 5 days after 100% payment |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 10,000 squre meters per week |
| Coating: | Bitumen | Raw Material: | Glass Fibre |
|---|---|---|---|
| Width: | 2m,4m | Roll Length: | 50m/customer Requirement |
| Certificate: | CE/ISO9001 ISO14001 | Tensile Strength: | 25-100 KN/m |
| After-sale Service: | Onsite Installation, Onsite Inspection, Return And Replacem | Application: | Road， Road Railway Construction |
| Design Style: | Industrial | MESH SIZE: | 12.7*12.7mm. 25.4*25.4mm |
| High Light: | 25kn fiberglass geogrid,coated bitumen fiberglass geogrid,100kn fibreglass geogrids |
||

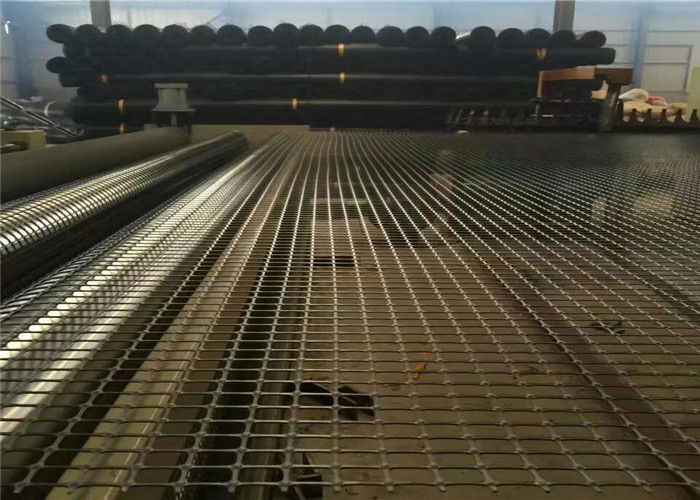

25-100kN glass fiber asphalt geogrid high tensile fiberglass geogrid coated bitumen grid
APPLICATION
1) It reinforces old asphalt concrete road surface and asphalt surface layer, and prevents damage.
2) It is used in road expansion and improvement project and prevents crack caused by old and new combination position and uneven sedimentation.
3) It is used in soft soil base reinforcement treatment, is favorable for soft soil water separation and concretion, restrains sedimentation effectively, distributes stress uniformly and improves overall strength of road base.
4) It is used for preventing contraction crack caused by new road semi-rigid base layer, and reinforces and prevents road surface crack cause by foundation crack reflection.
Index for PPBG20-20 | Test method | Units | MD values | TD values |
Polymer | - | - | PP | - |
Minimum carbon black | ASTM D4218 | % | 2 | - |
Tensile strength @ 2% Strain | ASTM D6637 | kN/m | 7 | 7 |
Tensile strength @ 5% Strain | ASTM D6637 | kN/m | 14 | 14 |
Ultimate Tensile Strength | ASTM D6637 | kN/m | 20 | 20 |
Strain @ Ultimate Strength | ASTM D6637 | % | 13 | 13 |
Structural Integrity | ||||
Junction Efficiency | GRI GG2 | % | 90 | 90 |
Overall Flexural Rigidity | ASTM D1388 | mg-cm | 1,090,000 | |
Aperture Stability | COE Method | mm-N/deg | 707 | |
Dimension | ||||
Aperture Dimensions | - | mm | 38 | 36 |
Minimum Rib Thickness | ASTM D1777 | mm | 1.3 | 1.0 |
Roll width | m | 3.95 | ||
Roll Length | 50 |
Index Properties | Units | MD Values | XMD Values |
Aperture Dimensions | mm (in) | 38 (1.5) | 38 (1.5) |
Minimum Rib Thickness | mm (in) | 1.1 (0.04) | 0.8 (0.03) |
Tensile Strength @ 2% Strain | kN/m (lb/ft) | 6.5 (450) | 6.5 (450) |
Tensile Strength @ 5% Strain | kN/m (lb/ft) | 13 (890) | 13 (890) |
Ultimate Tensile Strength | kN/m (lb/ft) | 20 (1370) | 20 (1370) |
Structural Integrity | |||
Junction Efficiency | % | 93 | |
Overall Flexural Rigidity | mg-cm | 700,000 | |
Aperture Stability | m-N/deg | 0.45 | |
Durability | |||
Resistance to Installation Damage | %SC / %SW / %GP | 95 / 93 / 90 | |
Resistance to Long Term Degradation | % | 100 | |
Resistance to UV Degradation | % | 100 | |

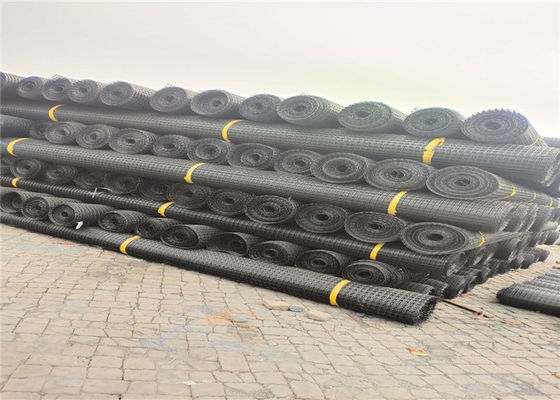

PP Biaxial Geogrid | Width (M) | Length (M) | Quantity per 40`HQ (M2) |
PPBG 15-15 | 3.95 | 50 | 52140 (264 rolls) |
PPBG 20-20 | 3.95 | 50 | 41475 (210 rolls) |
PPBG 25-25 | 3.95 | 50 | 33180 (168 rolls) |
PPBG 30-30 | 3.95 | 50 | 24885 (126 rolls) |
PPBG 40-40 | 3.95 | 50 | 16590 (84 rolls) |
Q1 : Are you trade company or manufacturer?
A1: We are manufacturer with trade teams, doing both domestic and abroad business.
Q2: What's your payment term ?
A2: We accept T/T, L /C, D/P, Western Union, Alibaba Trade Assurance.
Q3:Can you do OEM ?
A3: Yes, of course. We can produce it as per your request.
Q4: How long is your delivery time?
A4: Generally, cargos will be delivered within 5-10 days after receiving your payment if the cargos are in stock. If not, it depends on quantity. Please make sure with Ms Jenessa.
Q5: Do you provide samples? Is it for free?
A5: Yes, A4 size sample or smaller size is availavle in free cost, but the shipping cost shall be at your charge.
