Name: 60kn Biaxial Glass Fiber Geogrid For Soil Reinforcement
Brand: HENGQUAN
SKU: Z01
Price: 0.46 USD
Availability: InStock
Rating: 4.7 (126 reviews)

Home Products Biaxial Plastic Geogrid

60kn Biaxial Glass Fiber Geogrid For Soil Reinforcement

Product Details:

Place of Origin:	China
Brand Name:	HENGQUAN
Certification:	CE /ISO9001
Model Number:	Z01

Payment & Shipping Terms:

Minimum Order Quantity:	5000 sqm
Price:	0.46usd/㎡
Packaging Details:	PP Bags
Delivery Time:	5 days after 100% payment
Payment Terms:	T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability:	10,000 squre meters per week

Contact Now

Detailed Product Description

Coating:	Bitumen	Raw Material:	HDPE Plastic
Width:	2m-8m	Roll Length:	50-100m
Certificate:	CE/ISO9001 ISO14001	Tensile Strength:	30-200kN/m
After-sale Service:	Onsite Installation, Onsite Inspection, Return And Replacem	Application:	Road， Road Railway Construction
Design Style:	Industrial	MESH SIZE:	12.712.7mm. 25.425.4mm
High Light:	60kn glass fiber geogrid , biaxial glass fiber geogrid , soil reinforcement fiberglass geogrid

60kN Fiberglass Biaxial Geogrid Price Fiber Glass Geogrid For Soil Reinforcement

Introduction

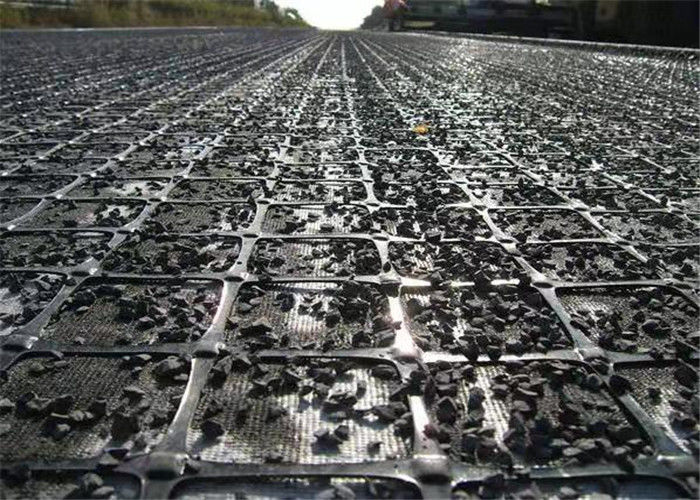

Lin Yuan fiberglass geogrid is knitted by glass fiber filaments and coated with bitumen to provide

a good bond with the asphalt layers, can strengthen the asphalt layer, extend the service life of pavement layers and decrease the occurrence rate of reflective cracking under cyclic traffic load.

Suitable for all kinds of dam and roadbed reinforcement, slope protection,The cave walls reinforcement, Large airport, parking lot, wharf freight yard and other permanent bearing foundation reinforcement.
1.Increase road (ground) base bearing capacity and prolong the service life of road (ground).
2.Prevent road (ground) surface collapse or crack, ground is beautiful and tidy.
3.Construction is convenient, save time, effort, and shorten the construction period, reduce maintenance costs.
4.Prevent culvert crack.
5.Enhance soil, prevent soil erosion.
6.Reducing cushion thickness, saving the cost.
7.To support the stability of slope planting grass mat afforest environment.
8.Can replace the metal mesh, used in coal mine underground false roof net.

Index Properties	Units	MD Values	XMD Values
Aperture Dimensions	mm (in)	38 (1.5)	38 (1.5)
Minimum Rib Thickness	mm (in)	1.1 (0.04)	0.8 (0.03)
Tensile Strength @ 2% Strain	kN/m (lb/ft)	6.5 (450)	6.5 (450)
Tensile Strength @ 5% Strain	kN/m (lb/ft)	13 (890)	13 (890)
Ultimate Tensile Strength	kN/m (lb/ft)	20 (1370)	20 (1370)
Structural Integrity
Junction Efficiency	%	93
Overall Flexural Rigidity	mg-cm	700,000
Aperture Stability	m-N/deg	0.45
Durability
Resistance to Installation Damage	%SC / %SW / %GP	95 / 93 / 90
Resistance to Long Term Degradation	%	100
Resistance to UV Degradation	%	100

Spec		EGA 30-30	EGA 50-50	EGA 80-80	EGA 100-100	EGA 120-120	EGA 150-150	EGA 200-200	EGA 300-300
Mesh size (mm)		25.4x25.4 or 12.5x12.5 or 50.8x50.8
Breaking strength ≥(kN/m)	warp direction	30	50	80	100	120	150	200	300
	across warp	30	50	80	100	120	150	200	300
	warp direction	3
	across warp	3
Thernal tolerance(℃)		-100~280
Width(m)		2/2.5/3.95/5.95 m

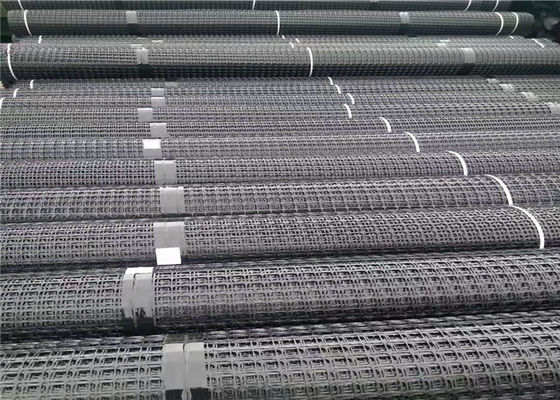

Packed in woven geotextile and strength belt or PE film Or packed according to customers' requirements such as mark the company Logo (Export standard package).

Packaging size and container capacity vary according to product specifications.

60kn Biaxial Glass Fiber Geogrid For Soil Reinforcement 0
