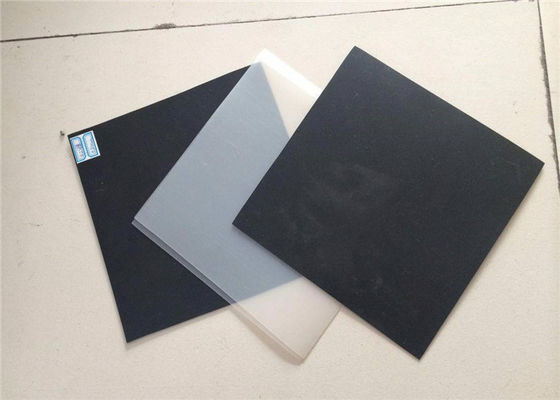

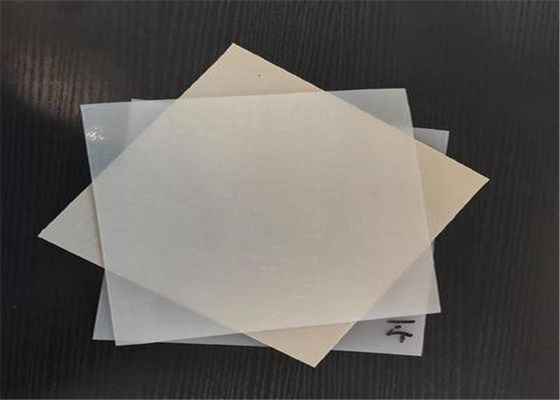

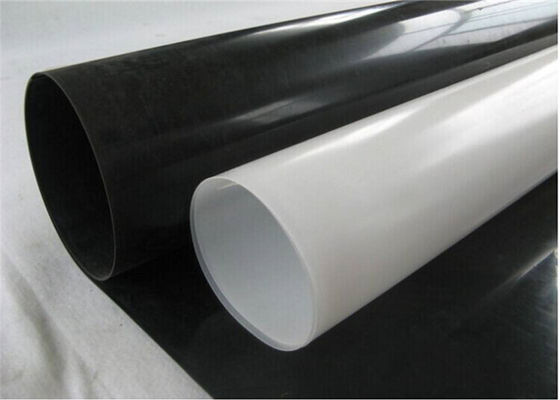

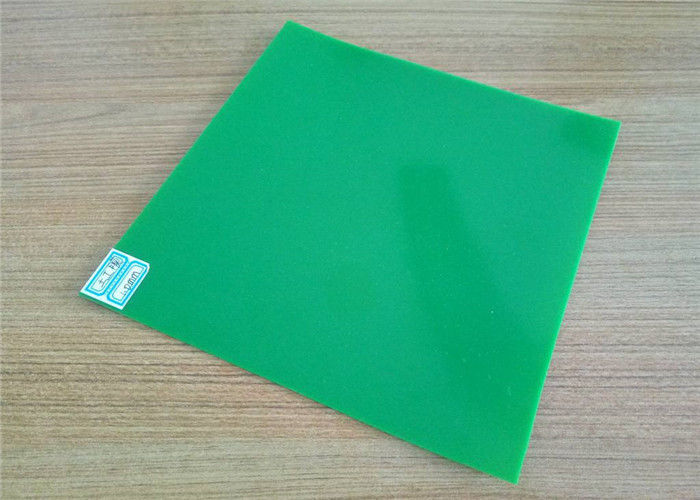

Pond 3mm Thickness Hdpe Dam Liners Geomembrane

Pond 3mm Thickness Hdpe Dam Liners Geomembrane

  • Pond 3mm Thickness Hdpe Dam Liners Geomembrane
  • Pond 3mm Thickness Hdpe Dam Liners Geomembrane
  • Pond 3mm Thickness Hdpe Dam Liners Geomembrane
  • Pond 3mm Thickness Hdpe Dam Liners Geomembrane
Pond 3mm Thickness Hdpe Dam Liners Geomembrane
Product Details:
Place of Origin: China
Brand Name: hengquan
Certification: CE/ISO9001
Model Number: zz-0228
Payment & Shipping Terms:
Minimum Order Quantity: 2000 Square Meter
Price: dollar+0.35usd---0.80usd+Square Meter
Packaging Details: Plastic bags
Delivery Time: 15days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000 Square Meter/Square Meters per Month
Contact Now
Detailed Product Description
Application: Pond Liner And Landfill, Fish Pond Liner And Landfill Color: Black White Green
Thickness: 0.2mm-3mm Width: 1-6m
Design Style: Farmhouse Warranty: More Than 5 Years
Project Solution Capability: Graphic Design, 3D Model Design, Total Solution For Projects Keyword: LDPE LLDPE 0.5mm 1mm 1.5mm 2mm Waterproof
Standard: ASTM GRI-GM13 Length: 50m-100m
High Light:

3mm thickness hdpe dam liners

,

pond geomembrane hdpe dam liners

,

3mm thickness polyethylene geomembrane

dam pond liner price HDPE Geomembrane






(1)Aquaculture:Using the geomembrane anti-seepage feature; fish ponds, shrimp pond, tank liner and others.
(2)Landfill: landfill anti-seepage engineering,the bottom of the landfill liner, landfill sealing cover, leachate regulating pool liner, etc.
(3)Water Treatment System: adjustment of the power plant and sewage treatment plants pool;and a series of water treatment systems.
(4)Mining: washing pool, pool heap leaching, heap yard, dissolving tank, tank, storage area, the bottom line of the tailings seepage control, etc



Thickness
0.2mm-3.0mm
Width
within12m(1m-12m)
Length
50m-100m/roll
Surface
Textured or smooth surface
Color
Black,white,green abd blue
Property Item
Geomembrane Property Value
Thickness,mm
0.75
1.0
1.25
1.5
2.0
2.5
3.0
Density,g/cm3
≥0.94
Tensile yiedl strength,N/mm
≥11
≥15
≥18
≥22
≥29
≥37
≥44
Tensile breaking strength,N/mm
≥20
≥27
≥33
≥40
≥53
≥67
≥80
Elongation at yield, %
≥12
Elongation at break,%
≥700
Tear Resistance,N
≥93
≥125
≥160
≥190
≥250
≥315
≥375
Puncture Resistance,N
≥240
≥320
≥400
≥480
≥640
≥800
≥960



1. Size choice
Thickness: Choose the thickness you need by your design paper; If no design paper, for fish ponds, virgin 0.5mm geomembrane is advised; for landfill, over 1.5mm thick is advised; for biogas pool, 1.0mm virgin on top is advised, the other being 0.75mm thick;
Width: 5.8m wide for 20' container, 8m wide for 40' container, 8m wide at most; Since there is 20cm welding connect, we'd better make it as wide as possilble;
Length: usually 50m or 100m, but almost any length could be customized; Usually within 1000-2000m long at most;
LDPE LLDPE 0.5mm 1mm 1.5mm 2mm waterproof membrane dam pond liner HDPE Geomembrane price
2. LifespanLDPE LLDPE 0.5mm 1mm 1.5mm 2mm waterproof membrane dam pond liner HDPE Geomembrane price
Top quality PE could be used over 50 years, when used in bad environment, like too hot, too cold or heavy acid places, the lifespan will be shorter than 50 years;
3.Caculate of quantity
If you know well about caculating the quantity, please ingore this part.
If not, when you caculate the quantity, please do not forget the welding connection 20cm and edge loss 50cm.
LDPE LLDPE 0.5mm 1mm 1.5mm 2mm waterproof membrane dam pond liner HDPE Geomembrane price
4.InstallmentLDPE LLDPE 0.5mm 1mm 1.5mm 2mm waterproof membrane dam pond liner HDPE Geomembrane price

Welding machines involved could be supplied, too. If you do not know much about how to weld and install the geomembrane, we will supply free installment and welding instructions and videos, so you only need to arrange other issues.

5.Packing:
woven geotextile bags with strengthened belt for unloading convenience
6.Delivery:
Within 5 - 7 days after receiving your deposit. Samples are free for your review.



Application

Pond 3mm Thickness Hdpe Dam Liners Geomembrane 0Pond 3mm Thickness Hdpe Dam Liners Geomembrane 1Pond 3mm Thickness Hdpe Dam Liners Geomembrane 2Pond 3mm Thickness Hdpe Dam Liners Geomembrane 3Pond 3mm Thickness Hdpe Dam Liners Geomembrane 4
