| Place of Origin: | China |
| Brand Name: | Hengquan |
| Certification: | ISO 9001 |
| Model Number: | TGSG15,TGSG20,TGSG25,TGSG30,TGSG35,TGSG40,TGSG45,TGSG50 |
| Minimum Order Quantity: | 1000m2 |
|---|---|
| Price: | Deliberation |
| Packaging Details: | packing belt |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 40000 squre meters per week |
| Product Name: | Plastic Geogrid | Advantage: | Acid Resistant |
|---|---|---|---|
| Roll Width: | 3.95/5.95m | Feature: | High Tensile Strength,permanent Load Bearing |
| MOQ: | 1000M2 | Mesh Size (mm): | 12.7*12.7/ 25.4*25.4/ 40*40 |
| Project Solution Capability: | Total Solution For Projects | Deliver Time: | About 10 Days After Order Was Confirmed |
| High Light: | 50kn polypropylene geogrid,soil stabilization polypropylene geogrid,15kn pp biaxial geogrid |
||

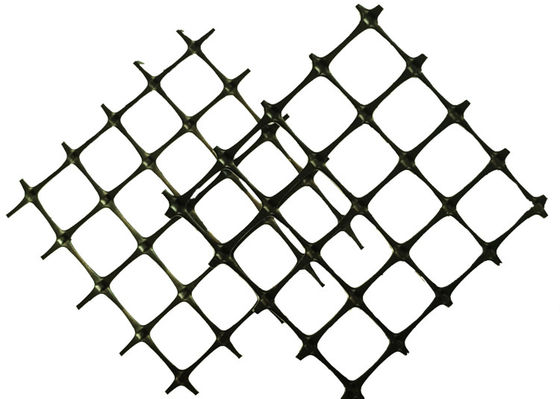

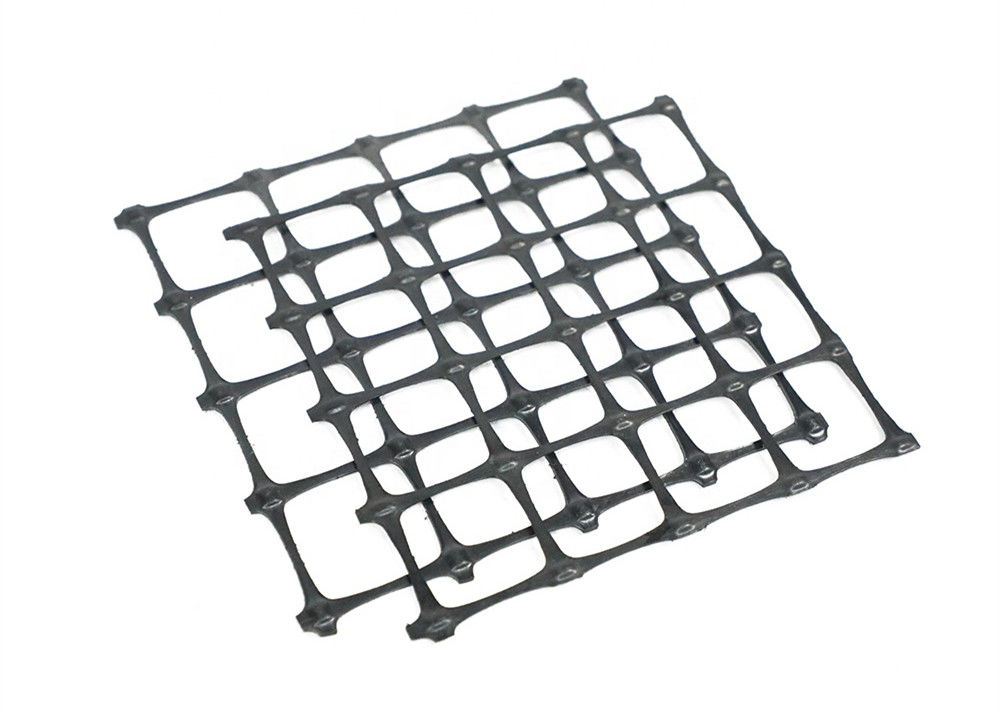

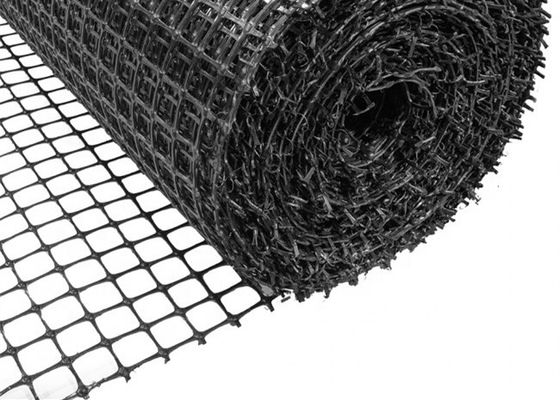

Plastic 15~50KN polypropylene Biaxial high tensile strength geogrid plastic soil stabilization geogrid
About Hengquan
We have experience for more than 7 years. There are two product lines for geogrid and geocell. Factory work 24hours a day, we sold more than 100,000,000rmb last year(2020). Our customers are all over the world.
Geogrid is a new type of synthetic material with many technical advantages. This paper introduces the application of geogrid in soft soil foundation, filling road section, pavement construction, and backfill soil, points out the key points of construction technology, and analyzes it in combination with engineering cases. It is hoped to provide experience and reference for similar projects, improve the construction quality of highway projects, and obtain economic and social benefits.
When the external force acts on the grid unevenly, the mesh will deform due to the transverse tensile stress, which shows the restraint effect and has strong adaptability to the non-uniform distributed load. The geogrid has high friction resistance. When used as reinforcement, it can enhance the shear strength of the structural layer and improve the overall stability.
1. After the first layer of geogrid is laid, start to fill the second layer of 0.2m thick medium (coarse) sand. The method: transport the sand to the construction site and unload it on the side of the roadbed, and then push it forward with a bulldozer. First fill 0.1m within 2m on both sides of the roadbed, then fold the first layer of geogrid and fill it with 0.1m of medium (coarse) sand. It is forbidden to fill and advance from both sides to the middle. All kinds of machinery work on the geogrid that is not filled with medium (coarse) sand, so as to ensure that the geogrid is flat, without bulging or wrinkling. After the second layer of medium (coarse) sand is leveled, the Measure horizontally to prevent uneven thickness of filling, and use a 25T vibratory roller to statically press twice after the copying is correct.
Factory and Equipment:
Product inventory:
Application of backfill in platform
There is a big difference in stiffness between rigid abutments and semi-rigid fill subgrades, which leads to uneven settlement of bridges and subgrades, resulting in the phenomenon of bridge head jumping. In the backfill construction of the platform, the laying of geogrid can form anchoring force, interlocking force, and frictional resistance, promote the formation of the structure and the backfill as a whole, effectively reduce the settlement difference, and improve the driving comfort.
| Item | Properties | Units | MD Values1 | XMD Values1 |
|---|---|---|---|---|
| 1 | Aperture dimensions2 | mm (in.) | 25 (1.0) | 33 (1.3) |
| 2 | Minimum rib thickness2 | mm (in.) | 0.76 (0.03) | 0.76 (0.03) |
| 3 | Tensile strength at 2% strain3 | kN/m (lb/ft.) | 4.1 (280) | 6.6 (450) |
| 4 | Tensile strength at 5% strain3 | kN/m (lb/ft.) | 8.5 (580) | 13.4 (920) |
| 5 | Ultimate tensile strength3 | kN/m (lb/ft.) | 12.4 (850) | 19.0 (1,300) |
| Structural Properties | ||||
| 6 | Junction efficiency4 | % | MD Values1 | |
| 7 | Flexural stiffness5 | mg-cm | 250.000 | |
| 8 | Aperture stability6 | m-N/deg | 0.32 | |
| Durability | ||||
| 9 | Resistance to installation damage7 | %SC/%SW/%GP | 95/93/90 | |
| 10 | Resistance to long term degradation8 | % | 100 | |
| 11 | Resistance to UV degradation9 | % | 100 | |
| Dimensions | ||||
| 12 | Roll sizes | m (ft.) | 3.0 × 75.0 (9.8 × 246); 4.0 × 75.0 (13.1 × 246) | |
