Anping County Hengquan Metal Wire Mesh Products Co.,Ltd
geogrids, geotextiles, geocells, geomembrane, chain link fence , welded wire mesh panel, hexagonal wire netting
 |
| Place of Origin: | China |
| Brand Name: | Hengquan |
| Certification: | ISO 9001 |
| Model Number: | TGSG15,TGSG20,TGSG25,TGSG30,TGSG35,TGSG40,TGSG45,TGSG50 |
| Minimum Order Quantity: | 1000m2 |
|---|---|
| Price: | Deliberation |
| Packaging Details: | packing belt |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 40000 squre meters per week |
| Product Name: | Plastic Geogrid | Advantage: | Acid Resistant |
|---|---|---|---|
| Function: | Subgrade Reinforcement | Tensile Strength: | 30KN |
| MOQ: | 1000M2 | Mesh Size (mm): | 12.7*12.7/ 25.4*25.4/ 40*40 |
| Certificate: | CE/ISO9001 | Material: | High-density Polymer |
| High Light: | hdpe biaxial plastic geogrid,highway stabilization biaxial plastic geogrid,soil stabilization pp biaxial geogrid |
||

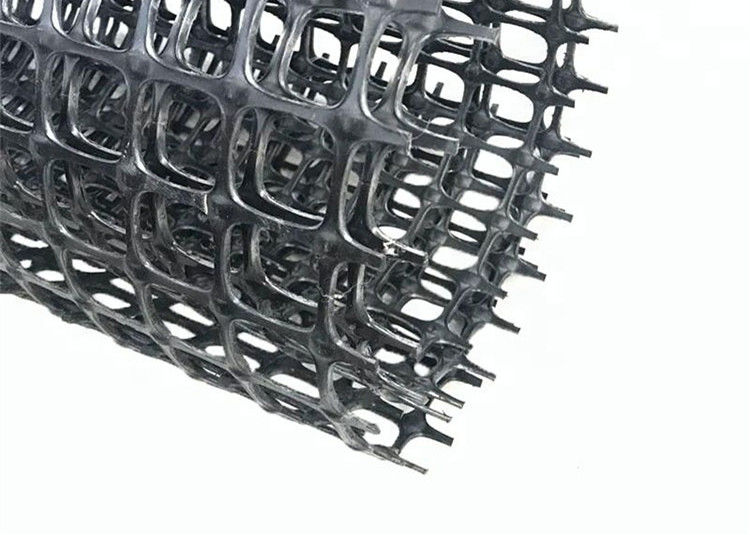

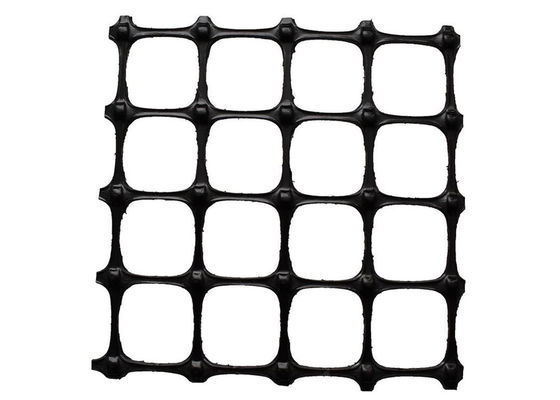

High strength tensile hdpe pp plastic biaxial black geogrid for soil road highway stabilization
About Hengquan
We have experience for more than 7 years. There are two product lines for geogrid and geocell. Factory work 24hours a day, we sold more than 100,000,000rmb last year(2020). Our customers are all over the world.
Geogrid is a new type of synthetic material with many technical advantages. This paper introduces the application of geogrid in soft soil foundation, filling road section, pavement construction, and backfill soil, points out the key points of construction technology, and analyzes it in combination with engineering cases. It is hoped to provide experience and reference for similar projects, improve the construction quality of highway projects, and obtain economic and social benefits.
When the external force acts on the grid unevenly, the mesh will deform due to the transverse tensile stress, which shows the restraint effect and has strong adaptability to the non-uniform distributed load. The geogrid has high friction resistance. When used as reinforcement, it can enhance the shear strength of the structural layer and improve the overall stability.
Grid laying: On a flat and compacted site, the main force direction (longitudinal) of the installed grid should be perpendicular to the direction of the embankment axis. The laying should be flat, without wrinkles, and as tight as possible. It should be fixed by inserting nails and earth-rock weight. The main stress direction of the laid grating is preferably the whole length without joints. The connection between the panels can be manually tied and overlapped, and the width of the overlap is not less than 10cm. If there are more than two layers of grilles, the layers should be staggered. After a large area is laid, the straightness should be adjusted as a whole. After filling a layer of soil, before rolling, the grille should be tightened manually or with equipment again, and the force should be uniform, so that the grille is in a state of tension and stress in the soil.
Factory and Equipment:

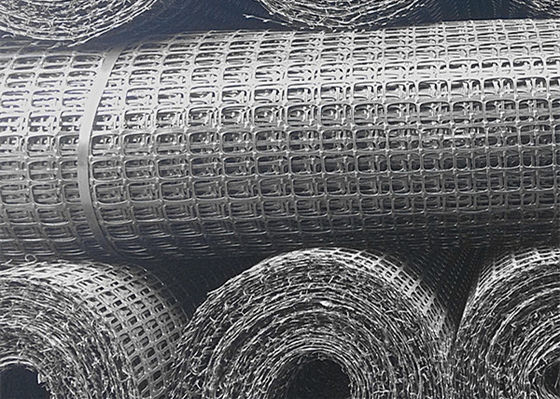

Product inventory:
Application in road construction
In the process of pavement construction, geogrids are laid between the base layer and the asphalt layer to promote the organic combination of asphalt gravel and grids, which can give full play to its embedded advantages, enhance the anti-fatigue ability of the surface layer, and reduce the chance of reflection cracks. In addition, the grid has good extensibility, which can restrain the damage to the pavement caused by the load change, thereby prolonging the service life of the pavement.
| Item | Properties | Units | MD Values1 | XMD Values1 |
|---|---|---|---|---|
| 1 | Aperture dimensions2 | mm (in.) | 25 (1.0) | 33 (1.3) |
| 2 | Minimum rib thickness2 | mm (in.) | 0.76 (0.03) | 0.76 (0.03) |
| 3 | Tensile strength at 2% strain3 | kN/m (lb/ft.) | 4.1 (280) | 6.6 (450) |
| 4 | Tensile strength at 5% strain3 | kN/m (lb/ft.) | 8.5 (580) | 13.4 (920) |
| 5 | Ultimate tensile strength3 | kN/m (lb/ft.) | 12.4 (850) | 19.0 (1,300) |
| Structural Properties | ||||
| 6 | Junction efficiency4 | % | MD Values1 | |
| 7 | Flexural stiffness5 | mg-cm | 250.000 | |
| 8 | Aperture stability6 | m-N/deg | 0.32 | |
| Durability | ||||
| 9 | Resistance to installation damage7 | %SC/%SW/%GP | 95/93/90 | |
| 10 | Resistance to long term degradation8 | % | 100 | |
| 11 | Resistance to UV degradation9 | % | 100 | |
| Dimensions | ||||
| 12 | Roll sizes | m (ft.) | 3.0 × 75.0 (9.8 × 246); 4.0 × 75.0 (13.1 × 246) | |
