Anping County Hengquan Metal Wire Mesh Products Co.,Ltd
geogrids, geotextiles, geocells, geomembrane, chain link fence , welded wire mesh panel, hexagonal wire netting
 |
| Place of Origin: | China |
| Brand Name: | Hengquan |
| Certification: | ISO 9001 |
| Model Number: | TGSG15,TGSG20,TGSG25,TGSG30,TGSG35,TGSG40,TGSG45,TGSG50 |
| Minimum Order Quantity: | 1000m2 |
|---|---|
| Price: | Deliberation |
| Packaging Details: | packing belt |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 40000 squre meters per week |
| Product Name: | Plastic Geogrid | Width: | 3.9 Meters Or 5.9 Meters |
|---|---|---|---|
| Length: | 50 Meters | Tensile Strength: | 30KN |
| Mesh Hole: | 32*32mm | Certificate: | ISO9001, ISO14001 |
| HS Code: | 3926909090 | LENGTH: | 50-100m |
| High Light: | 40/40kn biaxial plastic geogrid,5.9 meters width biaxial plastic geogrid,road reinforcement plastic geogrid mesh |
||

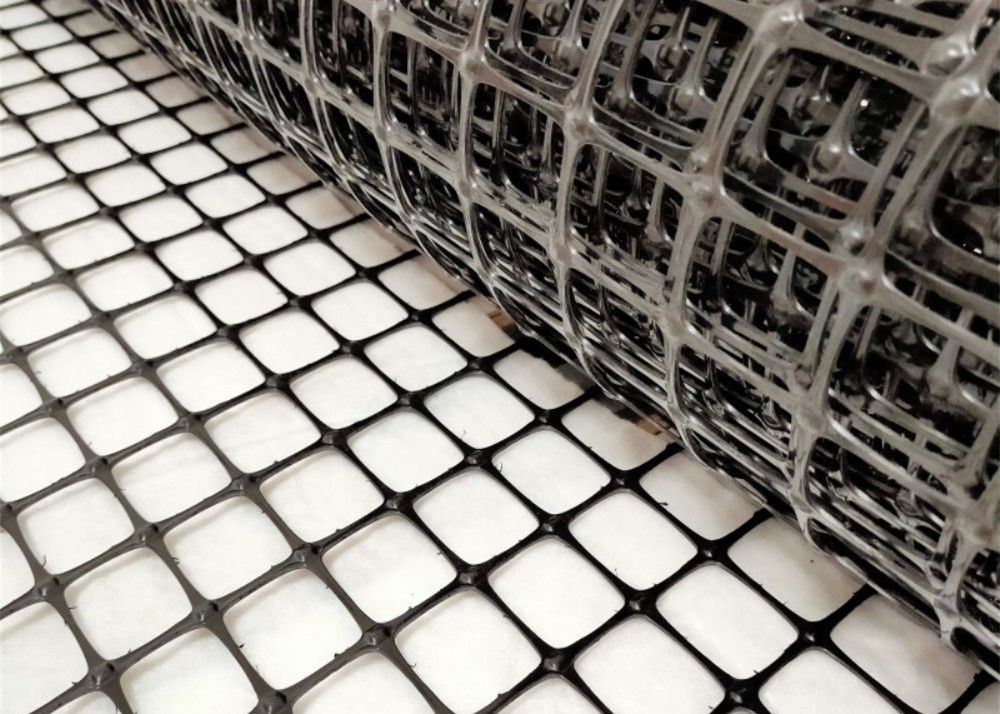

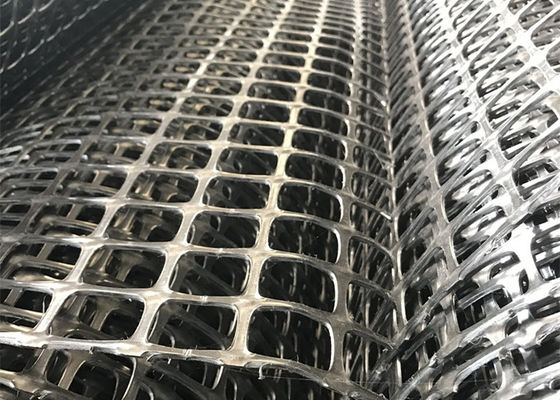

Plastic Road Geo Grids PP Biaxial Geogrid 40/40Kn For Road Reinforcement
About Hengquan
We have experience for more than 7 years. There are two product lines for geogrid and geocell. Factory work 24hours a day, we sold more than 100,000,000rmb last year(2020). Our customers are all over the world.
There are two common problems at the junction of old and new roads: one is that the design is not comprehensive, and there are many technical difficulties in construction; the other is that the strength of the old road is insufficient and the thickness of the reinforcement layer is thin. The use of geogrid can make up for the deficiencies in design and construction, and improve the tightness of the new and old joints. Taking a highway project as an example, the original width of the pavement is 9 m, and now it is expanded to 15 m. The pavement structure layers from top to bottom are: AC-13 asphalt concrete layer, AC-20 asphalt concrete layer, cement stabilized gravel layer, graded gravel layer. Using glass fiber geogrid material, the breaking strength is ≥50 kN/m, the breaking elongation is ≥3%, the grid size is 25.4mm×25.4mm, and the width is 5m. After the construction is completed, the line can pass smoothly, and the appearance and quality are better than the old pavement structure; compared with the replacement and graded gravel method, the use of geogrid not only reduces the cost, but also saves maintenance costs, showing good social and economic benefits.

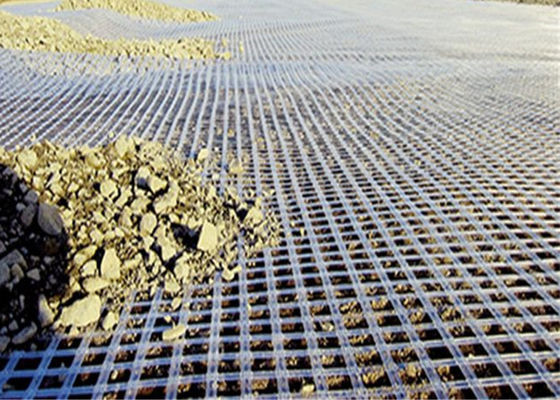

1. For roadbed reinforcement, the granular filler and the grid are interlocked to form a stable plane to prevent the filler from sinking and the vertical load is dispersed. Multi-layer reinforcement is used in areas with poor geographical conditions; 3. It is used for pavement reinforcement, so that the mesh and pavement materials are blended to effectively disperse and transmit loads to prevent pavement cracks; 4. Bear constant impact load; 5. Bear large alternating load; 6. Shorten Engineering construction period; 7. Construction can also be carried out under harsh environmental conditions; 8. Prevent pavement subsidence and cracks caused by grouting; 9. Reduce the amount of pavement materials; 10. Speed up construction
2. The construction method of the second layer of geogrid is the same as that of the first layer. Finally, 0.3m of medium (coarse) sand is filled. The filling method is the same as that of the first layer. After static pressing twice with a 25T road roller, the roadbed will be The base reinforcement is done.
3. After the third layer (coarse) sand is rolled, lay two geogrids on both sides of the slope along the longitudinal direction of the line, overlap 0.16m, and connect them in the same way, and then start the earthwork construction operation, laying For slope protection of geogrids, the laid side lines must be measured on each layer, and each side must ensure that the geogrids are buried within 0.10m of the slope after the slope is repaired.
Factory and Equipment:
Product inventory:
In soft soil high fill engineering, laying geogrid in the middle of 30-50 cm gravel layer can form geogrid gravel cushion and give full play to the reinforcement role of excavated geogrid. On the one hand, the geogrid has strong shear resistance, which can effectively prevent the gravel from falling into the soft foundation, and promote the grid and gravel to be embedded closely to form a stable whole. On the other hand, the geogrid will form a horizontal plane in terms of drainage, which can be used as a drainage channel. After the subgrade is formed, it can effectively reduce the soil moisture content. Third, the geogrid is laid above the soft foundation, which will produce isolation effect,
It is not only convenient for construction, but also can restrain the lateral deformation of foundation and reduce uneven settlement. Fourth, increase the shear resistance of soil and change the physical and mechanical properties of soft foundation.
| Item | Properties | Units | MD Values1 | XMD Values1 |
|---|---|---|---|---|
| 1 | Aperture dimensions2 | mm (in.) | 25 (1.0) | 33 (1.3) |
| 2 | Minimum rib thickness2 | mm (in.) | 0.76 (0.03) | 0.76 (0.03) |
| 3 | Tensile strength at 2% strain3 | kN/m (lb/ft.) | 4.1 (280) | 6.6 (450) |
| 4 | Tensile strength at 5% strain3 | kN/m (lb/ft.) | 8.5 (580) | 13.4 (920) |
| 5 | Ultimate tensile strength3 | kN/m (lb/ft.) | 12.4 (850) | 19.0 (1,300) |
| Structural Properties | ||||
| 6 | Junction efficiency4 | % | MD Values1 | |
| 7 | Flexural stiffness5 | mg-cm | 250.000 | |
| 8 | Aperture stability6 | m-N/deg | 0.32 | |
| Durability | ||||
| 9 | Resistance to installation damage7 | %SC/%SW/%GP | 95/93/90 | |
| 10 | Resistance to long term degradation8 | % | 100 | |
| 11 | Resistance to UV degradation9 | % | 100 | |
| Dimensions | ||||
| 12 | Roll sizes | m (ft.) | 3.0 × 75.0 (9.8 × 246); 4.0 × 75.0 (13.1 × 246) | |
