Name: Two Way 50 Meters Length Pp Biaxial Geogrid Subgrade Reinforcement
Brand: Hengquan
SKU: TGSG15,TGSG20,TGSG25,TGSG30,TGSG35,TGSG40,TGSG45,TGSG50
Price: 1.00 USD
Availability: InStock
Rating: 5 (116 reviews)

Home Products Biaxial Plastic Geogrid

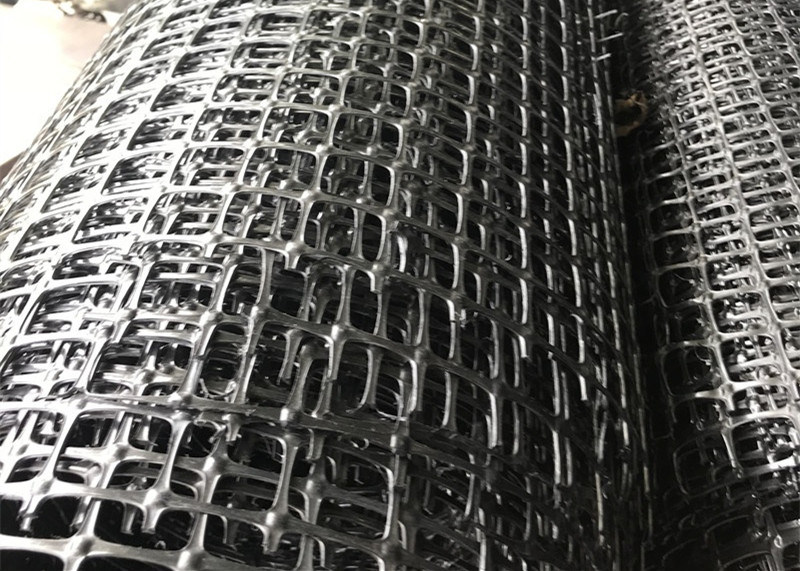

Two Way 50 Meters Length Pp Biaxial Geogrid Subgrade Reinforcement

Product Details:

Place of Origin:	China
Brand Name:	Hengquan
Certification:	ISO 9001
Model Number:	TGSG15,TGSG20,TGSG25,TGSG30,TGSG35,TGSG40,TGSG45,TGSG50

Payment & Shipping Terms:

Minimum Order Quantity:	1000m2
Price:	Deliberation
Packaging Details:	packing belt
Delivery Time:	5-8 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	40000 squre meters per week

Contact Now

Detailed Product Description

Product Name:	Plastic Geogrid	Free Sample:	Avaiable
Length:	50 Meters	Elongation At Break:	13% Max
Mesh Hole:	32*32mm	Color:	Black, Gray, Green
Applications :	Soft Foundation Reinforcement	Material:	100% PP (polypropylene)
High Light:	50 meters length pp biaxial geogrid , subgrade reinforcement pp biaxial geogrid , two way plastic geogrid mesh

Manufacturers sell two-way plastic geogrids for subgrade reinforcement at preferential prices

About Hengquan

We have experience for more than 7 years. There are two product lines for geogrid and geocell. Factory work 24hours a day, we sold more than 100,000,000rmb last year(2020). Our customers are all over the world.

Two Way 50 Meters Length Pp Biaxial Geogrid Subgrade Reinforcement 0

Brief Introduction of Geocell Confinement System

There are two common problems at the junction of old and new roads: one is that the design is not comprehensive, and there are many technical difficulties in construction; the other is that the strength of the old road is insufficient and the thickness of the reinforcement layer is thin. The use of geogrid can make up for the deficiencies in design and construction, and improve the tightness of the new and old joints. Taking a highway project as an example, the original width of the pavement is 9 m, and now it is expanded to 15 m. The pavement structure layers from top to bottom are: AC-13 asphalt concrete layer, AC-20 asphalt concrete layer, cement stabilized gravel layer, graded gravel layer. Using glass fiber geogrid material, the breaking strength is ≥50 kN/m, the breaking elongation is ≥3%, the grid size is 25.4mm×25.4mm, and the width is 5m. After the construction is completed, the line can pass smoothly, and the appearance and quality are better than the old pavement structure; compared with the replacement and graded gravel method, the use of geogrid not only reduces the cost, but also saves maintenance costs, showing good social and economic benefits.

Geogrid System Characteristic

The orientation of the arrangement strengthens the bonding force between the molecular chains and achieves the purpose of improving its strength. Its elongation is only 10% to 15% of the original sheet. If anti-aging materials such as carbon black are added to the geogrid, it can make it have better durability such as acid resistance, alkali resistance, corrosion resistance and aging resistance.

Laying method

1. After the first layer of geogrid is laid, start to fill the second layer of 0.2m thick medium (coarse) sand. The method: transport the sand to the construction site and unload it on the side of the roadbed, and then push it forward with a bulldozer. First fill 0.1m within 2m on both sides of the roadbed, then fold the first layer of geogrid and fill it with 0.1m of medium (coarse) sand. It is forbidden to fill and advance from both sides to the middle. All kinds of machinery work on the geogrid that is not filled with medium (coarse) sand, so as to ensure that the geogrid is flat, without bulging or wrinkling. After the second layer of medium (coarse) sand is leveled, the Measure horizontally to prevent uneven thickness of filling, and use a 25T vibratory roller to statically press twice after the copying is correct.

Factory and Equipment:

Two Way 50 Meters Length Pp Biaxial Geogrid Subgrade Reinforcement 1

Product inventory:

Application:

In soft soil high fill engineering, laying geogrid in the middle of 30-50 cm gravel layer can form geogrid gravel cushion and give full play to the reinforcement role of excavated geogrid. On the one hand, the geogrid has strong shear resistance, which can effectively prevent the gravel from falling into the soft foundation, and promote the grid and gravel to be embedded closely to form a stable whole. On the other hand, the geogrid will form a horizontal plane in terms of drainage, which can be used as a drainage channel. After the subgrade is formed, it can effectively reduce the soil moisture content. Third, the geogrid is laid above the soft foundation, which will produce isolation effect,
It is not only convenient for construction, but also can restrain the lateral deformation of foundation and reduce uneven settlement. Fourth, increase the shear resistance of soil and change the physical and mechanical properties of soft foundation.

Two Way 50 Meters Length Pp Biaxial Geogrid Subgrade Reinforcement 3

Specifications

Specifications: Biaxial geogrid
Item	Properties	Units	MD Values1	XMD Values1
1	Aperture dimensions2	mm (in.)	25 (1.0)	33 (1.3)
2	Minimum rib thickness2	mm (in.)	0.76 (0.03)	0.76 (0.03)
3	Tensile strength at 2% strain3	kN/m (lb/ft.)	4.1 (280)	6.6 (450)
4	Tensile strength at 5% strain3	kN/m (lb/ft.)	8.5 (580)	13.4 (920)
5	Ultimate tensile strength3	kN/m (lb/ft.)	12.4 (850)	19.0 (1,300)
Structural Properties
6	Junction efficiency4	%	MD Values1
7	Flexural stiffness5	mg-cm	250.000
8	Aperture stability6	m-N/deg	0.32
Durability
9	Resistance to installation damage7	%SC/%SW/%GP	95/93/90
10	Resistance to long term degradation8	%	100
11	Resistance to UV degradation9	%	100
Dimensions
12	Roll sizes	m (ft.)	3.0 × 75.0 (9.8 × 246); 4.0 × 75.0 (13.1 × 246)
