Landfill Sites Biaxial Bx Geogrid 30/30 Kn 55mm 60mm 65 Mm Mesh Size

Product Details:

Place of Origin:	China
Brand Name:	Hengquan
Certification:	ISO 9001
Model Number:	TGSG15,TGSG20,TGSG25,TGSG30,TGSG35,TGSG40,TGSG45,TGSG50

Payment & Shipping Terms:

Minimum Order Quantity:	1000m2
Price:	Deliberation
Packaging Details:	packing belt
Delivery Time:	5-8 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	40000 squre meters per week

Contact Now

Detailed Product Description

Product Name:	Plastic Geogrid	Width:	3.9 Meters Or 5.9 Meters
Length:	Outdoor, Road Construction .mine Laneway	Tensile Strength:	30KN
Feature:	High Tensile Strength,permanent Load Bearing	Color:	Black, Gray, Green
Applications :	Soft Foundation Reinforcement	Raw Material:	Polyester Coating PVC
High Light:	landfill sites biaxial bx geogrid , 55mm mesh size biaxial bx geogrid , 65mm size plastic geogrid mesh

Landfill Sites Foundation Materials 30/30 Kn 55 mm 60 mm 65 mm Mesh Size Biaxial BX Geogrid

About Hengquan

We have experience for more than 7 years. There are two product lines for geogrid and geocell. Factory work 24hours a day, we sold more than 100,000,000rmb last year(2020). Our customers are all over the world.

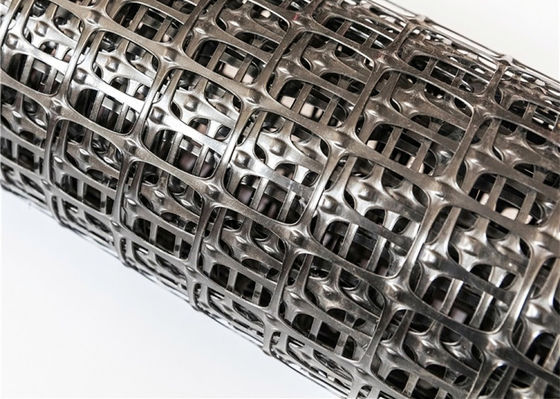

Landfill Sites Biaxial Bx Geogrid 30/30 Kn 55mm 60mm 65 Mm Mesh Size 0

Brief Introduction of Geocell Confinement System

There are two common problems at the junction of old and new roads: one is that the design is not comprehensive, and there are many technical difficulties in construction; the other is that the strength of the old road is insufficient and the thickness of the reinforcement layer is thin. The use of geogrid can make up for the deficiencies in design and construction, and improve the tightness of the new and old joints. Taking a highway project as an example, the original width of the pavement is 9 m, and now it is expanded to 15 m. The pavement structure layers from top to bottom are: AC-13 asphalt concrete layer, AC-20 asphalt concrete layer, cement stabilized gravel layer, graded gravel layer. Using glass fiber geogrid material, the breaking strength is ≥50 kN/m, the breaking elongation is ≥3%, the grid size is 25.4mm×25.4mm, and the width is 5m. After the construction is completed, the line can pass smoothly, and the appearance and quality are better than the old pavement structure; compared with the replacement and graded gravel method, the use of geogrid not only reduces the cost, but also saves maintenance costs, showing good social and economic benefits.

Geogrid System Characteristic

The advantages of applying geogrid in road engineering are as follows: (1) increase the integrity of subgrade, improve the bearing capacity of subgrade and prolong its service life. (2) prevent cracking and collapse of pavement structure to ensure driving safety. (3) the construction operation is simple, which not only saves labor and labor, but also has a short construction period. (4) it can be used as grass planting mesh pad on subgrade slope to beautify the environment. (5) instead of metal mesh, it can be used for false roof mesh in coal mine.

Laying method

Grid laying: On a flat and compacted site, the main force direction (longitudinal) of the installed grid should be perpendicular to the direction of the embankment axis. The laying should be flat, without wrinkles, and as tight as possible. It should be fixed by inserting nails and earth-rock weight. The main stress direction of the laid grating is preferably the whole length without joints. The connection between the panels can be manually tied and overlapped, and the width of the overlap is not less than 10cm. If there are more than two layers of grilles, the layers should be staggered. After a large area is laid, the straightness should be adjusted as a whole. After filling a layer of soil, before rolling, the grille should be tightened manually or with equipment again, and the force should be uniform, so that the grille is in a state of tension and stress in the soil.

Factory and Equipment:

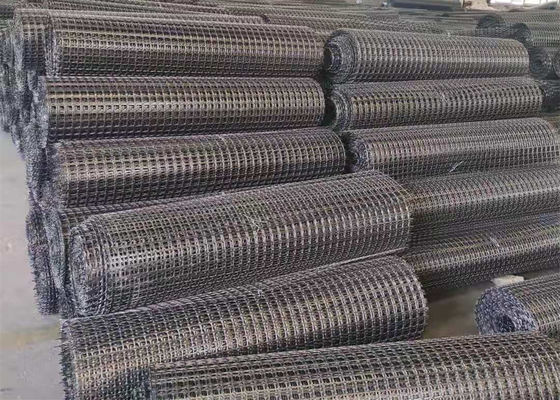

Landfill Sites Biaxial Bx Geogrid 30/30 Kn 55mm 60mm 65 Mm Mesh Size 1

Product inventory:

Application:

In soft soil high fill engineering, laying geogrid in the middle of 30-50 cm gravel layer can form geogrid gravel cushion and give full play to the reinforcement role of excavated geogrid. On the one hand, the geogrid has strong shear resistance, which can effectively prevent the gravel from falling into the soft foundation, and promote the grid and gravel to be embedded closely to form a stable whole. On the other hand, the geogrid will form a horizontal plane in terms of drainage, which can be used as a drainage channel. After the subgrade is formed, it can effectively reduce the soil moisture content. Third, the geogrid is laid above the soft foundation, which will produce isolation effect,
It is not only convenient for construction, but also can restrain the lateral deformation of foundation and reduce uneven settlement. Fourth, increase the shear resistance of soil and change the physical and mechanical properties of soft foundation.

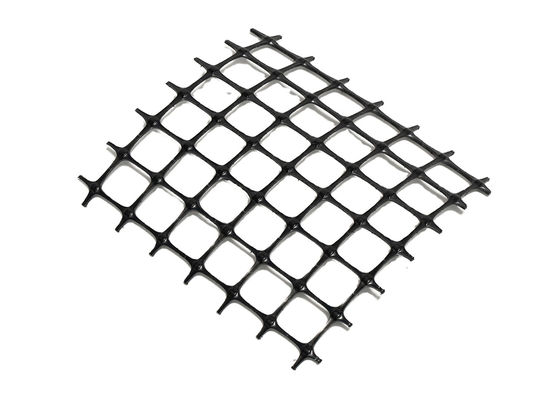

Landfill Sites Biaxial Bx Geogrid 30/30 Kn 55mm 60mm 65 Mm Mesh Size 3

Specifications

Specifications: Biaxial geogrid
Item	Properties	Units	MD Values1	XMD Values1
1	Aperture dimensions2	mm (in.)	25 (1.0)	33 (1.3)
2	Minimum rib thickness2	mm (in.)	0.76 (0.03)	0.76 (0.03)
3	Tensile strength at 2% strain3	kN/m (lb/ft.)	4.1 (280)	6.6 (450)
4	Tensile strength at 5% strain3	kN/m (lb/ft.)	8.5 (580)	13.4 (920)
5	Ultimate tensile strength3	kN/m (lb/ft.)	12.4 (850)	19.0 (1,300)
Structural Properties
6	Junction efficiency4	%	MD Values1
7	Flexural stiffness5	mg-cm	250.000
8	Aperture stability6	m-N/deg	0.32
Durability
9	Resistance to installation damage7	%SC/%SW/%GP	95/93/90
10	Resistance to long term degradation8	%	100
11	Resistance to UV degradation9	%	100
Dimensions
12	Roll sizes	m (ft.)	3.0 × 75.0 (9.8 × 246); 4.0 × 75.0 (13.1 × 246)
