Name: 3d Geocell Slope Protection Hdpe 50mm-300mm Height
Brand: Hengquan
SKU: Cell Height：50-250mm
Price: 1 USD
Availability: InStock
Rating: 4.6 (169 reviews)

Home Products Geocell Confinement System

3d Geocell Slope Protection Hdpe 50mm-300mm Height

Product Details:

Place of Origin:	China
Brand Name:	Hengquan
Certification:	ISO 9001
Model Number:	Cell Height：50-250mm

Payment & Shipping Terms:

Minimum Order Quantity:	1000m2
Price:	1usd/Squre meter, Other types need to Deliberation
Packaging Details:	packing belt
Delivery Time:	5-8 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	40000 Squre meters per week

Contact Now

Detailed Product Description

Name:	Geocell Confinement System	Description:	3D Cellular Confinement
Weld Spacing:	400mm	Feature:	Corrosion Resistant, Oxidation Resistance, Chemical Stability, Wear-resistant
Thickness:	1.0mm	Peel Strength Of Welding Point:	1000N Or 1420N/10CM
Cell Height:	50mm	Material:	HDPE
Package:	Plastic Packing Belts
High Light:	3d geocell slope protection , geocell slope protection 50mm height , hdpe geocell 300mm height

50mm-300mm Height Hdpe Geocells Cellular Confinement System/Ground Stabilization Grid/Geo Cell Solutions

About Hengquan

We have experience for more than 7 years. There are two product lines for geogrid and geocell. Factory work 24hours a day, we sold more than 100,000,000rmb last year(2020). Our customers are all over the world.

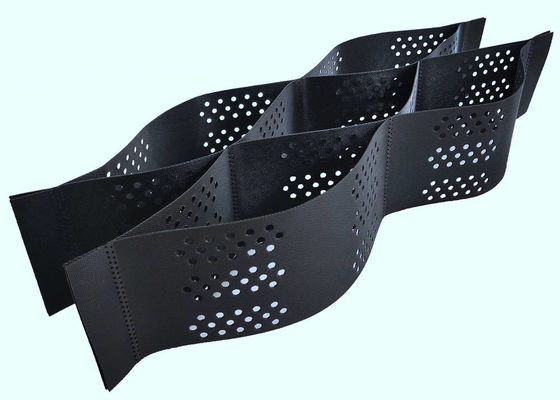

3d Geocell Slope Protection Hdpe 50mm-300mm Height 0

Brief Introduction of Geocell Confinement System

Geocell is a kind of new geosynthetics born around 1975. Known as Cellular Confinement Systems, is the ideal solution to soil reinforcement, erosion control, channel protection, and retaining walls. It is a kind of three-dimensional structure geosynthetics that is made of 100% HDPE virgin material. Due to its unique three-dimensional structure and sheet surface.

Geocell Confinement System Characteristic

Advantages
Provides cost effective, long-term slope and channel protection and stabilization.
Ease in transportation and on-site handling due to collapsible cells.
Rapid and simple installation conforms to most terrain profiles.
Ultrasonic welding of cell joints ensures maximum strength.
Easily dismantled and subsequently re-used.
Withstands high weight bearing loads.
Resistant to biological attack and a wide range of soil borne chemicals.

Laying method

Construction method and technology of geocell:
1. Working face: some existing slopes have met the requirements, slope restoration is in progress, and working faces will be provided successively.
The flatness of slope is directly related to the success or failure of geosyncline grass protection.
It tends to produce stress concentration and solder joint cracking in the lattice chamber.
Therefore, the slope must be leveled to the design requirements, and pumice and dangerous rocks must be removed by manual slope repair.
2. The side slope of the paving room is provided with a main drainage system.
The distance between two adjacent ditches shall be 4m, and the drainage ditch shall be connected with the ditch at the edge of the road to make the water in the road area flow into the drainage ditch and into the edge of the road, so as to avoid the road area and prevent slope erosion protection.
3. Level the slope top, remove sundries that are not conducive to mesh laying, and keep the slope flat and solid.
You can also start with a good layer of soil to help plants grow.
4. The grid is laid from top to bottom along the main direction to make the grid plate weight perpendicular to the highway subgrade.
Don't lie across.

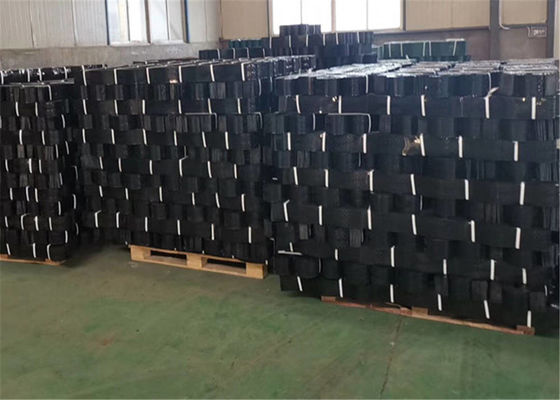

Factory and Equipment:

3d Geocell Slope Protection Hdpe 50mm-300mm Height 1

Product inventory:

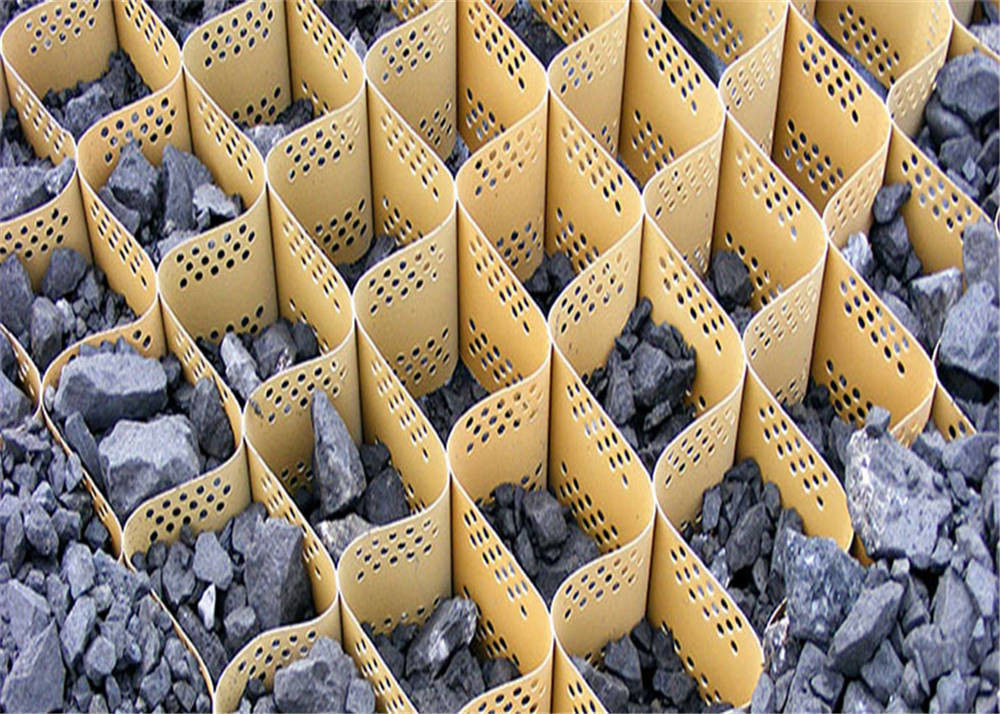

Application:

Geocell is the ideal product for soil reinforcement. It can greatly improve the bear capacity thanks to its three-dimensional structure. In many scenarios (various roads, airstrips, container yards, parking lots), in order to improve the bearing capacity of the road surface, reduce uneven settlement, and reduce maintenance costs in the later period, the geocell will be the best choice. Besides, geocell is widely used in slope protection, retaining walls, channel lining.

3d Geocell Slope Protection Hdpe 50mm-300mm Height 3

Specifications

Product Type	Height (mm)	Welding Distance (mm)	Thickness (mm)	Tensile Strength of Welding Points (N/cm)	Tensile Strength of Connection of Cells(N/cm)	Tensile Strength at Yield of Each Sheet (Mpa)
Smooth and Not Perforated	50≤H≤250	330≤A≤1000	1.0~1.2	≥100	≥120	≥20
Smooth and Perforated	50≤H≤250	330≤A≤1000	1.0~1.2	≥100	≥120	≥20
Textured and Not Perforated	50≤H≤250	330≤A≤1000	1.5~1.7	≥100	≥120	≥20
Textured and Perforated	50≤H≤250	330≤A≤1000	1.5~1.7	≥100	≥120	≥20

HDPE geocell type	Height (mm)	Welding Distance(mm) (mm)	Load quantity per 40'GP (Sqm) ( m2)
Smooth Perforated and Not Perforated	100	330	about 16500
Smooth Perforated and Not Perforated	150	330	about 11100
Smooth Perforated and Not Perforated	100	400	about 20400
Smooth Perforated and Not Perforated	150	400	about 13600
