Name: Soil Stabilization Geocell Confinement System Retaining Walls Wear Resistant
Brand: Hengquan
SKU: Cell Height：50-250mm
Price: 1 USD
Availability: InStock
Rating: 5 (128 reviews)

Home Products Geocell Confinement System

Soil Stabilization Geocell Confinement System Retaining Walls Wear Resistant

Product Details:

Place of Origin:	China
Brand Name:	Hengquan
Certification:	ISO 9001
Model Number:	Cell Height：50-250mm

Payment & Shipping Terms:

Minimum Order Quantity:	1000m2
Price:	1usd/Squre meter, Other types need to Deliberation
Packaging Details:	packing belt
Delivery Time:	5-8 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	40000 Squre meters per week

Contact Now

Detailed Product Description

Name:	Geocell Confinement System	Transport Package:	Winding Tape
Weld Spacing:	400mm	Corrosion Resistance:	Excellent Corrosion Resistance
Thickness:	1.0mm	Hole:	With Hole / Without Hole
Project Solution Capability:	Total Solution For Projects	Weight:	200-3000±50g/m2
Package:	Plastic Packing Belts	Keyword:	Geotechnical Materials
High Light:	soil stabilization geocell confinement system , wear resistant geocell confinement system

Plastic Driveway Gravel Grid Geocells For Soil Stabilization Geocell Retaining Walls

About Hengquan

We have experience for more than 7 years. There are two product lines for geogrid and geocell. Factory work 24hours a day, we sold more than 100,000,000rmb last year(2020). Our customers are all over the world.

Soil Stabilization Geocell Confinement System Retaining Walls Wear Resistant 0

Brief Introduction of Geocell Confinement System

Geocell is a kind of new geosynthetics born around 1975. Known as Cellular Confinement Systems, is the ideal solution to soil reinforcement, erosion control, channel protection, and retaining walls. It is a kind of three-dimensional structure geosynthetics that is made of 100% HDPE virgin material. Due to its unique three-dimensional structure and sheet surface.

Geocell Confinement System Characteristic

Advantages
Provides cost effective, long-term slope and channel protection and stabilization.
Ease in transportation and on-site handling due to collapsible cells.
Rapid and simple installation conforms to most terrain profiles.
Ultrasonic welding of cell joints ensures maximum strength.
Easily dismantled and subsequently re-used.
Withstands high weight bearing loads.
Resistant to biological attack and a wide range of soil borne chemicals.

Laying method

1. Fully open the compartment assembly and use hook rivet screws on the top.
The length of the riveted pile shall be twice the height of the cabin itself and 30 cm, such as 5 cm of the cabin.
The rivet column shall be 2-5cm long, 30cm long, 40cm long, and the rivet column in 10cm cabin shall be 2-1030cm long and 50cm long.
Among the riveted piles with drainage ditches on both sides, the bamboo pile mainly plays the role of opening the cell.
The middle and bottom can also be composed of bamboo and wood pile samples. The top riveting pile mainly plays the role of riveting grid, and better materials such as reinforcement can be used.
The reinforcement must be perpendicular to the slope. Other parts mainly play the role of living room in the construction. The materials available are relatively simple.
2. After the carriage is opened and riveted, the carriage shall be filled with high-quality soil suitable for planting grass or grass seeds. The soil shall reach 1.2 times the height of the carriage, and vegetation shall be planted in time.
3. When used for road downhill, the drainage ditch shall be connected with the shoulder retaining ditch to facilitate pavement drainage, and the slope protection shall not be washed.
When it is used for road uphill, a collecting ditch shall be set at the top of the slope to prevent rainwater at the uphill height from entering the drainage ditch and directly scouring the slope protection.
Higher geosynclines should be used as far as possible when going uphill.
4. After construction, re inspection shall be carried out, and non-solid materials with insufficient tension shall be reworked in time until the grass or grass completely survives.

Factory and Equipment:

Soil Stabilization Geocell Confinement System Retaining Walls Wear Resistant 1

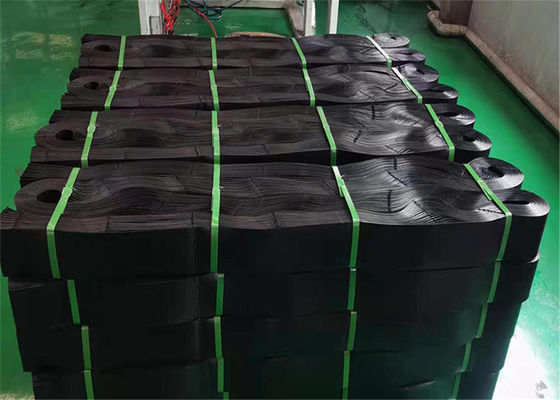

Product inventory:

Application:

Typical uses of geocells include root protection, erosion control, retaining structures, temporary or permanent tracks, and composite structures when trenchless systems are specified. Geocells can also be used to reduce the overall construction depth, thereby reducing the cost of filling materials. The working principle of geocell is to limit the filling material and ensure the lateral diffusion of downward force from traffic, so as to greatly reduce the pressure on the subbase by distributing the load over a wider area.

Soil Stabilization Geocell Confinement System Retaining Walls Wear Resistant 3

Specifications

Product Type	Height (mm)	Welding Distance (mm)	Thickness (mm)	Tensile Strength of Welding Points (N/cm)	Tensile Strength of Connection of Cells(N/cm)	Tensile Strength at Yield of Each Sheet (Mpa)
Smooth and Not Perforated	50≤H≤250	330≤A≤1000	1.0~1.2	≥100	≥120	≥20
Smooth and Perforated	50≤H≤250	330≤A≤1000	1.0~1.2	≥100	≥120	≥20
Textured and Not Perforated	50≤H≤250	330≤A≤1000	1.5~1.7	≥100	≥120	≥20
Textured and Perforated	50≤H≤250	330≤A≤1000	1.5~1.7	≥100	≥120	≥20

HDPE geocell type	Height (mm)	Welding Distance(mm) (mm)	Load quantity per 40'GP (Sqm) ( m2)
Smooth Perforated and Not Perforated	100	330	about 16500
Smooth Perforated and Not Perforated	150	330	about 11100
Smooth Perforated and Not Perforated	100	400	about 20400
Smooth Perforated and Not Perforated	150	400	about 13600
