Slope Geocell Grid Driveway Ground Reinforcement Cellular System

Geocell Ground Reinforcement Cellular System Gravel Grid Driveway Gravel Stabilizer

About Hengquan

We have experience for more than 7 years. There are two product lines for geogrid and geocell. Factory work 24hours a day, we sold more than 100,000,000rmb last year(2020). Our customers are all over the world.

Brief Introduction of  Geocell Confinement System

  Geocells are cellular confinement systems that were created as an easy and durable material that are used for stabilizing and protection. Cellular confinement systems effectively maintain the soil’s compaction, and, by doing so, create a stronger structure for both the infill and pavement.

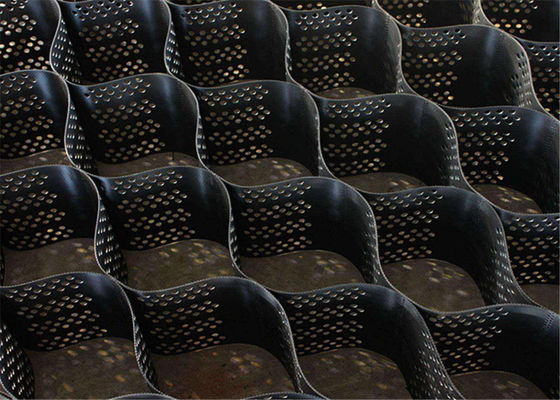

The cells’ three-dimensional, honeycomb design ensures that the Geocell is strong and durable. This format creates a structure that improves load distribution.

The cell is made from a high density polyethylene (HDPE), which is used to stabilize weak or unsteady soil. That ability is a result of their ability to reduce lateral movement of soil particles while vertically loading on the contained infill.

Geocell Confinement System Characteristic

  Geocell greatly reduces erosion caused by weather and heavy or repeated traffic. Through the perforation mode of each unit and weld, the water is allowed to drain freely without flushing the material. Textured surfaces provide additional material retention. It is very suitable for the construction of erodible slopes and embankments, as well as driveways, roads, parking lots, playgrounds, trails, etc.

Laying method

Construction method and technology of geocell:
1. Working face: some existing slopes have met the requirements, slope restoration is in progress, and working faces will be provided successively.
The flatness of slope is directly related to the success or failure of geosyncline grass protection.
It tends to produce stress concentration and solder joint cracking in the lattice chamber.
Therefore, the slope must be leveled to the design requirements, and pumice and dangerous rocks must be removed by manual slope repair.
2. The side slope of the paving room is provided with a main drainage system.
The distance between two adjacent ditches shall be 4m, and the drainage ditch shall be connected with the ditch at the edge of the road to make the water in the road area flow into the drainage ditch and into the edge of the road, so as to avoid the road area and prevent slope erosion protection.
3. Level the slope top, remove sundries that are not conducive to mesh laying, and keep the slope flat and solid.
You can also start with a good layer of soil to help plants grow.
4. The grid is laid from top to bottom along the main direction to make the grid plate weight perpendicular to the highway subgrade.
Don't lie across.
5. Fully open the compartment assembly and use hook rivet screws on the top.
The length of the riveted pile shall be twice the height of the cabin itself and 30 cm, such as 5 cm of the cabin.
The rivet column shall be 2-5cm long, 30cm long, 40cm long, and the rivet column in 10cm cabin shall be 2-1030cm long and 50cm long.
Among the riveted piles with drainage ditches on both sides, the bamboo pile mainly plays the role of opening the cell.
The middle and bottom can also be composed of bamboo and wood pile samples. The top riveting pile mainly plays the role of riveting grid, and better materials such as reinforcement can be used.
The reinforcement must be perpendicular to the slope. Other parts mainly play the role of living room in the construction. The materials available are relatively simple.
6. After the carriage is opened and riveted, the carriage shall be filled with high-quality soil suitable for planting grass or grass seeds. The soil shall reach 1.2 times the height of the carriage, and vegetation shall be planted in time.
7. When used for road downhill, the drainage ditch shall be connected with the shoulder retaining ditch to facilitate pavement drainage, and the slope protection shall not be washed.
When it is used for road uphill, a collecting ditch shall be set at the top of the slope to prevent rainwater at the uphill height from entering the drainage ditch and directly scouring the slope protection.
Higher geosynclines should be used as far as possible when going uphill.
8. After construction, re inspection shall be carried out, and non-solid materials with insufficient tension shall be reworked in time until the grass or grass completely survives.

Factory  and Equipment:

Product inventory:

Application:

Geocell is the ideal product for soil reinforcement. It can greatly improve the bear capacity thanks to its three-dimensional structure. In many scenarios (various roads, airstrips, container yards, parking lots), in order to improve the bearing capacity of the road surface, reduce uneven settlement, and reduce maintenance costs in the later period, the geocell will be the best choice. Besides, geocell is widely used in slope protection, retaining walls, channel lining.

Certifications

Our Company



Year of Registration: 2014

Place of Registration: China

Registrated Capital: CNY105,000,000.00

Briture Co., Ltd

was approved by Chinese Bureau of Commerce

Download PDF: Catalog of Hengquan - geocell.pdf
