Name: Unperforated 1mm Geocell Confinement System For Ground Paver
Brand: Hengquan
SKU: Cell Height：50-250mm
Price: 1 USD
Availability: InStock
Rating: 4.9 (163 reviews)

Home Products Geocell Confinement System

Unperforated 1mm Geocell Confinement System For Ground Paver

Product Details:

Place of Origin:	China
Brand Name:	Hengquan
Certification:	ISO 9001
Model Number:	Cell Height：50-250mm

Payment & Shipping Terms:

Minimum Order Quantity:	1000m2
Price:	1usd/Squre meter, Other types need to Deliberation
Packaging Details:	packing belt
Delivery Time:	5-8 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	40000 Squre meters per week

Contact Now

Detailed Product Description

Name:	Geocell Confinement System	Usage:	Soft Foundation Reinforcement Stability
Peel Strength Of Welding Point:	1000N Or 1420N/10CM	Standards:	GB/T 19274-2003
Thickness:	1.0mm	Surface:	Textured
Cell Height:	50mm	Material:	HDPE
Package:	Plastic Packing Belts	Feature:	Corrosion Resistant, Oxidation Resistance, Chemical Stability, Wear-resistant
High Light:	1mm geocell confinement system , unperforated geocell confinement system , ground paver geocell confinement system

HDPE Plastic Black Green Brown Textured Smooth Perforated Unperforated Geocells for Ground Paver

About Hengquan

We have experience for more than 7 years. There are two product lines for geogrid and geocell. Factory work 24hours a day, we sold more than 100,000,000rmb last year(2020). Our customers are all over the world.

Unperforated 1mm Geocell Confinement System For Ground Paver 0

Brief Introduction of Geocell Confinement System

Geocells are cellular confinement systems that were created as an easy and durable material that are used for stabilizing and protection. Cellular confinement systems effectively maintain the soil’s compaction, and, by doing so, create a stronger structure for both the infill and pavement. The cells’ three-dimensional, honeycomb design ensures that the Geocell is strong and durable. This format creates a structure that improves load distribution. The cell is made from a high density polyethylene (HDPE), which is used to stabilize weak or unsteady soil. That ability is a result of their ability to reduce lateral movement of soil particles while vertically loading on the contained infill.

Geocell Confinement System Characteristic

Geocell greatly reduces erosion caused by weather and heavy or repeated traffic. Through the perforation mode of each unit and weld, the water is allowed to drain freely without flushing the material. Textured surfaces provide additional material retention. It is very suitable for the construction of erodible slopes and embankments, as well as driveways, roads, parking lots, playgrounds, trails, etc.

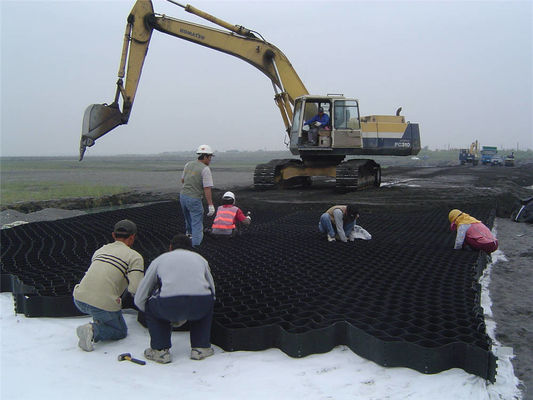

Laying method

Construction precautions.
① The maximum strength direction of the grid shall be consistent with the direction bearing the maximum stress.
② Direct driving of heavy vehicles on the laid geogrid shall be avoided.
③ The cutting and stitching amount of geogrid shall be minimized to avoid waste.
④ During construction in cold seasons, the geogrid becomes hard and easy to cut hands and rub knees.

Factory and Equipment:

Unperforated 1mm Geocell Confinement System For Ground Paver 1

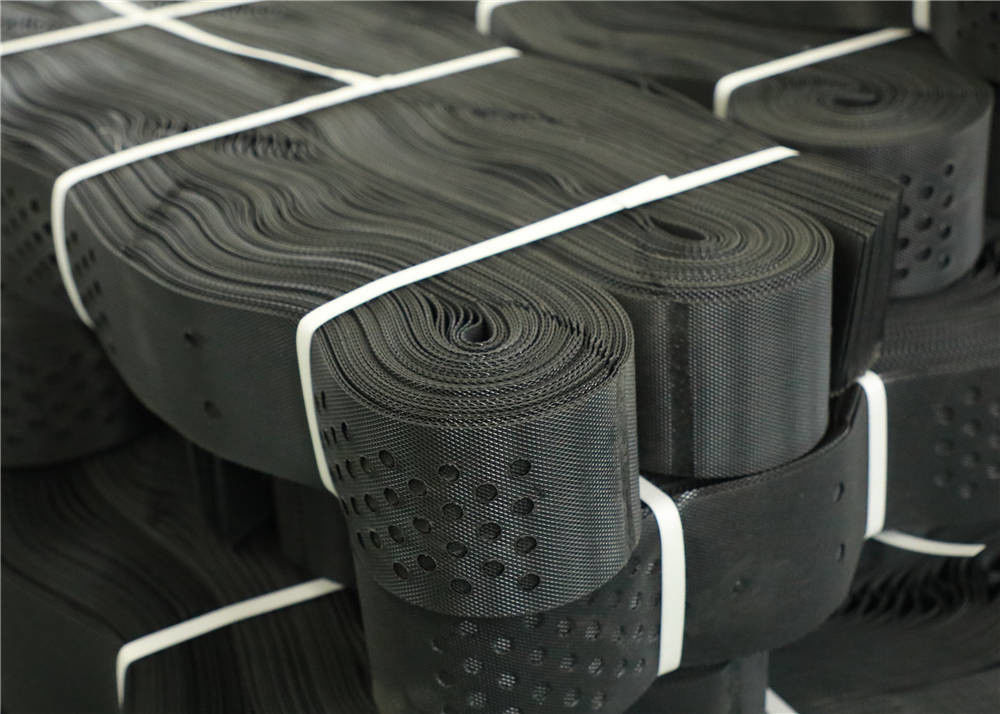

Product inventory:

Application:

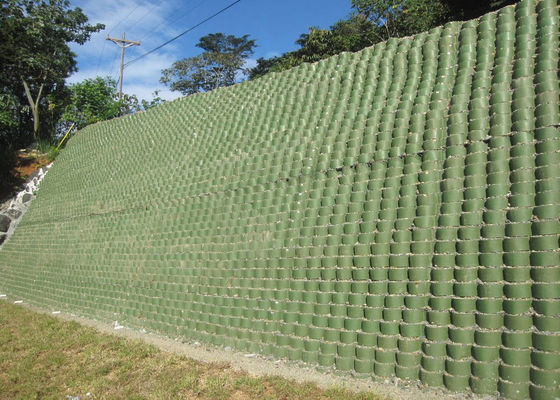

Typical uses of geocells include root protection, erosion control, retaining structures, temporary or permanent tracks, and composite structures when trenchless systems are specified. Geocells can also be used to reduce the overall construction depth, thereby reducing the cost of filling materials. The working principle of geocell is to limit the filling material and ensure the lateral diffusion of downward force from traffic, so as to greatly reduce the pressure on the subbase by distributing the load over a wider area.

Unperforated 1mm Geocell Confinement System For Ground Paver 3

Specifications

Product Type	Height (mm)	Welding Distance (mm)	Thickness (mm)	Tensile Strength of Welding Points (N/cm)	Tensile Strength of Connection of Cells(N/cm)	Tensile Strength at Yield of Each Sheet (Mpa)
Smooth and Not Perforated	50≤H≤250	330≤A≤1000	1.0~1.2	≥100	≥120	≥20
Smooth and Perforated	50≤H≤250	330≤A≤1000	1.0~1.2	≥100	≥120	≥20
Textured and Not Perforated	50≤H≤250	330≤A≤1000	1.5~1.7	≥100	≥120	≥20
Textured and Perforated	50≤H≤250	330≤A≤1000	1.5~1.7	≥100	≥120	≥20

HDPE geocell type	Height (mm)	Welding Distance(mm) (mm)	Load quantity per 40'GP (Sqm) ( m2)
Smooth Perforated and Not Perforated	100	330	about 16500
Smooth Perforated and Not Perforated	150	330	about 11100
Smooth Perforated and Not Perforated	100	400	about 20400
Smooth Perforated and Not Perforated	150	400	about 13600
