Hdpe 50mm High Geocell Confinement System Ground Stabilization Slope Protection Grid

Hdep Geocell Cellular Confinement for Ground Stabilization Slope Protection Ground Grid

About Hengquan

We have experience for more than 7 years. There are two product lines for geogrid and geocell. Factory work 24hours a day, we sold more than 100,000,000rmb last year(2020). Our customers are all over the world.

Brief Introduction of  Geocell Confinement System

  Geocells are cellular confinement systems that were created as an easy and durable material that are used for stabilizing and protection. Cellular confinement systems effectively maintain the soil’s compaction, and, by doing so, create a stronger structure for both the infill and pavement. The cells’ three-dimensional, honeycomb design ensures that the Geocell is strong and durable. This format creates a structure that improves load distribution. The cell is made from a high density polyethylene (HDPE), which is used to stabilize weak or unsteady soil. That ability is a result of their ability to reduce lateral movement of soil particles while vertically loading on the contained infill.

Geocell Confinement System Characteristic

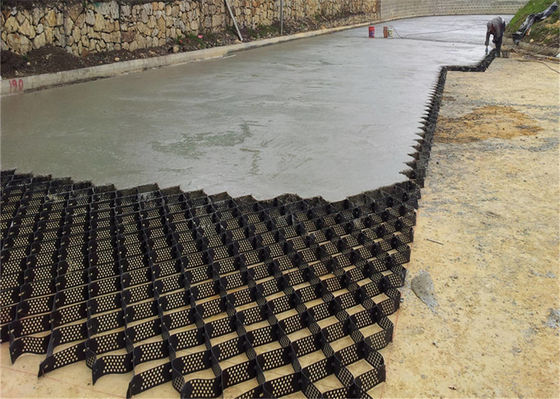

  Geocell greatly reduces erosion caused by weather and heavy or repeated traffic. Through the perforation mode of each unit and weld, the water is allowed to drain freely without flushing the material. Textured surfaces provide additional material retention. It is very suitable for the construction of erodible slopes and embankments, as well as driveways, roads, parking lots, playgrounds, trails, etc.

Laying method

① Foundation treatment
Firstly, the lower layer shall be leveled and rolled. The flatness shall not be greater than 15mm, and the compaction shall meet the design requirements. Hard protrusions such as gravel and stones are strictly prohibited on the surface.
② Laying geogrid
a. When storing and laying geogrids, avoid exposure and long-term exposure to avoid deterioration of performance.
b. It shall be laid perpendicular to the line direction, overlapped and firmly connected according to the requirements of the design drawings. The strength of the joint in the stress direction shall not be less than the design tensile strength of the material, and its lamination length shall not be less than 20cm.
c. The quality of geogrid shall meet the requirements of design drawings.
d. During construction, it is necessary to maintain continuity without deformation, wrinkling and overlap. Pay attention to tension the grid by hand to make it uniform and flat, close to the lower bearing surface, and fix it with nails and other measures.
e. For the geogrid, the long hole direction is consistent with the cross section direction of the line, and the geogrid shall be straightened and leveled. The end of the grating shall be treated according to the design.
f. After the geogrid is laid, the filler shall be filled in time at an interval of no more than 48 hours to avoid direct exposure to the sun.
③ Fill
After the grating is laid, it shall be filled in time. The filling shall be carried out according to the symmetrical principle of "two sides first and then the middle", and it is strictly prohibited to fill the middle of the embankment. The filler shall not be unloaded directly on the geogrid, but must be unloaded on the paved soil surface, and the unloading height shall not exceed 1m. All vehicles and construction machinery shall not walk directly on the paved geogrid, but only along the embankment.
④ Rolling grating
After the first layer of filler reaches the predetermined thickness and is rolled to the design density, roll the grid back for 2m, bind it to the previous layer of geogrid, manually trim and anchor, and plant 1m soil outside the rolling end to protect the grid from human damage.
⑤ The laying of one layer of geogrid shall be completed according to the above method, and the laying of other layers of geogrid shall be carried out according to the same method and steps. After the grid is laid, the upper embankment will be filled.

Factory  and Equipment:

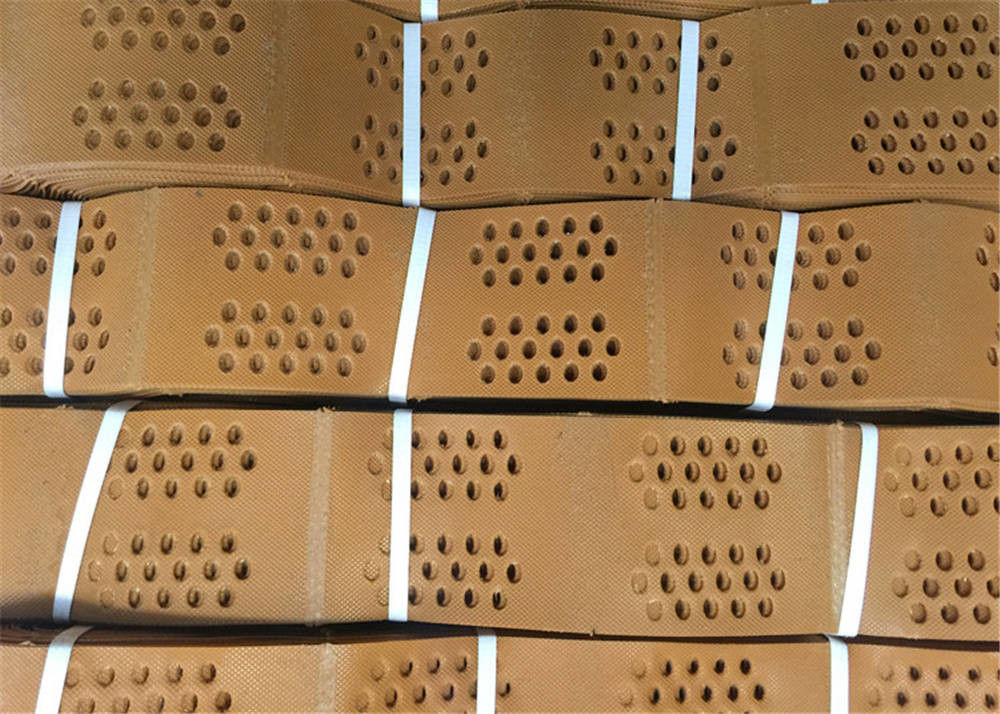

Product inventory:

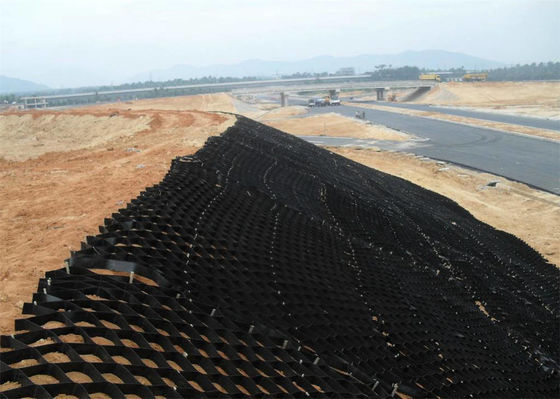

Application:

  Functioning by filling the pores with a three-dimensional honeycomb structure, the geocell cellular confinement system offers alternative solutions to geogrid material. Working with the logic of geogrid, geocell undertakes the tasks of reinforcement of geogrids on the ground and reinforcement on retaining walls. Differently, cellular confinement systems work by filling the cellular fillings.
