Honeycomb Gravel Stabilizer Cellular Confinement System Textured Perforated 1420N

Honeycomb Gravel Stabilizer Cellular Confinement System Textured And Perforated Plastic Hdpe Geocells

Brief Introduction of  Geocell Confinement System

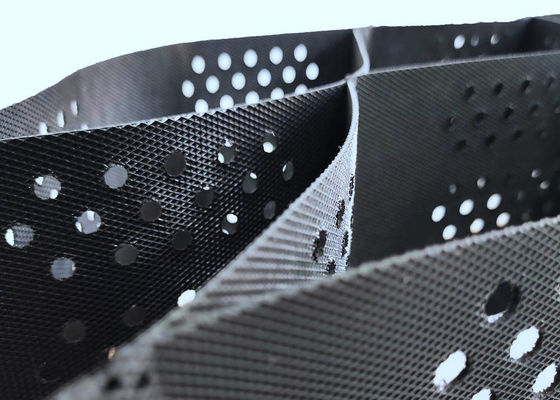

  Geocell Confinement System--also known as Cellular Confinement System(CCS), it is a kind of three-dimensional network structure shaped by high-strength HDPE (high density polyethylene) sheets through ultrasonic welding of high strength. The depth of the geocells as well as the size of each cellular unit can vary as per design requirements. The surface of geocells are smooth or textured, the textured geocells increase soil-geocell wall friction. Geocells can be perforated or non-perforated. If the depth of geocell is over 10cm, the geocell can be perforated, the geocell wall is punctured to assist in immediate dissipation of developed porewater pressures due to increased stresses within the infill of the individual cells.

Geocell Confinement System Specification

1. Cell depth: 50mm,100mm,150mm,200mm,250mm,300mm
2. Welding distance: 330mm~1600mm
3. Thickness: 1.0mm,1.2mm(smooth), 1.5mm,1.8mm(textured)
4. Appearance/surface: smooth/textured

What is Geocell?

Geocell is a new type of high-strength geosynthetics popular at home and abroad. It is a three-dimensional mesh cell structure formed by REINFORCED HDPE sheet material and high-strength welding. The utility model has the advantages of flexible expansion, retractable transportation and folding. During construction, it can be tensioned into a network and filled with loose materials such as soil, gravel and concrete to form a structure with strong lateral restriction and large stiffness. It has the characteristics of light material, wear resistance, stable chemical properties, light and oxygen aging resistance, acid and alkali resistance, etc. Due to its high lateral restriction and anti-skid, anti deformation, effective enhancement of subgrade bearing capacity and scattered load, it is widely used in: cushion, stable railway subgrade, stable highway soft foundation treatment, supporting structure of pipeline and sewer, mixed retaining wall to prevent landslide and load gravity, desert, beach, riverbed, river Bank treatment, etc.

Geocell Confinement System Characteristic

Product features: 1. It can be retracted and folded during transportation. During construction, it can be tensioned into a network and filled with loose materials such as soil, gravel and concrete to form a structure with strong lateral restriction and large stiffness. 2. Light material, wear-resistant, stable chemical properties, light and oxygen aging resistance, acid and alkali resistance, suitable for different soil conditions such as soil and desert. 3. High lateral restriction and anti-skid, anti deformation, effectively enhance the bearing capacity of subgrade and disperse load. 4. Changing the geometric dimensions such as geocell height and welding distance can meet the needs of different projects, with flexible expansion, small transportation volume, convenient connection and fast construction speed.

Application

At present, this paving artifact is mainly used in urban expressways, main urban roads, railways and aircraft runways. Moreover, according to different needs, the materials for making geocell are different, and the way of paving will be different. For example, when dealing with the soft foundation of highway, railway and water conservancy projects, strengthening river embankment and landslide restoration, we will choose polypropylene and high-density polyethylene, because these raw materials are relatively light, acid and alkali resistant, non perishable and. Compared with other materials, it has more economic effect; When strengthening the subgrade of railway and highway and building airport runway, glass fiber soil will be selected as the material of geocell. The material is made of high strength alkali free glass, and has a high degree of compressive strength, high temperature resistance, low cold resistance and anti-aging.

Laying method

1. The purchased geocell materials must have factory certificate and test report. The strength index test shall be carried out randomly every 5000 square meters, and the results must meet the design requirements.
2. Do a good job in site preparation. Before the commencement of flexible retaining wall, the retaining wall site and the required site shall be cleaned, organic impurities and tree roots and grass shall be removed, rolled and leveled, and the stacking site shall be reasonably arranged. Considering the abundant precipitation and the influence of the area with poor water and soil quality, a drainage ditch shall be excavated at the periphery of the wall site as a temporary drainage facility before construction. When the flexible retaining wall is used as the cutting wall, it is necessary to excavate the soil with the thickness of the wall in the direction of the slope. Set out and excavate the slope according to the requirements of the design drawings. The slope line shall meet the construction requirements of retaining wall, and it is forbidden to occupy the building space of flexible wall. The waterproof and drainage work in the construction site shall be well done. In case of rainfall, the water outside the site shall be strictly prevented from entering the working face, so as to ensure that the water inside the site can be discharged in time. If necessary, it shall be covered and waterproof. After the slope is excavated, the base bearing capacity shall be tested immediately.
