Landscape Project Geocell Confinement System 1.5mm Thickness Hdpe

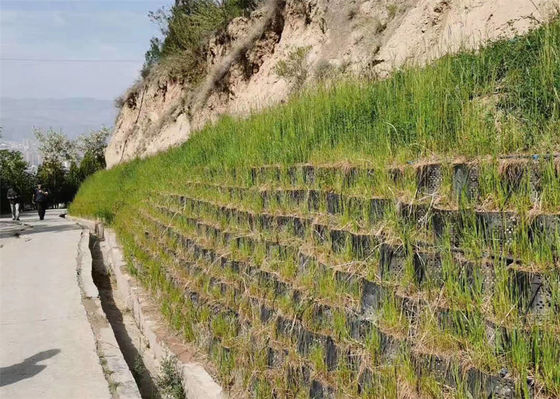

HDPE Geocell for Retaining Walls and Soft Soil Foundation Protect and Landscape Project

Brief Introduction of  Geocell Confinement System

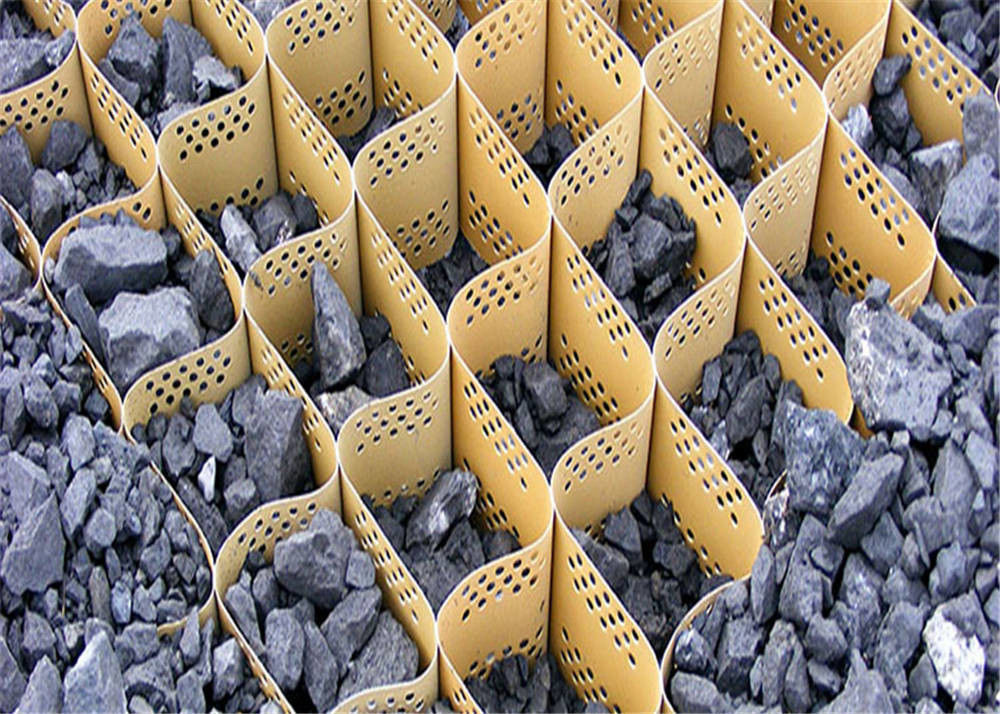

  Geocell Confinement System--also known as Cellular Confinement System(CCS), it is a kind of three-dimensional network structure shaped by high-strength HDPE (high density polyethylene) sheets through ultrasonic welding of high strength. The depth of the geocells as well as the size of each cellular unit can vary as per design requirements. The surface of geocells are smooth or textured, the textured geocells increase soil-geocell wall friction. Geocells can be perforated or non-perforated. If the depth of geocell is over 10cm, the geocell can be perforated, the geocell wall is punctured to assist in immediate dissipation of developed porewater pressures due to increased stresses within the infill of the individual cells.

Geocell Confinement System Specification

1. Cell depth: 50mm,100mm,150mm,200mm,250mm,300mm
2. Welding distance: 330mm~1600mm
3. Thickness: 1.0mm,1.2mm(smooth), 1.5mm,1.8mm(textured)
4. Appearance/surface: smooth/textured

What is Geocell?

Geocell is a mesh cell structure formed by high-strength HDPE broadband and strong welding. The utility model can be retracted freely, can be folded during transportation, and can be opened and filled with earth rock or concrete materials when in use to form a structure with strong lateral restriction and large stiffness. It can be used as cushion to treat soft foundation and increase the bearing capacity of foundation. It can also be laid on slope to form broken surface protection structure, and can also be used to build retaining structure, etc. This material is also very convenient for construction.

Geocell Confinement System Characteristic

1. High strength and small deformation;
2. Small creep;
3. corrosion resistance and long life: steel plastic geogrid with plastic material as protective layer, with various auxiliaries to make it have anti-aging, oxidation properties, acid, alkali, salt and other harsh environment corrosion. Therefore, the steel plastic geogrid can meet the use needs of various permanent projects for more than 100 years, with excellent performance and good dimensional stability.
4. Convenient and fast construction, short period and low cost: the steel plastic geogrid is easy to lay, lap, locate and level, avoiding overlap and intersection, which can effectively shorten the project cycle and save 10% - 50% of the project cost.

Application

At present, this paving artifact is mainly used in urban expressways, main urban roads, railways and aircraft runways. Moreover, according to different needs, the materials for making geocell are different, and the way of paving will be different. For example, when dealing with the soft foundation of highway, railway and water conservancy projects, strengthening river embankment and landslide restoration, we will choose polypropylene and high-density polyethylene, because these raw materials are relatively light, acid and alkali resistant, non perishable and. Compared with other materials, it has more economic effect; When strengthening the subgrade of railway and highway and building airport runway, glass fiber soil will be selected as the material of geocell. The material is made of high strength alkali free glass, and has a high degree of compressive strength, high temperature resistance, low cold resistance and anti-aging.

Laying method

1. The purchased geocell materials must have factory certificate and test report. The strength index test shall be carried out randomly every 5000 square meters, and the results must meet the design requirements.
2. Do a good job in site preparation. Before the commencement of flexible retaining wall, the retaining wall site and the required site shall be cleaned, organic impurities and tree roots and grass shall be removed, rolled and leveled, and the stacking site shall be reasonably arranged. Considering the abundant precipitation and the influence of the area with poor water and soil quality, a drainage ditch shall be excavated at the periphery of the wall site as a temporary drainage facility before construction. When the flexible retaining wall is used as the cutting wall, it is necessary to excavate the soil with the thickness of the wall in the direction of the slope. Set out and excavate the slope according to the requirements of the design drawings. The slope line shall meet the construction requirements of retaining wall, and it is forbidden to occupy the building space of flexible wall. The waterproof and drainage work in the construction site shall be well done. In case of rainfall, the water outside the site shall be strictly prevented from entering the working face, so as to ensure that the water inside the site can be discharged in time. If necessary, it shall be covered and waterproof. After the slope is excavated, the base bearing capacity shall be tested immediately.
