Ce Certificate Geocell Gravel Driveway 1.0mm Thick Corrosion Resistant

HDPE Smooth/Textured Perforated Geocell with CE Certificate Gravel Grids Paver Manufacturer Directly Supply

Brief Introduction of  Geocell Confinement System

  Geocell Confinement System--also known as Cellular Confinement System(CCS), it is a kind of three-dimensional network structure shaped by high-strength HDPE (high density polyethylene) sheets through ultrasonic welding of high strength. The depth of the geocells as well as the size of each cellular unit can vary as per design requirements. The surface of geocells are smooth or textured, the textured geocells increase soil-geocell wall friction. Geocells can be perforated or non-perforated. If the depth of geocell is over 10cm, the geocell can be perforated, the geocell wall is punctured to assist in immediate dissipation of developed porewater pressures due to increased stresses within the infill of the individual cells.

Geocell Confinement System Specification

1. Cell depth: 50mm,100mm,150mm,200mm,250mm,300mm
2. Welding distance: 330mm~1600mm
3. Thickness: 1.0mm,1.2mm(smooth), 1.5mm,1.8mm(textured)
4. Appearance/surface: smooth/textured

What is Geocell?

Geocell is a mesh cell structure formed by high-strength HDPE broadband and strong welding. The utility model can be retracted freely, can be folded during transportation, and can be opened and filled with earth rock or concrete materials when in use to form a structure with strong lateral restriction and large stiffness. It can be used as cushion to treat soft foundation and increase the bearing capacity of foundation. It can also be laid on slope to form broken surface protection structure, and can also be used to build retaining structure, etc. This material is also very convenient for construction.

Geocell Confinement System Characteristic

1. High strength and small deformation;
2. Small creep;
3. corrosion resistance and long life: steel plastic geogrid with plastic material as protective layer, with various auxiliaries to make it have anti-aging, oxidation properties, acid, alkali, salt and other harsh environment corrosion. Therefore, the steel plastic geogrid can meet the use needs of various permanent projects for more than 100 years, with excellent performance and good dimensional stability.
4. Convenient and fast construction, short period and low cost: the steel plastic geogrid is easy to lay, lap, locate and level, avoiding overlap and intersection, which can effectively shorten the project cycle and save 10% - 50% of the project cost.

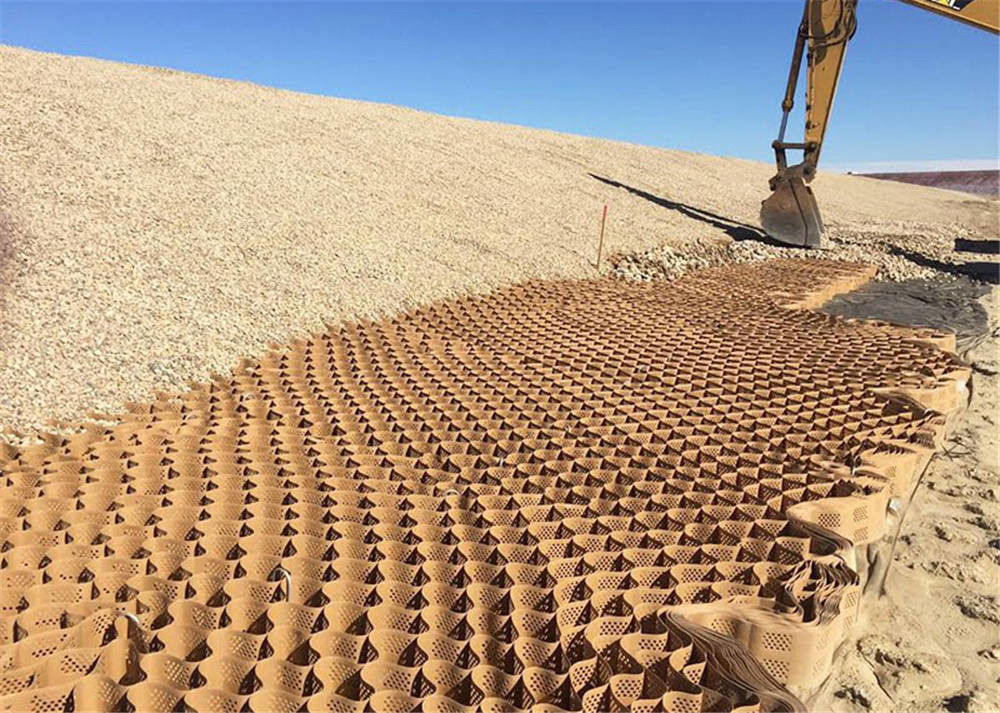

Application

Once the load acts on the subgrade, a wedge-shaped active area will be formed under the load, which will be squeezed through the transition area, so as to uplift the passive area. In other words, the bearing capacity of the foundation is determined by the shear force along the slip line and the forces moving the active, transition and passive areas. The real process of the above principles can be clearly realized not only on the sand base, but also on the soft foundation highway, but its formation rate is slower than that on the sand. Even better subgrade materials cannot avoid lateral movement. General highway subgrade is several meters higher than the ground, so it is not easy to absorb water and churn, but long-term settlement still exists. The reason is that rainwater infiltration, material loss and base subsidence are some of the reasons. Under the action of long-term rolling and vibration force of wheel load, the lateral displacement of materials to both sides of subgrade section is undeniably another very important reason. Taking highways at all levels in our province as an example, it can be clearly felt that the pavement has been pressed out of an "s" shaped ditch belt on the main carriageway of the road. Some expressways are no exception. The bumping of cars on the carriageway is obviously stronger than that on the overtaking belt, especially in the road bridge connection section (commonly known as "bridgehead jumping"). This kind of ditch subgrade settlement is a typical example of lateral slip of subgrade materials.

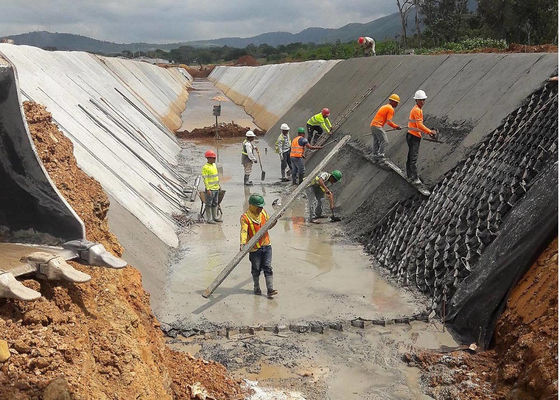

Laying method

Precautions for geocell construction
1. The hole forming position of the anchor rod must be located above the diagonal of the cell to ensure that the cell clock can be transmitted to the anchor rod.
2. The cells must be completely connected with each other to form a piece and connect as a whole.

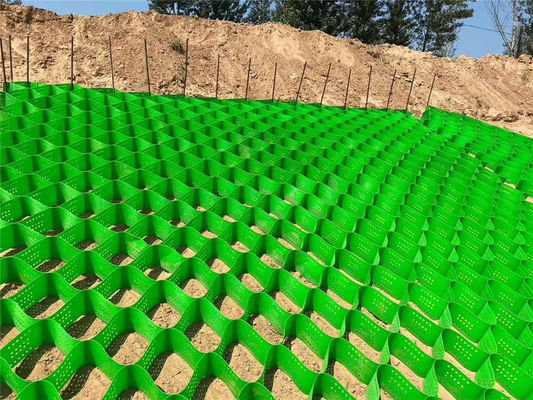

3. In order to prevent the scouring of water flow on the cell, a waterproof ridge is built on the top of the slope to prevent rainwater from pouring into the cell from the top of the slope and dredge the place where the drainage is not unblocked in time.

About Hengquan

  We have experience for more than 7 years. There are two product lines for geogrid and geocell.  Factory work 24hours a day, we sold more than 100,000,000rmb last year(2020). Our customers are all over the world.

Factory  and Equipment:

Product inventory:

Application:

Certifications

Our Company



Year of Registration: 2014

Place of Registration: China

Registrated Capital: CNY105,000,000.00

Briture Co., Ltd

was approved by Chinese Bureau of Commerce

Download PDF: Catalog of Hengquan - geocell.pdf
