1420n 1.2mm Geocell Confinement System Hdpe Gravel Stabilizer Grid

HDPE Geocell for Retaining Wall Road Construction Low Cost Gravel Stabilizer Grid

Brief Introduction of  Geocell Confinement System

  Geocell Confinement System--also known as Cellular Confinement System(CCS), it is a kind of three-dimensional network structure shaped by high-strength HDPE (high density polyethylene) sheets through ultrasonic welding of high strength. The depth of the geocells as well as the size of each cellular unit can vary as per design requirements. The surface of geocells are smooth or textured, the textured geocells increase soil-geocell wall friction. Geocells can be perforated or non-perforated. If the depth of geocell is over 10cm, the geocell can be perforated, the geocell wall is punctured to assist in immediate dissipation of developed porewater pressures due to increased stresses within the infill of the individual cells.

Geocell Confinement System Specification

1. Cell depth: 50mm,100mm,150mm,200mm,250mm,300mm
2. Welding distance: 330mm~1600mm
3. Thickness: 1.0mm,1.2mm(smooth), 1.5mm,1.8mm(textured)
4. Appearance/surface: smooth/textured

What is Geocell?

Geocell is a new type of high-strength geosynthetics popular at home and abroad. It is a three-dimensional mesh cell structure formed by REINFORCED HDPE sheet material and high-strength welding. The utility model has the advantages of flexible expansion, retractable transportation and folding. During construction, it can be tensioned into a network and filled with loose materials such as soil, gravel and concrete to form a structure with strong lateral restriction and large stiffness. It has the characteristics of light material, wear resistance, stable chemical properties, light and oxygen aging resistance, acid and alkali resistance, etc. Due to its high lateral restriction and anti-skid, anti deformation, effective enhancement of subgrade bearing capacity and scattered load, it is widely used in: cushion, stable railway subgrade, stable highway soft foundation treatment, supporting structure of pipeline and sewer, mixed retaining wall to prevent landslide and load gravity, desert, beach, riverbed, river Bank treatment, etc.

Geocell Confinement System Characteristic

Product features: 1. It can be retracted and folded during transportation. During construction, it can be tensioned into a network and filled with loose materials such as soil, gravel and concrete to form a structure with strong lateral restriction and large stiffness. 2. Light material, wear-resistant, stable chemical properties, light and oxygen aging resistance, acid and alkali resistance, suitable for different soil conditions such as soil and desert. 3. High lateral restriction and anti-skid, anti deformation, effectively enhance the bearing capacity of subgrade and disperse load. 4. Changing the geometric dimensions such as geocell height and welding distance can meet the needs of different projects, with flexible expansion, small transportation volume, convenient connection and fast construction speed.

Application

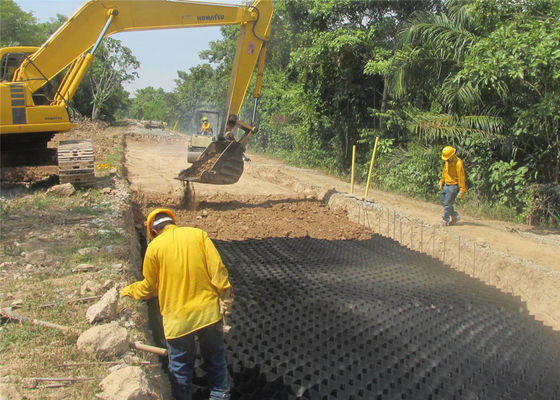

Soft soil foundation reinforcement, retaining wall and pavement anti crack engineering of highway, railway, abutment, approach road, wharf, dam, slag yard, etc.
Engineering function:
1. It has high strength, low creep and can adapt to all kinds of environmental soil, which can fully meet the use of tall retaining wall in high-grade highway.
2. It can effectively improve the interlocking and bite effect of the reinforced bearing surface, greatly enhance the bearing capacity of the foundation, effectively restrict the lateral displacement of the soil, and enhance the stability of the foundation.
3. Compared with the traditional grid, it has the characteristics of high strength, strong bearing capacity, corrosion resistance, anti-aging, large friction coefficient, uniform holes, convenient construction and long service life.
4. It is more suitable for deep-sea operation and embankment reinforcement, and fundamentally solves the technical problems such as low strength, poor corrosion resistance and short service life caused by long-term seawater erosion of gabions made of other materials.
5. It can effectively avoid construction damage caused by rolling and damage by machines and tools during construction

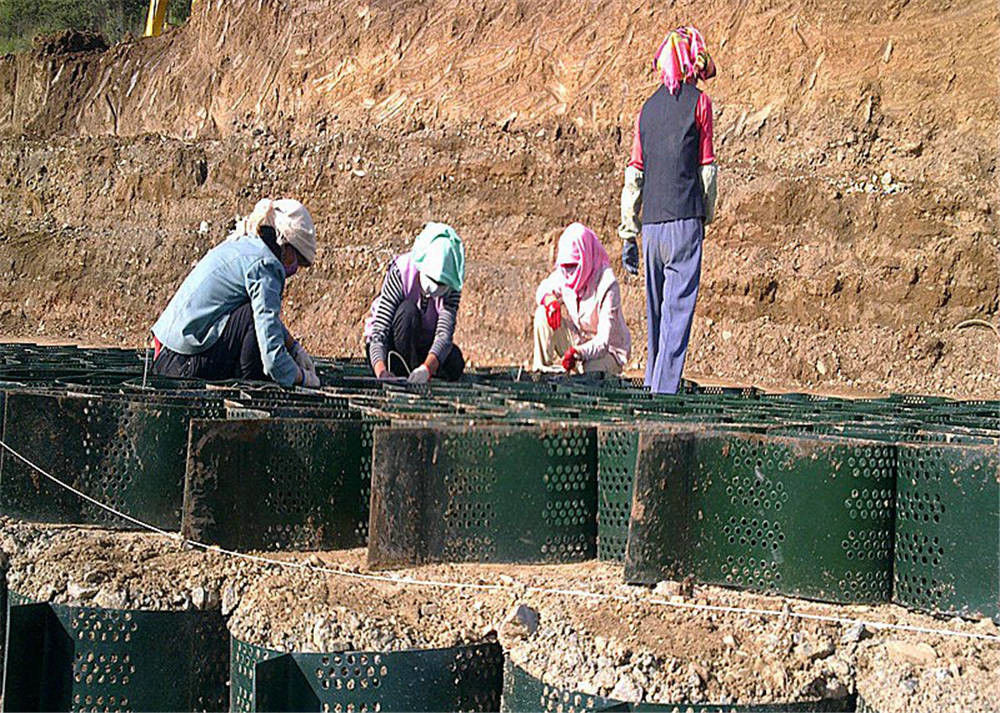

Laying method

Construction method of geocell:
1. Broken surface leveling: the flatness of slope surface is related to the success or failure of grass planting protection in geocell. When the slope surface is uneven, the laying of geocell is easy to produce stress concentration, resulting in cracking of cell solder joints, resulting in cell stepping, etc. Therefore, the slope must be leveled to the design requirements, and the slope shall be repaired manually to remove the pumice and dangerous stones on the slope.
2. The main drainage ditch system shall be set on the side slope of the paved cell: a distance of 4m shall be maintained between two adjacent ditches, and the drainage ditch shall be connected with the highway side ditch, so that the road area water flows into the drainage channel along the side ditch and into the edge of the highway, so as to prevent the road area water from scouring the cell slope protection.
3. Laying direction: the cell shall be laid from top to bottom in the main stress direction to make the cell sheet perpendicular to the highway subgrade. Never lay horizontally.

About Hengquan

  We have experience for more than 7 years. There are two product lines for geogrid and geocell.  Factory work 24hours a day, we sold more than 100,000,000rmb last year(2020). Our customers are all over the world.

Factory  and Equipment:

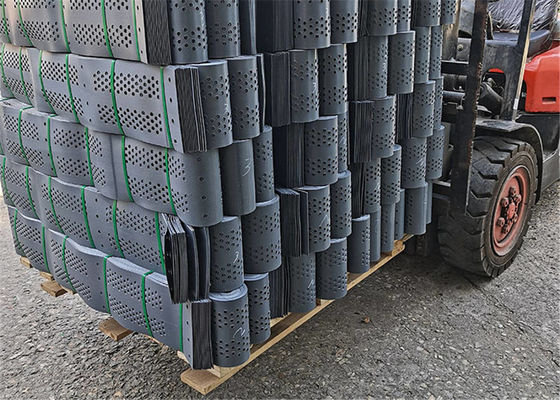

Product inventory:

Application:

Certifications

Our Company



Year of Registration: 2014

Place of Registration: China

Registrated Capital: CNY105,000,000.00

Briture Co., Ltd

was approved by Chinese Bureau of Commerce

Download PDF: Catalog of Hengquan - geocell.pdf
