Place of Origin: | China |
Brand Name: | Hengquan |
Certification: | ISO 9001 |
Model Number: | Cell Height:50-250mm |
Minimum Order Quantity: | 1000m2 |
---|---|
Price: | 1usd/Squre meter, Other types need to Deliberation |
Packaging Details: | packing belt |
Delivery Time: | 5-8 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 40000 Squre meters per week |
Name: | Geocell Confinement System | Description: | Hot Core Gravel Stabilizer Plastic Geocell Gravel Grid |
---|---|---|---|
Weld Spacing: | 400mm | Seam Peel Strength: | 1420N |
Thickness: | 1.0mm | Surface: | Textured |
Cell Height: | 50mm | Material: | HDPE |
Package: | Plastic Packing Belts | Function: | Stabilizing Railway Subgrade/Control Of Desert And River |
High Light: | 1.5mm thick driveway geocell,driveway geocell erosion control,erosion control geocell gravel |
Plastic Geocells Mesh Gravel Ground Grid Geocell For Erosion Control Hdpe Honeycomb
Brief Introduction of Geocell Confinement System

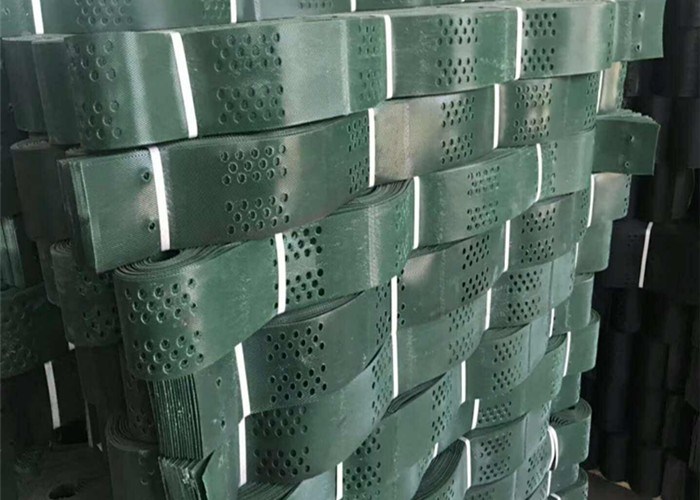

Geocell Confinement System--also known as Cellular Confinement System(CCS), it is a kind of three-dimensional network structure shaped by high-strength HDPE (high density polyethylene) sheets through ultrasonic welding of high strength. The depth of the geocells as well as the size of each cellular unit can vary as per design requirements. The surface of geocells are smooth or textured, the textured geocells increase soil-geocell wall friction. Geocells can be perforated or non-perforated. If the depth of geocell is over 10cm, the geocell can be perforated, the geocell wall is punctured to assist in immediate dissipation of developed porewater pressures due to increased stresses within the infill of the individual cells.
Geocell Confinement System Specification
Specification | cell height (MM) | welding spacing: (MM) | welding spacing: (MM) | weld tensile strength: (KN) |
GS20 | 200 | 400 | 25 | 2 |
330 | ||||
GS15 | 150 | 400 | 25 | 1.5 |
330 | ||||
GS10 | 100 | 1000 | 25 | 1 |
470 | ||||
400 | ||||
330 | ||||
GS8 | 80 | 1000 | 25 | 0.8 |
470 | ||||
400 | ||||
330 | ||||
GS5 | 50 | 470 | 25 | 0.5 |
400 | ||||
330 |
Geocell Confinement System Characteristic
1. High strength and small deformation;
2. Small creep;
3. corrosion resistance and long life: steel plastic geogrid with plastic material as protective layer, with various auxiliaries to make it have anti-aging, oxidation properties, acid, alkali, salt and other harsh environment corrosion. Therefore, the steel plastic geogrid can meet the use needs of various permanent projects for more than 100 years, with excellent performance and good dimensional stability.
4. Convenient and fast construction, short period and low cost: the steel plastic geogrid is easy to lay, lap, locate and level, avoiding overlap and intersection, which can effectively shorten the project cycle and save 10% - 50% of the project cost.
Application
Soft soil foundation reinforcement, retaining wall and pavement anti crack engineering of highway, railway, abutment, approach road, wharf, dam, slag yard, etc.
Engineering function:
1. It has high strength, low creep and can adapt to all kinds of environmental soil, which can fully meet the use of tall retaining wall in high-grade highway.
2. It can effectively improve the interlocking and bite effect of the reinforced bearing surface, greatly enhance the bearing capacity of the foundation, effectively restrict the lateral displacement of the soil, and enhance the stability of the foundation.
3. Compared with the traditional grid, it has the characteristics of high strength, strong bearing capacity, corrosion resistance, anti-aging, large friction coefficient, uniform holes, convenient construction and long service life.
4. It is more suitable for deep-sea operation and embankment reinforcement, and fundamentally solves the technical problems such as low strength, poor corrosion resistance and short service life caused by long-term seawater erosion of gabions made of other materials.
5. It can effectively avoid construction damage caused by rolling and damage by machines and tools during construction
Laying method
Construction method of geocell:
1. Broken surface leveling: the flatness of slope surface is related to the success or failure of grass planting protection in geocell. When the slope surface is uneven, the laying of geocell is easy to produce stress concentration, resulting in cracking of cell solder joints, resulting in cell stepping, etc. Therefore, the slope must be leveled to the design requirements, and the slope shall be repaired manually to remove the pumice and dangerous stones on the slope.
2. The main drainage ditch system shall be set on the side slope of the paved cell: a distance of 4m shall be maintained between two adjacent ditches, and the drainage ditch shall be connected with the highway side ditch, so that the road area water flows into the drainage channel along the side ditch and into the edge of the highway, so as to prevent the road area water from scouring the cell slope protection.
3. Laying direction: the cell shall be laid from top to bottom in the main stress direction to make the cell sheet perpendicular to the highway subgrade. Never lay horizontally.
About Hengquan
We have experience for more than 7 years. There are two product lines for geogrid and geocell. Factory work 24hours a day, we sold more than 100,000,000rmb last year(2020). Our customers are all over the world.
Factory and Equipment:
Product inventory:
Application:
