1420N Erosion Control Hdpe Honeycomb Gravel Ground Grid

Plastic Geocells Mesh Gravel Ground Grid Geocell For Erosion Control Hdpe Honeycomb

Brief Introduction of  Geocell Confinement System

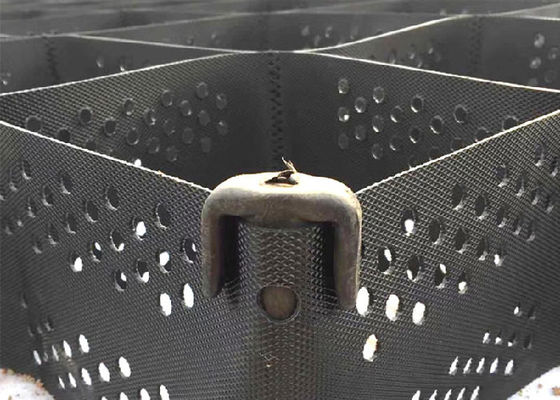

Geocell Confinement System--also known as Cellular Confinement System(CCS), it is a kind of three-dimensional network structure shaped by high-strength HDPE (high density polyethylene) sheets through ultrasonic welding of high strength. The depth of the geocells as well as the size of each cellular unit can vary as per design requirements. The surface of geocells are smooth or textured, the textured geocells increase soil-geocell wall friction. Geocells can be perforated or non-perforated. If the depth of geocell is over 10cm, the geocell can be perforated, the geocell wall is punctured to assist in immediate dissipation of developed porewater pressures due to increased stresses within the infill of the individual cells.

Geocell Confinement System Specification

1. Cell depth: 50mm,100mm,150mm,200mm,250mm,300mm
2. Welding distance: 330mm~1600mm

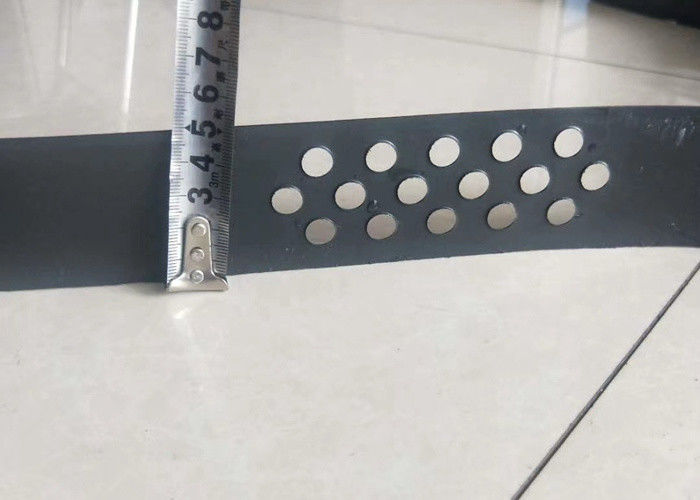

3. Thickness: 1.0mm,1.2mm(smooth), 1.5mm,1.8mm(textured)
4. Appearance/surface: smooth/textured

Geocell Confinement System working principle

The principle of geocell is a honeycomb three-dimensional limit system, which may significantly improve the function of individual filling data in bearing in a large scope. Its principle is three-dimensional limit. Under the action of concentrated load, the active area is compressed and sunk, and the force is decomposed to both sides and transferred to the transition area, and the moderate area is transferred to the passive area. The passive area will deform and uplift

Geocell Confinement System Characteristic

The geocell is light in material, wear-resistant, strong in chemical function, resistant to light and oxygen aging, acid and alkali resistance, which is applicable to different soil and desert soil conditions. Geocell is a kind of three-dimensional reticulated cell structure, which is made of REINFORCED HDPE sheet material and highly welded. High lateral limit with anti-skid, anti deformation, effectively strengthen the bearing capacity of subgrade and evacuation load.

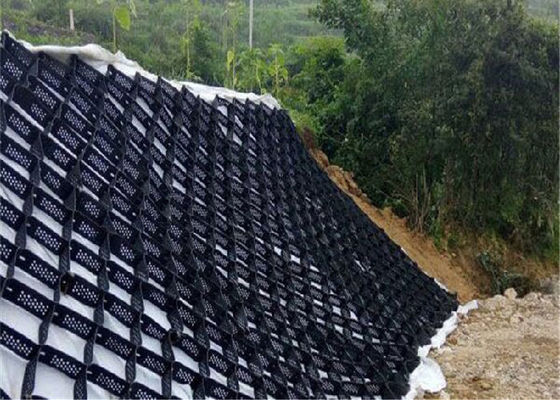

Application of Geocell Confinement System:

Treatment of half fill and half cut Subgrade

  When building an embankment on a slope with a natural gradient of more than 1:5, steps shall be excavated at the base of the embankment, and the width of the steps shall not be less than 1m. When the road is constructed or reconstructed by stages and widened, new steps shall be excavated Steps should be excavated at the junction of the old subgrade filling slope. The width of high-grade highway steps is generally 2m. Geocells should be laid on the horizontal surface of each step, and geocells should be used for self excavation

The lateral reinforcement effect of the body facade can better solve the problem of uneven settlement.

About Hengquan

  We have experience for more than 10 years. There are two product line for geogrid and geocell.  Factory work 24hours a day, we sold more than 100,000,000rmb last year(2020). Our customers are all over the world.

Factory  and Equipment:

Product inventory:

Application:

Download PDF: Catalog of Hengquan - geocell.pdf
