Black Road Grid Hdpe Honeycomb Geocell Gravel 1.0mm Thickness

Hdpe Geocell Price Black Road Gravel Grid Geocell Hdpe Honeycomb Gravel Paving Geocell

Brief Introduction of  Geocell Confinement System

Geocell Confinement System--also known as Cellular Confinement System(CCS), it is a kind of three-dimensional network structure shaped by high-strength HDPE (high density polyethylene) sheets through ultrasonic welding of high strength. The depth of the geocells as well as the size of each cellular unit can vary as per design requirements. The surface of geocells are smooth or textured, the textured geocells increase soil-geocell wall friction. Geocells can be perforated or non-perforated. If the depth of geocell is over 10cm, the geocell can be perforated, the geocell wall is punctured to assist in immediate dissipation of developed porewater pressures due to increased stresses within the infill of the individual cells.

There is no need to repeat the conventional method of subgrade treatment in engineering. Its purpose is to improve the shear resistance and friction of foundation materials, reduce or delay the ability of foundation materials to move under the pressure or vibration of load. Therefore, there must be many strict restrictions on the requirements of materials in engineering. If the required materials cannot be obtained nearby, they need to be purchased, The cost of purchasing materials and transportation accounts for a large part of the whole project cost. The geocell can be used to collect materials locally or nearby, or even materials that cannot be used under normal circumstances, so as to greatly reduce the material purchase cost and transportation cost.

Geocell Confinement System Specification

1. Cell depth: 50mm,100mm,150mm,200mm,250mm,300mm
2. Welding distance: 330mm~1600mm
3. Thickness: 1.0mm,1.2mm(smooth), 1.5mm,1.8mm(textured)
4. Appearance/surface: smooth/textured

Geocell Confinement System working principle

The principle of geocell is a honeycomb three-dimensional limit system, which may significantly improve the function of individual filling data in bearing in a large scope. Its principle is three-dimensional limit. Under the action of concentrated load, the active area is compressed and sunk, and the force is decomposed to both sides and transferred to the transition area, and the moderate area is transferred to the passive area. The passive area will deform and uplift

Geocell Confinement System Characteristic

The geocell is light in material, wear-resistant, strong in chemical function, resistant to light and oxygen aging, acid and alkali resistance, which is applicable to different soil and desert soil conditions. Geocell is a kind of three-dimensional reticulated cell structure, which is made of REINFORCED HDPE sheet material and highly welded. High lateral limit with anti-skid, anti deformation, effectively strengthen the bearing capacity of subgrade and evacuation load.

Application of Geocell Confinement System:

1. Used for all kinds of road building, driveways, soil stabilization and

2. Used to stabilize river embankments.

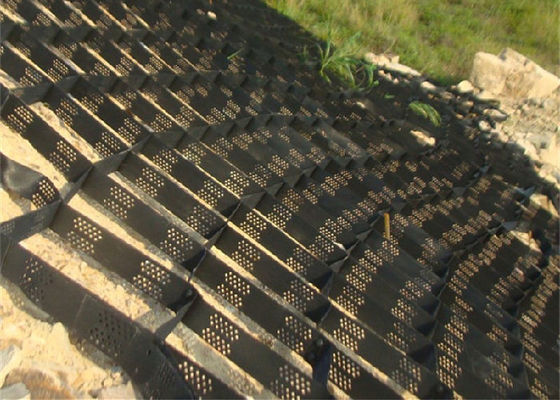

3. Used to prevent landslides.

4. used as independent wall, wharf and breakwater, etc.
5.used for the regulation of the desert, beaches, riverbed and riverbank.

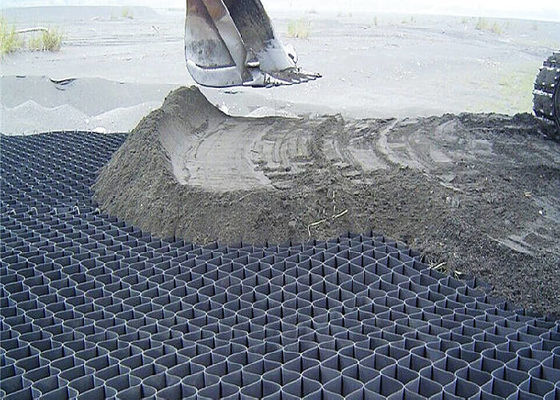

6. It can expand and contract freely, transport can be folded, and can be stretched into a network during construction. It can be filled with loose materials such as soil, gravel and concrete to form a structure with strong lateral restriction and large stiffness.

7. The material is light, wear-resistant, stable chemical properties, resistant to light and oxygen aging, acid and alkali, suitable for different soil and desert conditions.

8. High lateral limit and anti-skid, anti deformation, effectively enhance the bearing capacity of subgrade and disperse load.

9. The change of geocell height, welding distance and other geometric dimensions can meet different engineering needs.

10. Flexible, small transportation volume, convenient connection and fast construction speed.

About Hengquan

  We have experience for more than 10 years. There are two product line for geogrid and geocell.  Factory work 24hours a day, we sold more than 100,000,000rmb last year(2020). Our customers are all over the world.

Factory  and Equipment:

Product inventory:

Application:

Download PDF: Catalog of Hengquan - geocell.pdf
