Anping County Hengquan Metal Wire Mesh Products Co.,Ltd
geogrids, geotextiles, geocells, geomembrane, chain link fence , welded wire mesh panel, hexagonal wire netting
 |
| Place of Origin: | China |
| Brand Name: | Hengquan |
| Certification: | ISO 9001 |
| Model Number: | Cell Height: 50mm |
| Minimum Order Quantity: | 1000m2 |
|---|---|
| Price: | 1usd/Squre meter, Other types need to Deliberation |
| Packaging Details: | packing belt |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 40000 Squre meters per week |
| Name: | Geocell Confinement System | Weld Spacing: | 400mm |
|---|---|---|---|
| Seam Peel Strength: | 1420N | Thickness: | 1.0mm |
| Surface: | Textured | Cell Height: | 50mm |
| Package: | Plastic Packing Belts | Warranty: | 1 Year |
| Single Package Size: | Single Package Size | Color: | Black Yellow White Green |
| High Light: | 300mm height geocell grid,50mm height geocell grid,geocell grid gravel stabilizer |
||
50-300mm Height Vegetation Retaining Wall Grid Geocell Gravel Stabilizer
Brief Introduction of Geocell Confinement System

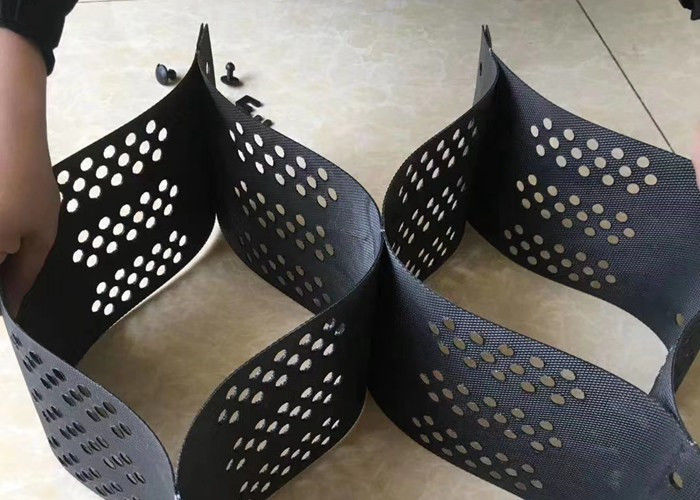

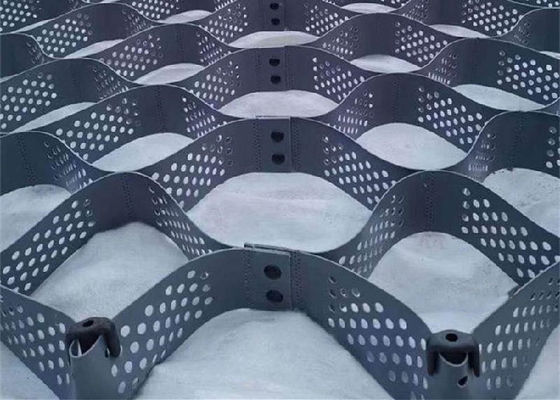

Geocell Confinement System--also known as Cellular Confinement System(CCS), it is a kind of three-dimensional network structure shaped by high-strength HDPE (high density polyethylene) sheets through ultrasonic welding of high strength. The depth of the geocells as well as the size of each cellular unit can vary as per design requirements. The surface of geocells are smooth or textured, the textured geocells increase soil-geocell wall friction. Geocells can be perforated or non-perforated. If the depth of geocell is over 10cm, the geocell can be perforated, the geocell wall is punctured to assist in immediate dissipation of developed porewater pressures due to increased stresses within the infill of the individual cells.
Geocell Confinement System Specification
| Specification | cell height (MM) | welding spacing: (MM) | welding spacing: (MM) | weld tensile strength: (KN) |
| GS20 | 200 | 400 | 25 | 2 |
| 330 | ||||
| GS15 | 150 | 400 | 25 | 1.5 |
| 330 | ||||
| GS10 | 100 | 1000 | 25 | 1 |
| 470 | ||||
| 400 | ||||
| 330 | ||||
| GS8 | 80 | 1000 | 25 | 0.8 |
| 470 | ||||
| 400 | ||||
| 330 | ||||
| GS5 | 50 | 470 | 25 | 0.5 |
| 400 | ||||
| 330 |
Geocell Confinement System Characteristic
The geocell is light in material, wear-resistant, strong in chemical function, resistant to light and oxygen aging, acid and alkali resistance, which is applicable to different soil and desert soil conditions. Geocell is a kind of three-dimensional reticulated cell structure, which is made of REINFORCED HDPE sheet material and highly welded. High lateral limit with anti-skid, anti deformation, effectively strengthen the bearing capacity of subgrade and evacuation load.
1. It can expand and contract freely, transport can be folded, and can be stretched into a network during construction. It can be filled with loose materials such as soil, gravel and concrete to form a structure with strong lateral restriction and large stiffness.
2. The material is light, wear-resistant, stable chemical properties, resistant to light and oxygen aging, acid and alkali, suitable for different soil and desert conditions.
3. High lateral limit and anti-skid, anti deformation, effectively enhance the bearing capacity of subgrade and disperse load.
4. The change of geocell height, welding distance and other geometric dimensions can meet different engineering needs.
5. Flexible, small transportation volume, convenient connection and fast construction speed.

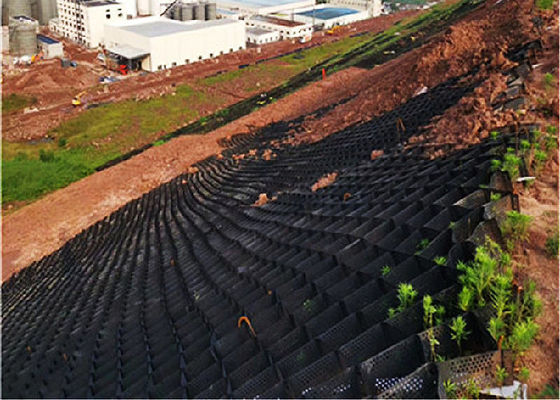

Application of Geocell Confinement System:
1. Used for all kinds of road building, driveways, soil stabilization and
2. Used to stabilize river embankments.
3. Used to prevent landslides.
4. used as independent wall, wharf and breakwater, etc.
5.used for the regulation of the desert, beaches, riverbed and riverbank.
About Hengquan
We have experience for more than 10 years. There are two product line for geogrid and geocell. Factory work 24hours a day, we sold more than 100,000,000rmb last year(2020). Our customers are all over the world.
Factory and Equipment:
Product inventory:
Application:
Download PDF: Catalog of Hengquan - geocell.pdf
Feel free to contact.
