Anping County Hengquan Metal Wire Mesh Products Co.,Ltd
geogrids, geotextiles, geocells, geomembrane, chain link fence , welded wire mesh panel, hexagonal wire netting
 |
| Place of Origin: | China |
| Brand Name: | Hengquan |
| Certification: | ISO 9001 |
| Model Number: | TGSG15,TGSG20,TGSG25,TGSG30,TGSG35,TGSG40,TGSG45,TGSG50 |
| Minimum Order Quantity: | 1000m2 |
|---|---|
| Price: | Deliberation |
| Packaging Details: | packing belt |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 40000M2 per week |
| Material: | Polypropylene | Width: | 3.9meters Or 5.9 Meters |
|---|---|---|---|
| Length: | 50 Meters | Color: | Black, Gray, Green |
| Tensile Strength: | TGSG15-15KN | Applications: | Circle The Corn |
| Type: | Geogrids | ||
| High Light: | corn corral biaxial plastic geogrid,3.9m width biaxial plastic geogrid,biaxial polypropylene geogrid |
||

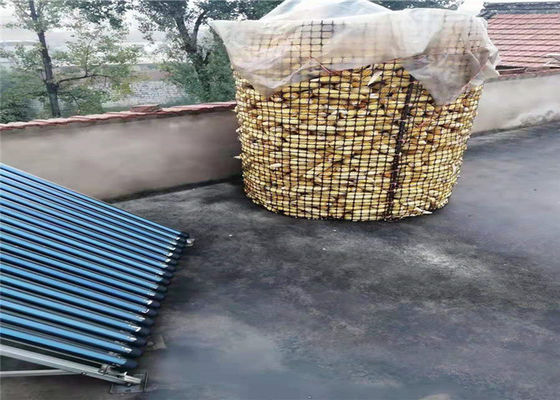

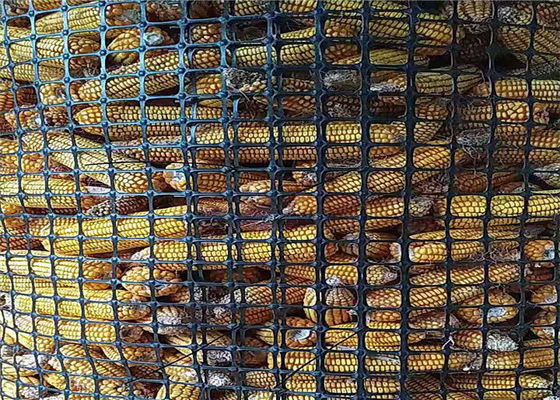

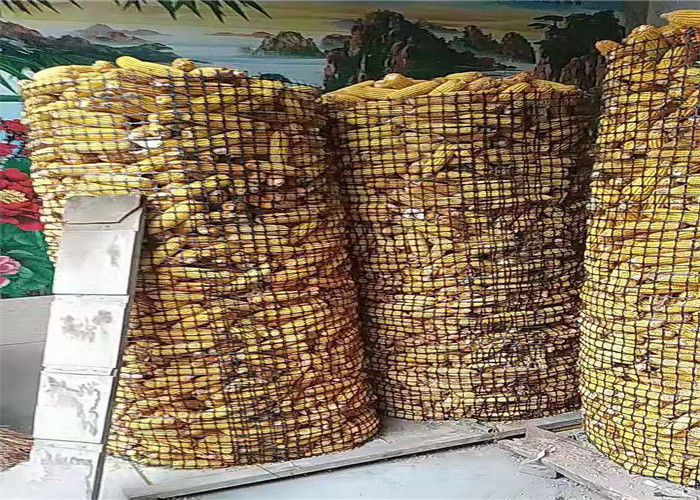

Corn Corral Biaxial Plastic Net Garden Geogrid Poultry Farming Biaxial Plastic Geogrid
Biaxial Plastic Geogrid Introduction
Plastic geogrid is a kind of polymer net material with square formed by stretching, which takes polymer as main raw material. It is generally divided into one-way tensile geogrid (tgdg Series) and two-way tensile geogrid (tgsg Series), which is mainly used for highway subgrade reinforcement, landslide, landslide repair and soil erosion control. The construction of embankment subgrade on steep slope is reinforced by geogrid,
Biaxial Plastic Geogrid Specification
| project | TGSG15-15 | TGSG20-20 | TGSG25-25 | TGSG30-30 | TGSG40-40 | TGSG45-45 | TGSG50-50 |
| Longitudinal tensile yield force KN/m | 15 | 20 | 25 | 30 | 40 | 45 | 50 |
| Transverse tensile yield force KN/m | 15 | 20 | 25 | 30 | 40 | 45 | 50 |
| Tensile Strength @2% Strain KN/m | 5 | 7 | 9 | 10.5 | 14 | 16 | 17.5 |
| Tensile Strength @5% Strain KN/m | 7 | 14 | 17 | 21 | 28 | 32 | 35 |
| Roll width | 3.95 or 5.95 meters | ||||||
| Roll Length | 50 meters | ||||||
Biaxial Plastic Geogrid Feature
When geogrid is embedded in soil, asphalt, sediment and other media, each node and rib of geogrid provides a series of bearing points and anchor points for load transmission. When geogrid is affected by medium, geogrid can obtain enough stress by small displacement, not only by friction between the surface of Geogrid and medium, but also by meshing and interlocking between grid and medium to obtain greater stress. Thus, a high-efficiency stress transfer and reaction mechanism is formed, which can give full play to the maximum reinforcement effect of geogrid, and reduce the anchoring length to the minimum.
WHY US?
1,Diversified samples available.
2,Professional product selection advice.
3,Consistant good quality with guarantee.
4,Reasonable price & do customization for you.
5,Laudable lead-time and shipment control.
