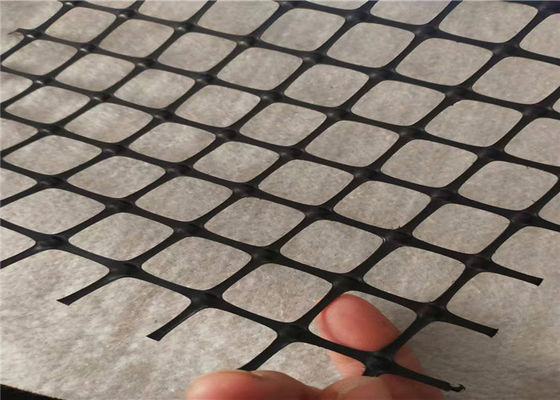

Layfield Construction Anti Aging Biaxial Plastic Geogrid 20 KN

Layfield Construction High Strength Anti Aging Biaxial Plastic Geogrid


Biaxial Plastic Geogrid Introduction


PP Biaxial Geogrid is made of virgin Polypropylene(PP) and carbon black, produced through extruding, punching, heating, longitudinal stretching, transverse stretching. It has high tensile strength, excellent interlock capacity and low creep deformation.


Biaxial Plastic Geogrid Specification


Biaxial Plastic Geogrid features

1.High tension resistance, high plane torsion resistance modulus, good creep resistance and stable chemical nature.
2.High mechanic damage resistance and durability and large friction factor with sandy stone.
3. Improve the bearing capacity of the roadbed and extend the service life of the roadbed.
4. It can decrease 30%-40% of filling thickness for reaching same effect, save cost.
5. Convenient construction, saving effort, shortening construction period and reducing maintenance cost.

Biaxial Plastic Geogrid Application


1. Pavement treatment

The plastic geogrid can effectively distribute the load to the wider subbase, so the thickness of the base can be reduced by 50%, and the service life can be extended by three times. The plastic geogrid can also improve the ability of the base to bear the reciprocating load, and reduce the pumping effect of the reciprocating load on the base and the bottom. The plastic geogrid used to reinforce highway pavement should be laid in the lower part of surface course or base course.

2. Reinforced support works

The friction effect of plastic geogrid in soil is much larger than that of other reinforced members. At the same time, the grid is mat shaped, which can fully contact with soil, resulting in greater isolation and reinforcement effect. Therefore, the plastic geogrid is an ideal component of reinforced retaining wall. The reinforced retaining wall constructed by plastic geogrid can reduce the lateral pressure on the wall, thus greatly reducing the lateral deformation of the wall, making the whole reinforced retaining wall more stable and beautiful. In addition, the plastic geogrid is easier to lay and install than the geogrid, with a faster construction speed and easier to obtain the construction quality Guarantee.
