Net Cell Strong Welding Geocell Confinement System For Dike

It Is Used For Dike And Shallow River Regulation Under Gravity Of hdpe Geocell Confinement System

Brief Introduction of  Geocell Confinement System

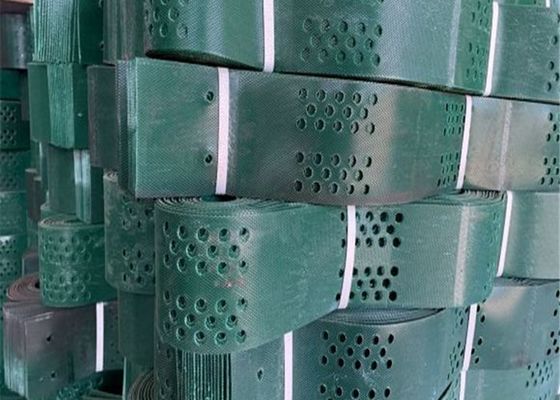

Geocell is a net cell structure formed by high strength HDPE broadband and strong welding. It can stretch freely, shrink and fold when transporting, open and fill with earth rock or concrete material when in use, forming a structure with strong lateral restriction and large stiffness. It can be used as cushion to deal with soft foundation and increase the bearing capacity of foundation. It can also be laid on the slope to form slope protection structure. It can also be used to build retaining structure.

Geocell Confinement System Specification

1.Cell depth: 50mm,100mm,150mm,200mm,250mm,300mm
2. Welding distance: 330mm~1600mm
3. Thickness: 1.0mm,1.2mm(smooth), 1.5mm,1.8mm(textured)
4. Appearance/surface: smooth/textured

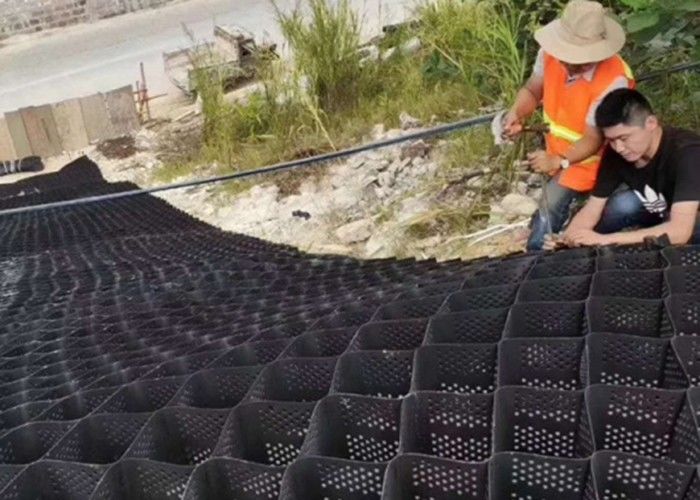

Geocell Confinement System construction method:

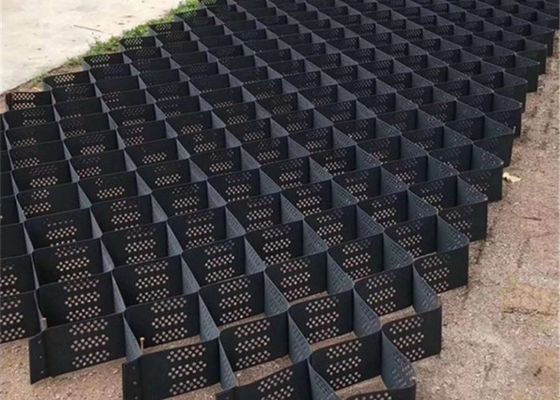

1, Open the geocell.
2,Fixed with nails or connected with the framework of stretching device.
3, Fill the particle filler until the full and beyond standard room to the top, then vibrate or roll to finish the primary work.
4,At this point, cell chamber system can support all kinds of construction equipment. The construction can be done directly in the above.

Geocell Confinement System Features:

1)Retractable and small loading volume, convenient joint, speed construction.

2)Local material can be used during construction, reduce the construction cost, easy to be transported after folding together.

3)Geocells are easy to install and do not require skilled labour.They can be installed in any weather condition.

 4)The in-fill has essentially to be non-cohesion material,however the material could be recycled material.

Applications of Geocell Confinement System:

1. used as independent wall, wharf and breakwater, etc.
2.used for the regulation of the desert, beaches, riverbed and riverbank.

3. Using Geocell construction can greatly reduce labor intensity and reduce the thickness of the roadbed, construction speed, good performance and greatly reduce the project cost.

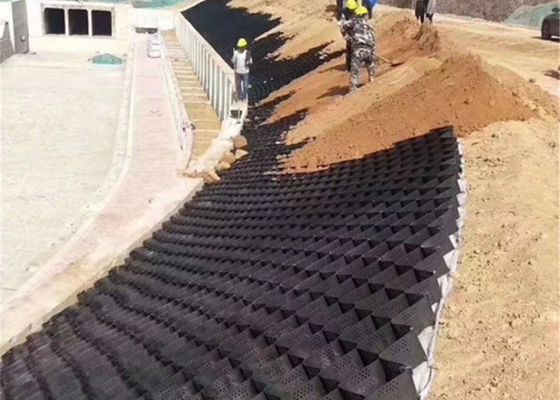

4.Used to foster vegetation along slopes,which would provide further erosion protection.

5.Geocells have also been effective to nurture grass on beach sand and prevent erosion of the sand.
