Height 200mm 1100N Geocell Confinement System For River Regulation

Used For Dike And Shallow River Regulation Under Gravity Geocell Confinement System

Brief Introduction of  Geocell Confinement System

Geocell is a net cell structure formed by high strength HDPE broadband and strong welding. It can stretch freely, shrink and fold when transporting, open and fill with earth rock or concrete material when in use, forming a structure with strong lateral restriction and large stiffness. It can be used as cushion to deal with soft foundation and increase the bearing capacity of foundation. It can also be laid on the slope to form slope protection structure. It can also be used to build retaining structure.

Material selection of Geocell Confinement System manufacturer

The material selection of geocell manufacturers directly affects the performance of geocell products. Therefore, it is required that the material has good impact toughness, good environmental resistance and stable performance in long-term use.

Geocell Confinement System working principle

The principle of geocell is a honeycomb three-dimensional limit system, which may significantly improve the function of individual filling data in bearing in a large scope. Its principle is three-dimensional limit. Under the action of concentrated load, the active area is compressed and sunk, and the force is decomposed to both sides and transferred to the transition area, and the moderate area is transferred to the passive area. The passive area will deform and uplift

Geocell Confinement System Characteristic

Geocell is a kind of engineering data which is widely used and engineering mechanical function has been improved. It has the advantages of flexible expansion, small transportation volume, convenient connection and fast construction speed. It has been used in some foreign projects for a long time, and geocell manufacturers have been gradually promoting it in recent years. It is mainly used in soft foundation treatment of engineering, foundation bed reinforcement of railway and highway, greening of river slope, jumping bridge head of bridge joint, greening of river dam slope, reinforcement and anti-corrosion, etc.

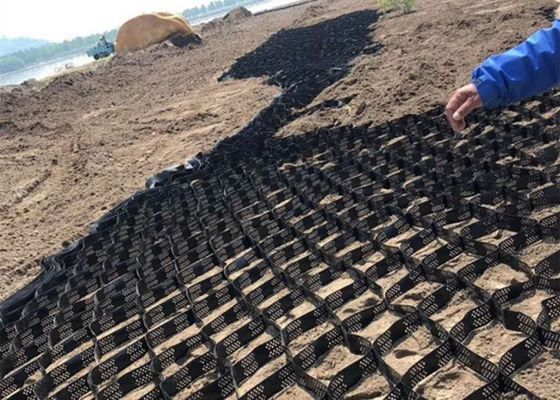

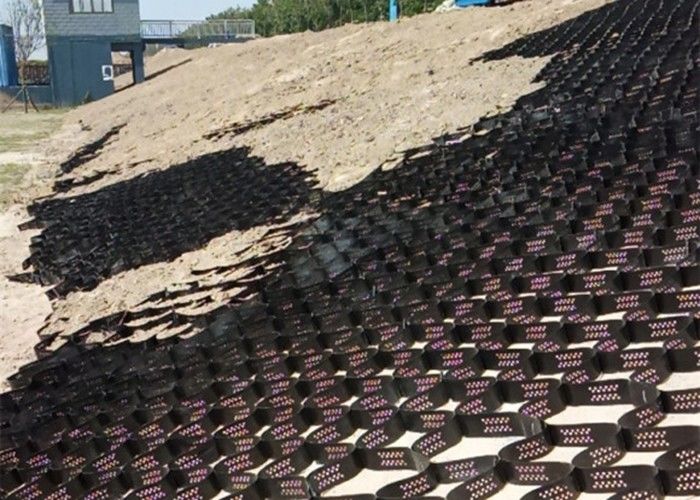

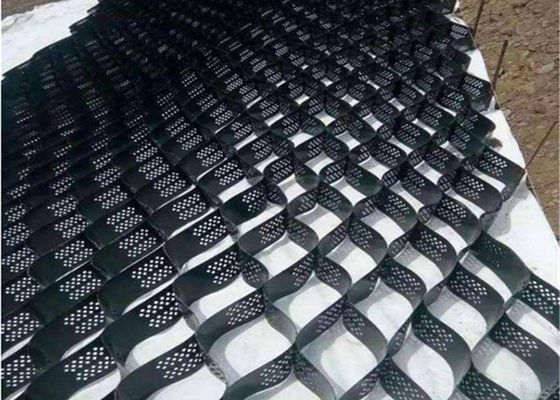

Construction site of Geocell Confinement System:

The setting of geocell makes different soft foundation treatment sections settle uniformly at the joint position, which ensures the integrity and stability of subgrade. Therefore, geocell can effectively solve the problem of uneven settlement of subgrade. In order to improve the construction quality and give full play to the reinforcement effect of geocell, it is very important to strictly control the construction process of geocell. Geocell manufacturers remind us to pay attention to the following problems, especially in the process of tension, cutting and filling of geocell
