Lot Protection Perforated 1.2mm Geocell Confinement System

Driveway Parking Lot Protection Perforated Hdpe Textured Geocell Confinement System

Brief Introduction of  Geocell Confinement System

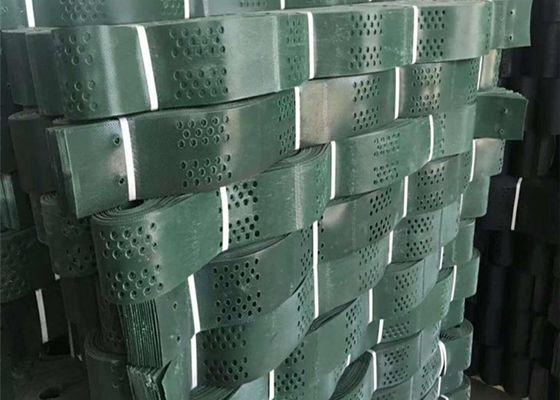

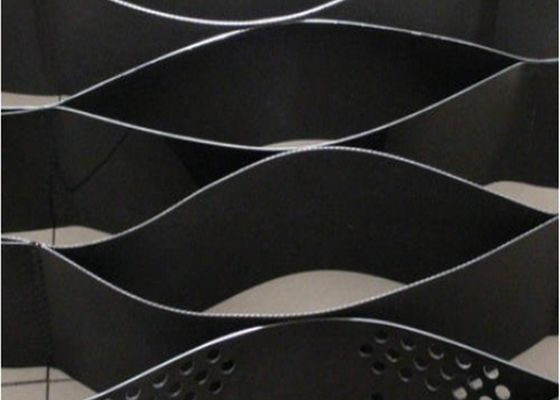

Geocell is a kind of three-dimensional reticulated cell structure, which is made of REINFORCED HDPE sheet material and welded by high-speed welding. Generally by ultrasonic needle welding. Due to engineering needs, some holes are drilled on the diaphragm. It can stretch freely, shrink and fold when transporting, open and fill with earth rock or concrete material when in use, forming a structure with strong lateral restriction and large stiffness. It can be used as cushion to treat soft foundation and increase the bearing capacity of foundation. It can also be laid on the slope to form slope protection structure, and can also be used to build retaining structure.

Geocell Confinement System Specification

The structure of work cell is divided into: ordinary type, reinforced type and high strength type
Note: 1. Other specifications, models and colors can be designed and produced according to user requirements.
2. The above technical indexes are measured data of sheet thickness of 1.2mm.
The geocell is made of a number of polyethylene plates welded together. The sheet thickness is 0.8-1.5mm, the service life is 70-100 years, and the construction environment is 70 ℃ to - 40 ℃.

Geocell Confinement System Advantage

Geocell has the advantages of saving construction time, labor and cost, and it is a durable environmental protection geotechnical material, which plays a huge role in our country's roads, rivers and other projects

As a new type of geotechnical material, it has always been in the process of processing and production in the factory, whether in structural characteristics or in quality and price, there will be a unique place. Therefore, when it is used on the slope, the advantages will be more and more. In recent years, with the application on different slopes, what are the main technical advantages?

Advantage 1: from the modeling and grid of geocell design, it is basically applicable to most slopes, and it can be seen that there will be obvious differences in durability and stability. Therefore, the modeling requirements in design are getting higher and higher, and the technical advantages are obvious in the application process. After the slope construction, we can see that the overall technical performance is very good.

Advantage 2: the geocell is divided into many models when it leaves the factory, and the quality is excellent. After the application on the slope, the technical performance is also excellent. Only when we can see the effect of slope application, the performance price ratio of customization will be higher and higher, which can meet the actual needs of different customers. In terms of processing, its material quality and research will be more and more significant.

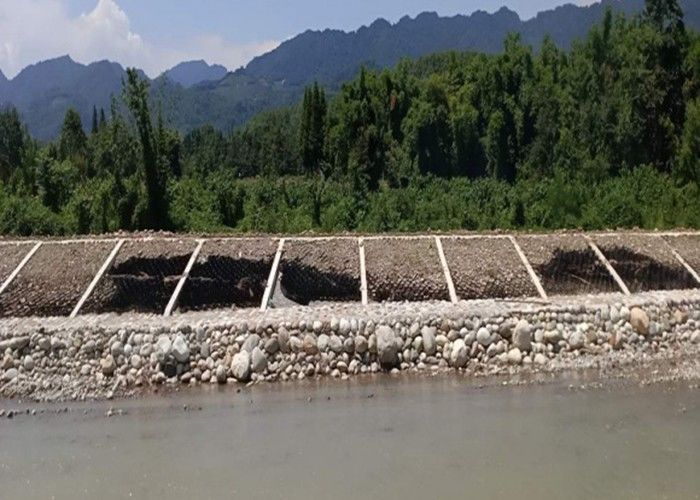

Geocell Confinement System Construction site

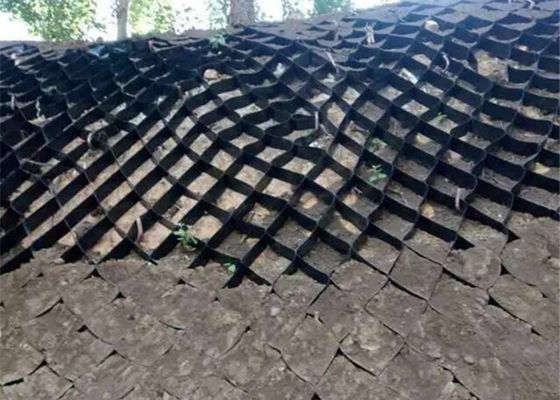

The fixed anchor rod position of geocell should be located above the diagonal of the cell to ensure that the weight of the cell can be transferred to the anchor rod. In the area with larger slope, the density of fixed anchor can be increased as appropriate. In order to prevent the occurrence of landslide. The construction season of geocell should also be spring and autumn to avoid rain season. The cells need to be completely connected with each other to make the cells connected as a whole and increase the stability of the slope.

Usage of Geocell Confinement System:

On the basis of treatment, we generally use slope protection geocell, we use more good subgrade, and the poor subgrade strengthens us to extend the service life. Especially in desert areas or Frozen Subgrade plateau. Today, geocell manufacturers will show us the use of geocell in the reinforcement of silt subgrade
