Anping County Hengquan Metal Wire Mesh Products Co.,Ltd
geogrids, geotextiles, geocells, geomembrane, chain link fence , welded wire mesh panel, hexagonal wire netting
 |
| Place of Origin: | China |
| Brand Name: | Hengquan |
| Certification: | ISO 9001 |
| Model Number: | TGSG15,TGSG20,TGSG25,TGSG30,TGSG35,TGSG40,TGSG45,TGSG50 |
| Minimum Order Quantity: | 1000m2 |
|---|---|
| Price: | Deliberation |

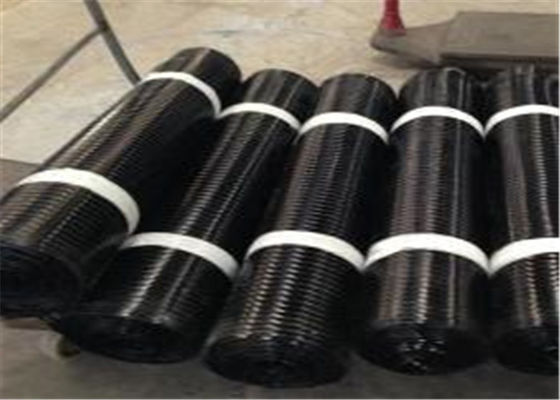

| Packaging Details: | packing belt |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 40000M2 per week |
| Type: | Biaxial Plastic Geogrid And Uniaxial Plastic Geogrid | Material: | Polypropylene Or Polyethylene |
|---|---|---|---|
| Tensile Strength: | 35-200KN | Color: | Black |
| Width: | 2m 0r 3m 0r 4m | Length: | 50 M Or 100 M |
| Application: | Improve The Subgrade | ||
| High Light: | Anti Erosion Biaxial Plastic Geogrid,Soil Reinforcement Biaxial Plastic Geogrid,Anti Erosion Plastic Geogrid Mesh |
||
Prevent The Roadbed Distortion Crack Increase the bearing capacity of the subgrade Plastic Geogrid Mesh

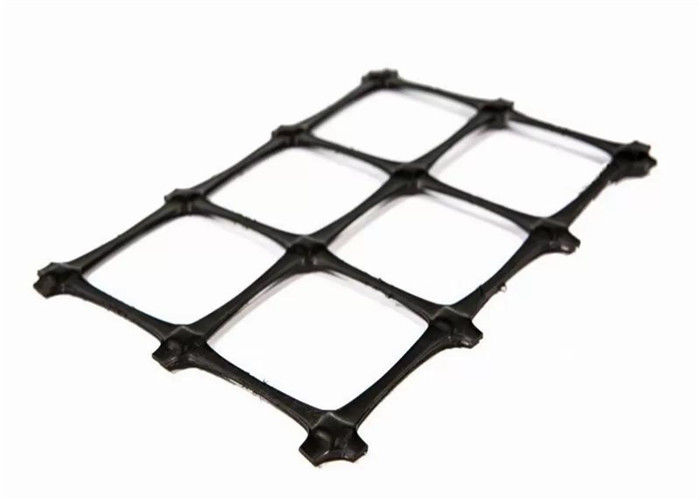

Plastic Geogrid Mesh Introduction
Hengquan brand plastic biaxial geogrid can be used as soil reinforcement below roads, under structures, behind retaining walls, pavement overlays reinforcement, strengthening soft ground of highway, railway, slope protecting projects and airfields, it can also enhance soil structure, prevent soil erosion, increase stability and loading capacity of foundation, prolong the project life.
Plastic Geogrid Mesh Features
1.Heavy duty foundation support
2.Anti-corrosion, erosion control
3.Good aperture stability
4.High junction efficiency
5.Reduce sub-excavation
6.Decrease aggregate fill thicknesses
7.Simplify construction, fast deployment
Biaxial Plastic Geogrid Specification
| 项目 | TGSG15-15 | TGSG20-20 | TGSG25-25 | TGSG30-30 | TGSG40-40 | TGSG45-45 | TGSG50-50 |
| 纵向拉伸屈服力KN/m | 15 | 20 | 25 | 30 | 40 | 45 | 50 |
| 横向拉伸屈服力KN/m | 15 | 20 | 25 | 30 | 40 | 45 | 50 |
| Tensile Strength @2% Strain KN/m | 5 | 7 | 9 | 10.5 | 14 | 16 | 17.5 |
| Tensile Strength @5% Strain KN/m | 7 | 14 | 17 | 21 | 28 | 32 | 35 |
| Roll width | 3.95 or 5.95 meters | ||||||
| Roll Length | 50 meters |
||||||
Uniaxial Plastic Geogrid Specification
| Properties | GG60PP | GG80PP | GG110PP | GG150PP | GG260PP | GG300PP |
| Tensile Strength (kN/m) | 60 | 80 | 110 | 150 | 260 | 300 |
| Elongation Ratio | ≤10% | ≤10% | ≤10% | ≤10% | ≤10% | ≤10% |
| Strength at 2% Elongation (≥kN/m) | 17 | 26 | 32 | 45 | 94 | 105 |
| Strength at 5% Elongation (≥kN/m) | 35 | 48 | 64 | 90 | 185 | 195 |
| Roll Length (m) | 100 | 100 | 50 | 50 | 50 | 50 |
| Roll Width (m) | 1-3 | 1-3 | 1-3 | 1-3 | 1-3 | 1-3 |
Plastic Biaxial Geogrid Applications
Widely applied in railway and highway construction.
Widely used in the reinforcement of retaining wall, embankment, roadbed and dam, etc.
Extensively used to prevent soil erosion, ground subsidence and water pollution.
