Civil Engineering High Strength Road Reinforced PolyesterNeedle Punched Geotextile Fabric
Needle Punched Geotextile Fabric Description
Nonwoven geotextile fabrics are produced by needle punching staple fibers in a random pattern to form a high strength, dimensionally stable fabric. The polypropylene fibers resist UV light deterioration and will not react with commonly found soil chemicals. The fabric is rot and mildew resistant, non-biodegradeable and resistant to insect and rodent damage.
Material: Polyester(PET)
Weight / Mass: 100gsm ~ 800gsm
Width: 1m ~ 6m
Length: 50m or 100m/roll

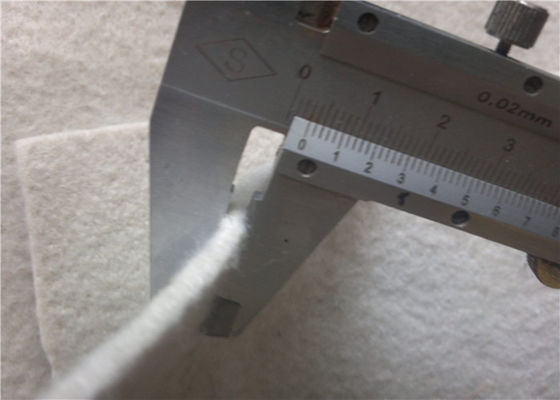

Thickness: 0.9mm ~ 5.0mm
Temperature range: -60℃ ~ +60℃
Color: Black , white , grey, green
Needle Punched Geotextile Fabric Specification
| Gram weight | Thickness(mm) | Breaking strength(kn/m) | CBR burst strength(KN) | Elongation at break(% | Tear Strength(KN) | Sieve size O99(O35)mm |
| 100 | 0.9 | 2.5 | 0.3 | 25-100 | 0.08 | 0.07-2.0 |
| 150 | 1.3 | 4.5 | 0.6 | 25-100 | 0.12 | 0.07-2.0 |
| 200 | 1.7 | 6.5 | 0.9 | 25-100 | 0.16 | 0.07-2.0 |
| 250 | 2.1 | 8.0 | 1.2 | 25-100 | 0.20 | 0.07-2.0 |
| 300 | 2.4 | 9.5 | 1.5 | 25-100 | 0.24 | 0.07-2.0 |
| 350 | 2.7 | 11.0 | 1.8 | 25-100 | 0.28 | 0.07-2.0 |
| 400 | 3.0 | 12.5 | 2.1 | 25-100 | 0.33 | 0.07-2.0 |
| 450 | 3.3 | 14.0 | 2.4 | 25-100 | 0.38 | 0.07-2.0 |
| 500 | 3.6 | 16.0 | 2.7 | 25-100 | 0.42 | 0.07-2.0 |
| 600 | 4.1 | 19.0 | 3.2 | 25-100 | 0.46 | 0.07-2.0 |
| 800 | 5.0 | 25.0 | 4.0 | 25-100 | 0.60 | 0.07-2.0 |
Needle Punched Geotextile Fabric Features
1.High strength. Sufficient strength and elongation can be maintained in dry and wet conditions because of the application of plastic fiber.
2.Good water permeability due to gaps between the fibers.
3.Easy to use. Convenient for transportation,laying and construction due to its light and soft material.
Non woven Geotextile Fabric Application
Widely used in geotechnical engineering such as water conservancy, electricity,mines,roads and railways.
1.Drainage material for the beneficiation of reservoirs & mines, and foundations of high-rise buildings;
2.Reinforcing materials for railways,highways, and airport running road foundations and etc;
3.Anti-cracking material for asphalt pavement.
4.Water conservancy project and hydropower project
