Anping County Hengquan Metal Wire Mesh Products Co.,Ltd
geogrids, geotextiles, geocells, geomembrane, chain link fence , welded wire mesh panel, hexagonal wire netting
 |
| Place of Origin: | China |
| Brand Name: | Hengquan |
| Certification: | ISO 9001 |
| Model Number: | 100 - 800 G/㎡ |
| Minimum Order Quantity: | 1000m2 |
|---|---|
| Price: | Deliberation |
| Packaging Details: | packing belt |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 40000M2 per week |
| Material: | Polyester | Thickness: | 0.9 - 4.0 Mm |
|---|---|---|---|
| Weight: | 100 - 800 G | Color: | Black , White , Grey, Green |
| Width: | 1-5.95 Meters | Length: | 50 Or 100 Meters |
| Application: | Construction Project | ||
| High Light: | 300g Needle Punched Geotextile,Durable Needle Punched Geotextile,300g Non Woven Filter Fabric |
||
Durable Quality Earthwork Permeable Polyester Staple Fiber 300g Needle Punched Geotextile Fabric
Needle Punched Geotextile Fabric Description
Needle punched geotextile Fabric is made of polyester or polypropylene fibers. It is a kind of insdustrial fabric. Through the process of non-woven fabric production equipment combing, interweave, lapping, acupuncture and other production process, short-fiber is made into geotextile, short fiber geotextile has excellent water permeability, filtration, durability, creep resistance and corrosion resistance, etc.
Material: Polyester(PET)
Weight / Mass: 100gsm ~ 800gsm
Width: 1m ~ 6m
Length: 50m or 100m/roll
Thickness: 0.9mm ~ 5.0mm
Temperature range: -60℃ ~ +60℃
Color: Black , white , grey, green
Needle Punched Geotextile Fabric Specification
| Gram weight | Thickness(mm) | Breaking strength(kn/m) | CBR burst strength(KN) | Elongation at break(% | Tear Strength(KN) | Sieve size O99(O35)mm |
| 100 | 0.9 | 2.5 | 0.3 | 25-100 | 0.08 | 0.07-2.0 |
| 150 | 1.3 | 4.5 | 0.6 | 25-100 | 0.12 | 0.07-2.0 |
| 200 | 1.7 | 6.5 | 0.9 | 25-100 | 0.16 | 0.07-2.0 |
| 250 | 2.1 | 8.0 | 1.2 | 25-100 | 0.20 | 0.07-2.0 |
| 300 | 2.4 | 9.5 | 1.5 | 25-100 | 0.24 | 0.07-2.0 |
| 350 | 2.7 | 11.0 | 1.8 | 25-100 | 0.28 | 0.07-2.0 |
| 400 | 3.0 | 12.5 | 2.1 | 25-100 | 0.33 | 0.07-2.0 |
| 450 | 3.3 | 14.0 | 2.4 | 25-100 | 0.38 | 0.07-2.0 |
| 500 | 3.6 | 16.0 | 2.7 | 25-100 | 0.42 | 0.07-2.0 |
| 600 | 4.1 | 19.0 | 3.2 | 25-100 | 0.46 | 0.07-2.0 |
| 800 | 5.0 | 25.0 | 4.0 | 25-100 | 0.60 | 0.07-2.0 |
Non woven Geotextile Fabric Application

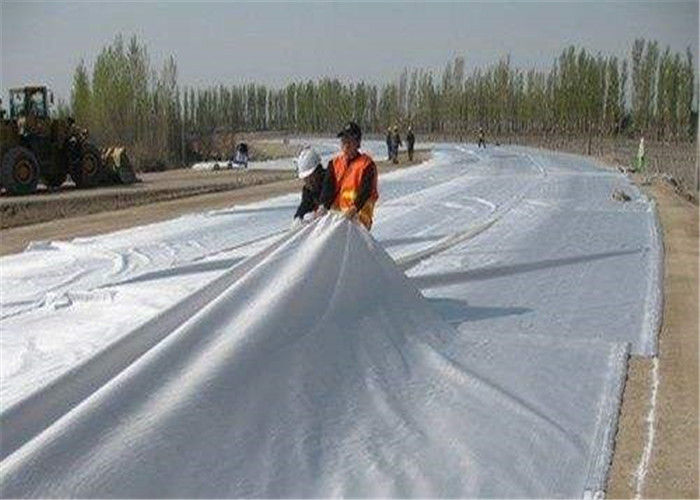

non woven geotextile fabric is a reliable option for any application that requires superior strength and filtration capabilities. Often used to support areas during road repair, road construction and stabilization applications, nonwoven geotextiles feature a needle-punched exterior that allows them to effectively filter water and keep areas stable.
