Fish Pond Lining Liner HDPE Water Reservoir 1mm Fish Farming Pond Liner HDPE Geomembrane

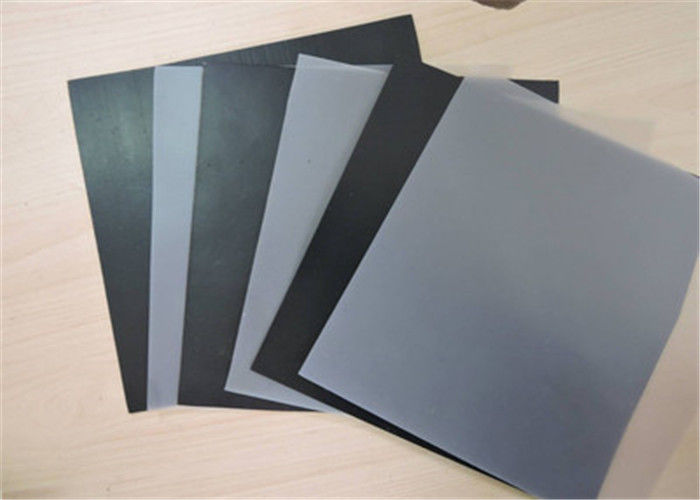

Polyethylene Geomembrane Description

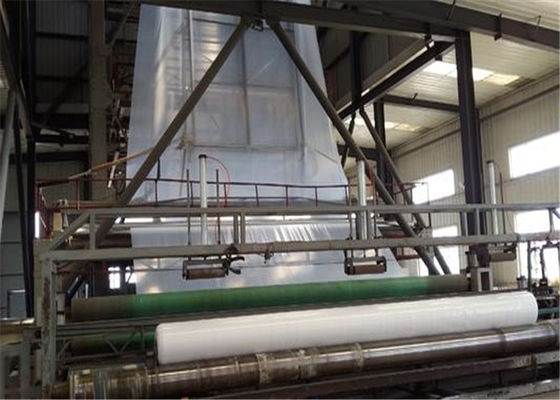

HDPE geomembrane is produced from high density polyethylene resin by film-blowing process, adding carbon black, antioxidant, anti-aging and UV-resistance component. Now it is the most widely used products for solid waste containment (such as landfill liners), mining and water containment applications.
the highest quality resins to manufacture the widest selection of high-density polyethylene (HDPE) and linear low-density polyethylene (LLDPE) geomembrane products available in either a black, green or white upper surface, and in either a smooth or textured single or double-sided surface.
Polyethylene Geomembrane Specification
1) Thickness: smooth surface 0.2mm - 3.0mm, textured surface 1.0-2.0mm
2) Width: smooth furface 1m-8m, rough surface 4m-8m
3) Length: 50m-200m/ roll or as requested.
4) Material: HDPE, LDPE, LLDPE
5) Color: black, white, blue, green.
6) Optional surface: smooth surface, single surface textured, dual surfaces textured.
7) Certificates: CE, ISO9001, ISO14001.
| Thickness | 0.75 | 1.0 | 1.25 | 1.50 | 2.00 | 2.50 | 3.00 |
| Density g/m2 | ≥0.94 | ≥0.94 | ≥0.94 | ≥0.94 | ≥0.94 | ≥0.94 | ≥0.94 |
| Tensile yield strength (N/mm) | ≥11 | ≥15 | ≥18 | ≥22 | ≥29 | ≥37 | ≥44 |
| Tensile breaking strength (N/mm) | ≥20 | ≥27 | ≥33 | ≥40 | ≥53 | ≥67 | ≥80 |
| Bongation at yield(%) | ≥12 | ≥12 | ≥12 | ≥12 | ≥12 | ≥12 | ≥12 |
| Elongation at break(%) | ≥700 | ≥700 | ≥700 | ≥700 | ≥700 | ≥700 | ≥700 |
| Tear resistance(N) | ≥93 | ≥125 | ≥160 | ≥190 | ≥250 | ≥315 | ≥375 |
| Puncture strength(N) | ≥240 | ≥320 | ≥400 | ≥480 | ≥640 | ≥800 | ≥960 |
| Tensile load stress cracking | ≥300 | ≥300 | ≥300 | ≥300 | ≥300 | ≥300 | ≥300 |
| Carbon black content(%) | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 2.0- |
Polyethylene Geomembrane Characteristics:
1) Good physical and mechanic performance
2) High tearing resistance, strong deformation adaptability
3) Puncture-resisting, aging resisting, ultra-violet radiation, oil and salt, and corrosion resistance
4) Good adaptability to high and low temperature, non-toxicity, long service life
5) Good waterproof, drainage, anti-seepage and damp proof effects
6) Complete width and thickness specifications, low cost and easy installation.

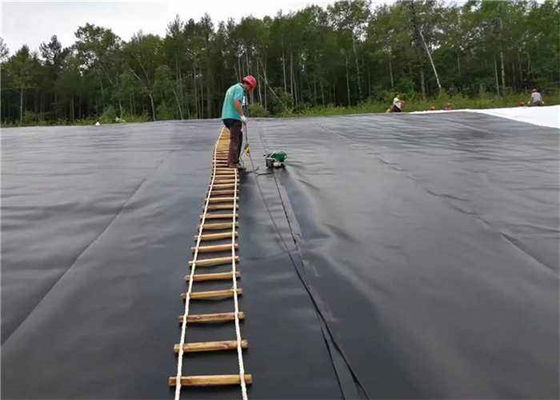

Polyethylene Geomembrane Application
1,As liners for potable or reserve water (e.g., safe shutdown of nuclear facilities)
2,As fish pond liners
3,As liners for waste liquids (e.g., sewage sludge), radioactive or hazardous waste liquid
4,As liners for the agriculture industry
5,As liners for various waste conveyance canals
6,As liners for primary, secondary, and/or tertiary solid-waste landfills and waste piles
7,As linings for emergency spillways
8,As waterproofing liners within tunnels and pipelines
To contain and transport liquids in trucks
To contain and transport potable water and other liquids in the ocean
Beneath highways to prevent pollution from deicing salts
Beneath and adjacent to highways to capture hazardous liquid spills.
