Anping County Hengquan Metal Wire Mesh Products Co.,Ltd
geogrids, geotextiles, geocells, geomembrane, chain link fence , welded wire mesh panel, hexagonal wire netting
 |
| Place of Origin: | China |
| Brand Name: | Hengquan |
| Certification: | ISO 9001 |
| Model Number: | 0.2 - 3.0 MM |
| Minimum Order Quantity: | 1000m2 |
|---|---|
| Price: | Deliberation |
| Packaging Details: | packing belt |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 40000M2 per week |
| Material: | Polyethylene | Color: | White |
|---|---|---|---|
| Width: | 1-5.95 Meters | Length: | 50 Or 100 Meters |
| Thickness: | 0.2 - 3.0 Mm | Application: | Dam Liner Waterproof |
| High Light: | 3.0mm Polyethylene Geomembrane,High Strength Polyethylene Geomembrane,3.0mm HDPE Geomembrane Sheet |
||

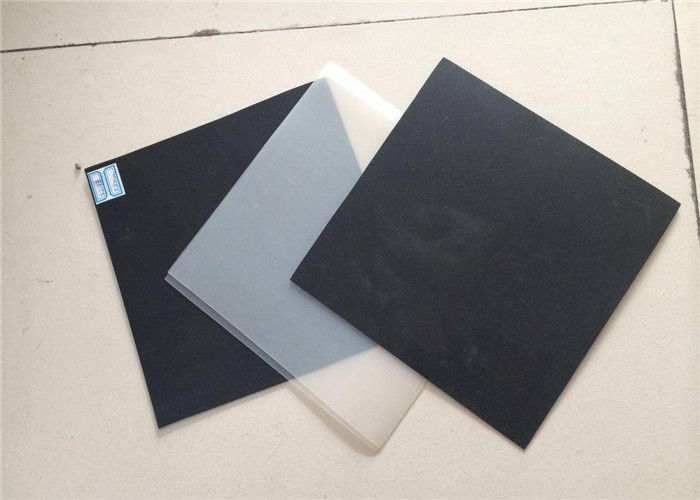

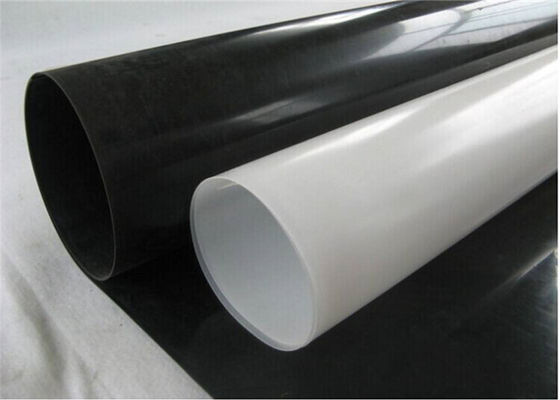

Tank Pond Liner Lake Liner Dam Liner Waterproof High Strength Polyethylene Geomembrane
Polyethylene Geomembrane Description
HDPE geomembrane is produced from high density polyethylene resin by film-blowing process, adding carbon black, antioxidant, anti-aging and UV-resistance component. Now it is the most widely used products for solid waste containment (such as landfill liners), mining and water containment applications.
the highest quality resins to manufacture the widest selection of high-density polyethylene (HDPE) and linear low-density polyethylene (LLDPE) geomembrane products available in either a black, green or white upper surface, and in either a smooth or textured single or double-sided surface.
Polyethylene Geomembrane Specification
1) Thickness: smooth surface 0.2mm - 3.0mm, textured surface 1.0-2.0mm
2) Width: smooth furface 1m-8m, rough surface 4m-8m
3) Length: 50m-200m/ roll or as requested.
4) Material: HDPE, LDPE, LLDPE
5) Color: black, white, blue, green.
6) Optional surface: smooth surface, single surface textured, dual surfaces textured.
7) Certificates: CE, ISO9001, ISO14001.
| Thickness | 0.75 | 1.0 | 1.25 | 1.50 | 2.00 | 2.50 | 3.00 |
| Density g/m2 | ≥0.94 | ≥0.94 | ≥0.94 | ≥0.94 | ≥0.94 | ≥0.94 | ≥0.94 |
| Tensile yield strength (N/mm) | ≥11 | ≥15 | ≥18 | ≥22 | ≥29 | ≥37 | ≥44 |
| Tensile breaking strength (N/mm) | ≥20 | ≥27 | ≥33 | ≥40 | ≥53 | ≥67 | ≥80 |
| Bongation at yield(%) | ≥12 | ≥12 | ≥12 | ≥12 | ≥12 | ≥12 | ≥12 |
| Elongation at break(%) | ≥700 | ≥700 | ≥700 | ≥700 | ≥700 | ≥700 | ≥700 |
| Tear resistance(N) | ≥93 | ≥125 | ≥160 | ≥190 | ≥250 | ≥315 | ≥375 |
| Puncture strength(N) | ≥240 | ≥320 | ≥400 | ≥480 | ≥640 | ≥800 | ≥960 |
| Tensile load stress cracking | ≥300 | ≥300 | ≥300 | ≥300 | ≥300 | ≥300 | ≥300 |
| Carbon black content(%) | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 2.0- |
Polyethylene Geomembrane Characteristics:
1) Good physical and mechanic performance
2) High tearing resistance, strong deformation adaptability
3) Puncture-resisting, aging resisting, ultra-violet radiation, oil and salt, and corrosion resistance
4) Good adaptability to high and low temperature, non-toxicity, long service life

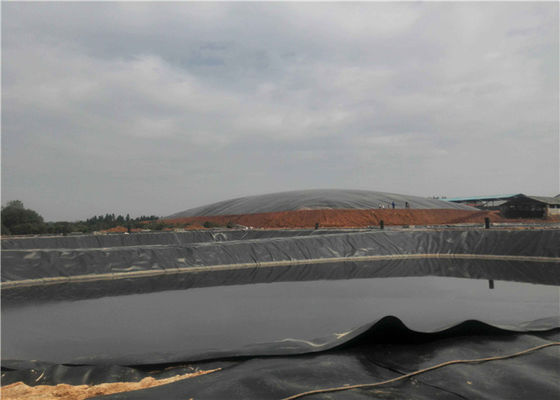

Polyethylene Geomembrane Application
(1)Aquaculture:
Using the geomembrane anti-seepage feature; geomembrane liners can be used as fish ponds, shrimp pond, and other aquaculture.
(2)Landfill:
HDPE geomembrane is the most widely used in landfill anti-seepage engineering material,
The use of main parts of the bottom of the landfill liner, landfill sealing cover, leachate regulating pool liner, etc.
(3)Water Treatment System :
HDPE geomembrane is applied to the adjustment of the power plant and sewage treatment plants pool;and a series of water treatment systems.
Contact Person: Mrs. ruby
Tel: +86-13623182253
Fax: 86-318-7990083
