Anping County Hengquan Metal Wire Mesh Products Co.,Ltd
geogrids, geotextiles, geocells, geomembrane, chain link fence , welded wire mesh panel, hexagonal wire netting
 |
| Place of Origin: | China |
| Brand Name: | Hengquan |
| Certification: | ISO 9001 |
| Model Number: | 0.2 - 3.0 MM |
| Minimum Order Quantity: | 1000m2 |
|---|---|
| Price: | Deliberation |
| Packaging Details: | packing belt |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 40000M2 per week |
| Material: | Polyethylene | Color: | Black |
|---|---|---|---|
| Thickness: | 0.2 - 3.0 Mm | Width: | 1-5.95 Meters |
| Length: | 50 Or 100 Meters | Used: | Fish Farm Pond Dam |
| High Light: | 1.0mm HDPE Impermeable Membrane,Black HDPE Impermeable Membrane,1.0mm HDPE Geomembrane Liner |
||
Landfill Covers Waterproof Pond Lining Dam Liner High Strength Polyethylene Geomembrane
Polyethylene Geomembrane Description
Geomembranes, often referred to as geomembrane liners, are impermeable membranes used in conjunction with rocks or earth to block fluid migration in man-made structures. These geomembranes are usually made of synthetic polymers in sheets ranging from 0.2 to 2.0 mm thick. Geomembranes are made of various materials such as Linear Low-Density Polyethylene (LLDPE), High-Density Polyethylene (HDPE) and Polypropylene (PP). Due to their ability to block fluids, they can help to prevent the dispersal of contaminants, and may be used with soil liners or permeable geotextiles to create a composite lining system that provides added security.
Polyethylene Geomembrane Specification
1) Thickness: smooth surface 0.2mm - 3.0mm, textured surface 1.0-2.0mm
2) Width: smooth furface 1m-8m, rough surface 4m-8m
3) Length: 50m-200m/ roll or as requested.
4) Material: HDPE, LDPE, LLDPE
5) Color: black, white, blue, green.
| Thickness | 0.75 | 1.0 | 1.25 | 1.50 | 2.00 | 2.50 | 3.00 |
| Density g/m2 | ≥0.94 | ≥0.94 | ≥0.94 | ≥0.94 | ≥0.94 | ≥0.94 | ≥0.94 |
| Tensile yield strength (N/mm) | ≥11 | ≥15 | ≥18 | ≥22 | ≥29 | ≥37 | ≥44 |
| Tensile breaking strength (N/mm) | ≥20 | ≥27 | ≥33 | ≥40 | ≥53 | ≥67 | ≥80 |
| Bongation at yield(%) | ≥12 | ≥12 | ≥12 | ≥12 | ≥12 | ≥12 | ≥12 |
| Elongation at break(%) | ≥700 | ≥700 | ≥700 | ≥700 | ≥700 | ≥700 | ≥700 |
| Tear resistance(N) | ≥93 | ≥125 | ≥160 | ≥190 | ≥250 | ≥315 | ≥375 |
| Puncture strength(N) | ≥240 | ≥320 | ≥400 | ≥480 | ≥640 | ≥800 | ≥960 |
| Tensile load stress cracking | ≥300 | ≥300 | ≥300 | ≥300 | ≥300 | ≥300 | ≥300 |
| Carbon black content(%) | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 2.0- |
Polyethylene Geomembrane Application

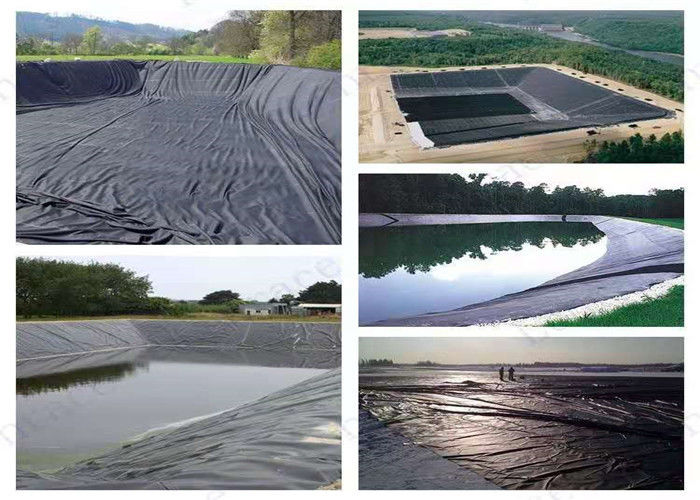

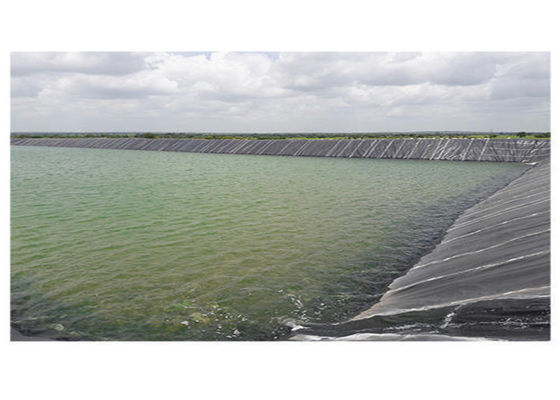

Geomembrane work is very useful when dealing with dams. Seepage control is just one use for geomembranes. They can be used when working with canals, reservoirs, storage basins, dams, and tunnels. In Europe, geomembranes have been used to repair old concrete and masonry dams.
