Anping County Hengquan Metal Wire Mesh Products Co.,Ltd
geogrids, geotextiles, geocells, geomembrane, chain link fence , welded wire mesh panel, hexagonal wire netting
 |
| Place of Origin: | China |
| Brand Name: | Hengquan |
| Certification: | ISO 9001 |
| Model Number: | TGSG15,TGSG20,TGSG25,TGSG30,TGSG35,TGSG40,TGSG45,TGSG50 |
| Minimum Order Quantity: | 1000m2 |
|---|---|
| Price: | Deliberation |
| Packaging Details: | packing belt |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 40000M2 per week |
| Name: | Biaxial Plastic Geogrid | Width: | 3.9 Meters Or 5.9 Meters |
|---|---|---|---|
| Length: | 50 Meters | Color: | Black, Gray, Green |
| Tensile Strength: | TGSG20-20KN | Mesh Hole: | 32*32mm |
| Used: | Convenient Construction | Material: | Polypropylene |
| Application: | Road Construction .mine Laneway,roadbed,Highway Road | Certification: | CE /ISO9001 |
| High Light: | ISO9001 Geogrid For Road Stabilization,Biaxial Geogrid For Road Stabilization,ISO9001 Geogrid For Gravel Roads |
||
Decrease 30%-40% Of Filling Thickness For Reaching Same Effect, Save Cost PP Biaxial Plastic Geogrid

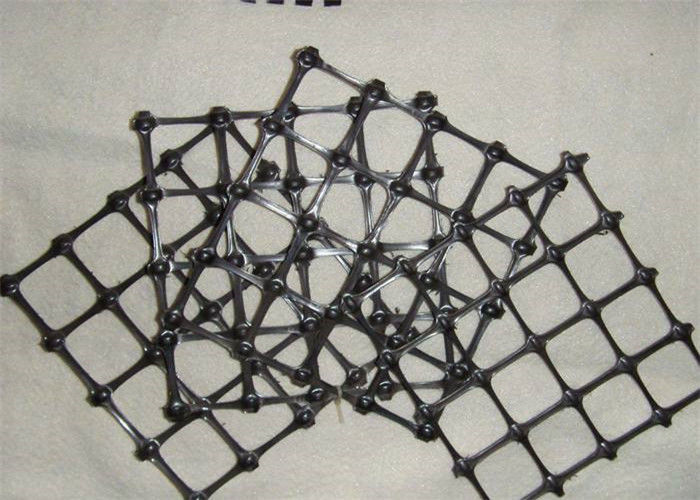

Biaxial Plastic Geogrid Introduction
Biaxial geogrid is made of Polypropylene resin as its raw material, ,it is produced through the process of extruding, punching, heating, longitudinal stretching and transverse stretching.
Main type: 15-15KN, 20-20KN, 25-25KN, 30-30KN, 35-35KN, 40-40KN, 45-45KN, 50-50KN
Width:1-5.95 meter
Longth: 50 meters
Colour: black, gray, green,
Biaxial Plastic Geogrid Specification
|
project |
TGSG15-15 |
TGSG20-20 |
TGSG25-25 |
TGSG30-30 |
TGSG40-40 |
TGSG45-45 |
TGSG50-50 |
|
Longitudinal tensile yield strength KN/m |
15 |
20 |
25 |
30 |
40 |
45 |
50 |
|
Transverse tensile yield strength KN/m |
15 |
20 |
25 |
30 |
40 |
45 |
50 |
|
Tensile Strength @2% Strain KN/m |
5 |
7 |
9 |
10.5 |
14 |
16 |
17.5 |
|
Tensile Strength @5% Strain KN/m |
7 |
14 |
17 |
21 |
28 |
32 |
35 |
|
Roll width |
3.95 or 5.95 meters |
||||||
|
Roll Length |
50 meters |
||||||
1.High tension resistance, high plane torsion resistance modulus, good creep resistance and stable chemical nature.
2.High mechanic damage resistance and durability and large friction factor with sandy stone.
3. Improve the bearing capacity of the roadbed and extend the service life of the roadbed.

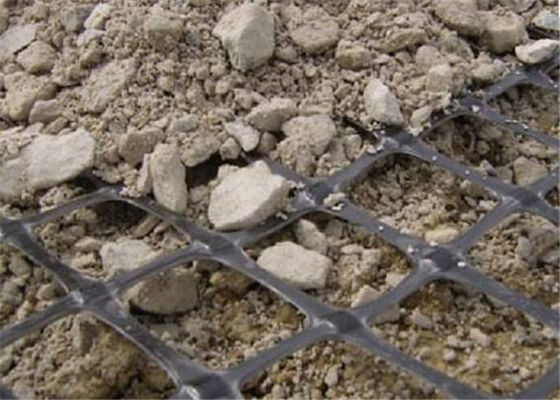

Biaxial Plastic Geogrid Application
1,Pavement subgrade stabilization
2,Pavement base reinforcement
3,Railway and high way bed stabilization
4,Area and ground stabilization
5,Working & Load transfer platforms
6,Reinforced granular foundation beds
WHY US?
1,Diversified samples available.
2,Professional product selection advice.
3,Consistant good quality with guarantee.
4,Reasonable price & do customization for you.
