Anping County Hengquan Metal Wire Mesh Products Co.,Ltd
geogrids, geotextiles, geocells, geomembrane, chain link fence , welded wire mesh panel, hexagonal wire netting
 |
| Place of Origin: | China |
| Brand Name: | Hengquan |
| Certification: | ISO 9001 |
| Model Number: | TGSG15,TGSG20,TGSG25,TGSG30,TGSG35,TGSG40,TGSG45,TGSG50 |
| Minimum Order Quantity: | 1000m2 |
|---|---|
| Price: | Deliberation |
| Packaging Details: | packing belt |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 40000M2 per week |
| Product Name: | PP Biaxial Geogrid | Width: | 3.9 Meters Or 5.9 Meters |
|---|---|---|---|
| Length: | 50 Meters | Color: | Black, Gray, Green |
| Mesh Hoe: | 32*32mm | Applications : | High Tensile Strength |
| Type: | Geogrids | Tensile Strength: | 25Kn/m--300Kn/m |
| Width: | 1m--6m | Material: | Polypropylene |
| High Light: | 300KN/M Biaxial Plastic Geogrid,High Tensile Biaxial Plastic Geogrid,300KN/M PP Biaxial Geogrid |
||

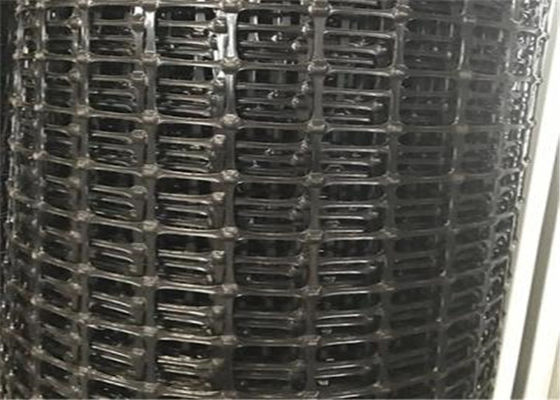

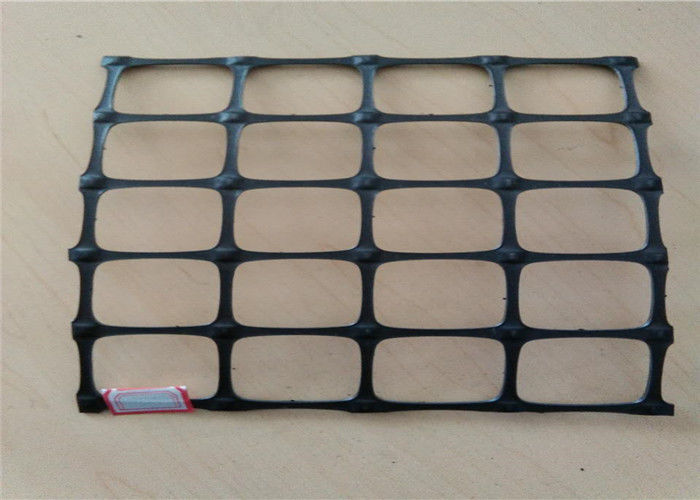

High Tensile Strength Excellent Interlock Capacity And Low Creep Deformation PP Biaxial Plastic Geogrid
Biaxial Plastic Geogrid Introduction
Biaxial geogrid is made of Polypropylene resin as its raw material, ,it is produced through the process of extruding, punching, heating, longitudinal stretching and transverse stretching.
Main type: 15-15KN, 20-20KN, 25-25KN, 30-30KN, 35-35KN, 40-40KN, 45-45KN, 50-50KN
Width:1-5.95 meter
Longth: 50 meters
Colour: black, gray, green,
Biaxial Plastic Geogrid Specification
| project | TGSG15-15 | TGSG20-20 | TGSG25-25 | TGSG30-30 | TGSG40-40 | TGSG45-45 | TGSG50-50 |
| Longitudinal tensile yield force KN/m | 15 | 20 | 25 | 30 | 40 | 45 | 50 |
| Transverse tensile yield force KN/m | 15 | 20 | 25 | 30 | 40 | 45 | 50 |
| Tensile Strength @2% Strain KN/m | 5 | 7 | 9 | 10.5 | 14 | 16 | 17.5 |
| Tensile Strength @5% Strain KN/m | 7 | 14 | 17 | 21 | 28 | 32 | 35 |
| Roll width | 3.95 or 5.95 meters | ||||||
| Roll Length | 50 meters | ||||||
Biaxial Plastic Geogrid Features
1. Increase the bearing capacity of the roadbed and foundation and prolong their service life.
2. Prevent road surface and foundation from sinking or flawing, keep clean and beautiful ground surface.
3. Convenient construction saves time and labor, reduce mounting time and decrease maintenance expense.
WHY US?
1,Diversified samples available.
2,Professional product selection advice.
3,Consistant good quality with guarantee.
4,Reasonable price & do customization for you.
5,Laudable lead-time and shipment control.
