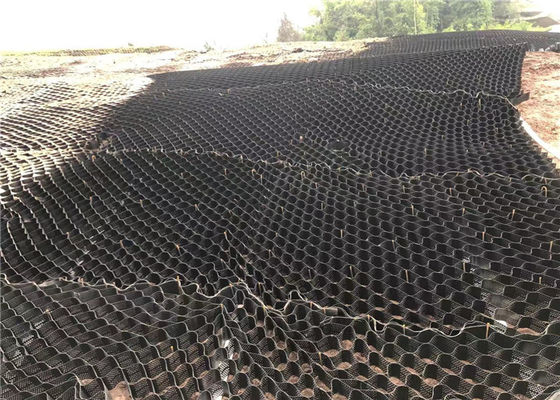

Slope Protection High Density Polyethylene Erosion Control Geocell

Soil Stabilization On Flat Ground Steep Slope Channel Protection High Density Polyethylene Cellular Confinement System

Cellular Confinement System Information

Cellular Confinement System(CCS)--also known as geocell, it is a kind of three-dimensional network structure shaped by high-strength HDPE (high density polyethylene) sheets through ultrasonic welding of high strength. The depth of the geocells as well as the size of each cellular unit can vary as per design requirements. The surface of geocells are smooth or textured, the textured geocells increase soil-geocell wall friction. Geocells can be perforated or non-perforated. If the depth of geocell is over 10cm, the geocell can be perforated, the geocell wall is punctured to assist in immediate dissipation of developed porewater pressures due to increased stresses within the infill of the individual cells.

Cellular Confinement System Specification

1. Cell depth: 50mm,100mm,150mm,200mm,250mm,300mm
2. Welding distance: 330mm~1600mm
3. Thickness: 1.0mm,1.2mm(smooth), 1.5mm,1.8mm(textured)
4. Appearance/surface: smooth/textured

Cellular Confinement System Feature

1,Eco-Friendly

2,Inexpensive

3,Permanent Solution

4,Low Maintenance

5,Cells can be filled with soil and planted with vegetation or filled with aggregates

6,Easier to install than a retaining wall

Cellular Confinement System  Applications

Geocell is suitable for use in driveways, maintenance roads, parking lots, cart paths, walkways, pipeline / sewage works, and in channel crossings. The cell structure uniformly distributes high weight bearing loads and prevents the infill from being forced into the substrate below, which can result in deformations and potholes.

Start An Evaluation For Your Project

We can help you with geocell design support. Take advantage of our 35-year geocell technology experience and let us perform a free evaluation for your GEOWEB® project. Our recommendations will deliver a structurally-sound, cost-effective solution based on three-decades of accredited research and testing data.
