Anping County Hengquan Metal Wire Mesh Products Co.,Ltd
geogrids, geotextiles, geocells, geomembrane, chain link fence , welded wire mesh panel, hexagonal wire netting
 |
| Place of Origin: | China |
| Brand Name: | Hengquan |
| Certification: | ISO 9001 |
| Model Number: | Cell Heighth: 50-300mm |
| Minimum Order Quantity: | 1000m2 |
|---|---|
| Price: | Deliberation |
| Packaging Details: | packing belt |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 40000M2 per week |
| Material: | High Density Polyethylene | Color: | Black Green Gray |
|---|---|---|---|
| Cell Height: | 50-300mm | Weld Spacing: | 330mm To 1600mm |
| Seam Peel Strength: | 1000N, 1100N,1200N,1420N | Thickness: | 1.0-1.6mm |
| Feature: | Easier To Install Than A Retaining Wall | Applications: | Green Roofs |
| High Light: | 330mm Cellular Confinement System,Lightweight Cellular Confinement System,330mm Geocell Ground Grid |
||
150-660 Weld Distance Grass Soil Ground Stabilization High Strength Geocell
Geocell Information
Geocell is a geosynthetic cellular confinement system comprising a matrix of lightweight, expandable and flexible thermoplastic strips that are ultrasonically bonded to form a strong, dimensionally stable and inert honeycomb structure.
Once filled with granular materials, the system creates an erosion barrier and structural bridge that distributes weight-bearing loads. Geocell's cellular nature enhances drainage and prevents build-up of hydrostatic pressure.
Geocell Specification
1. Cell depth: 50mm,100mm,150mm,200mm,250mm,300mm
2. Welding distance: 330mm~1600mm
3. Thickness: 1.0mm,1.2mm(smooth), 1.5mm,1.8mm(textured)
4. Appearance/surface: smooth/textured
| Item | Main Specification |
| Weld Spacing | 330mm to 1600mm |
| Cell Height | 50mm to 300mm |
| Seam Peel Strength | 1000N, 1100N,1200N,1420N |
| Color | Black, Green, Sand, pray |
| Surface | Smooth/Textured/Perforated |
Geocell Applications

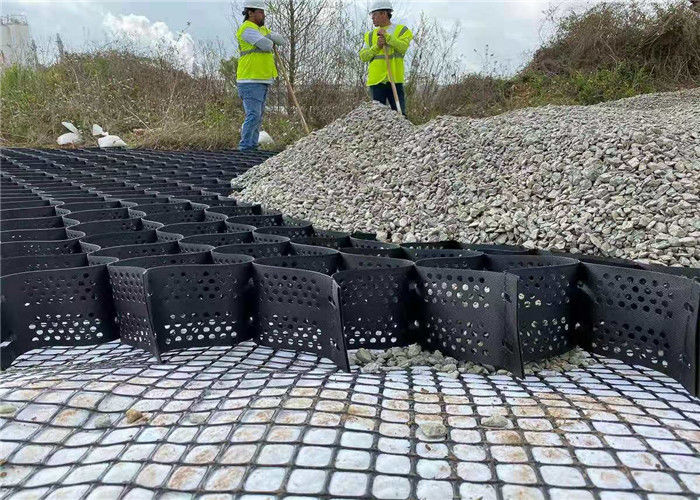

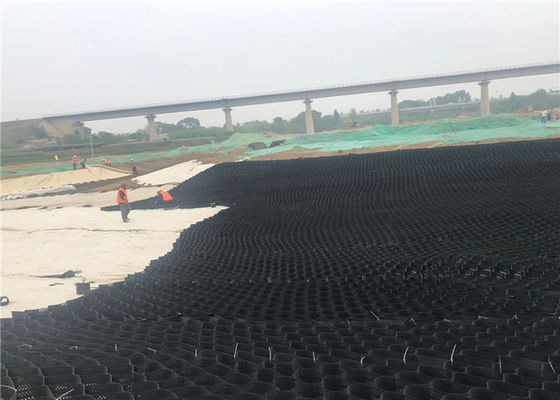

Geocell is suitable for use in driveways, maintenance roads, parking lots, cart paths, walkways, pipeline / sewage works, and in channel crossings. The cell structure uniformly distributes high weight bearing loads and prevents the infill from being forced into the substrate below, which can result in deformations and potholes.

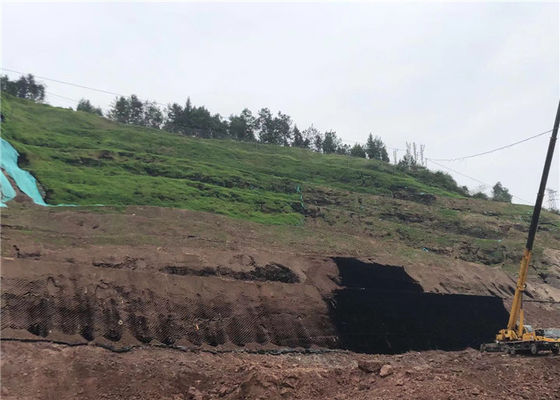

Geocell Slope protection
Geocell effectively controls erosion as the cells prevent movement of the infill. The confined infill also acts as a counterweight on sloped areas and provides stability.
