High Intensity Plastic 1.6mm Geocell For Road Construction

Honeycomb Interlocking High Intensity Plastic Gravel Paving Stabilizer Textured Geocell

Geocell Information

Cellular Confinement System(CCS)--also known as geocell, it is a kind of three-dimensional network structure shaped by high-strength HDPE (high density polyethylene) sheets through ultrasonic welding of high strength. The depth of the geocells as well as the size of each cellular unit can vary as per design requirements. The surface of geocells are smooth or textured, the textured geocells increase soil-geocell wall friction. Geocells can be perforated or non-perforated. If the depth of geocell is over 10cm, the geocell can be perforated, the geocell wall is punctured to assist in immediate dissipation of developed porewater pressures due to increased stresses within the infill of the individual cells.

Geocell Specification

1. Cell depth: 50mm,100mm,150mm,200mm,250mm,300mm
2. Welding distance: 330mm~1600mm
3. Thickness: 1.0mm,1.2mm(smooth), 1.5mm,1.8mm(textured)
4. Appearance/surface: smooth/textured

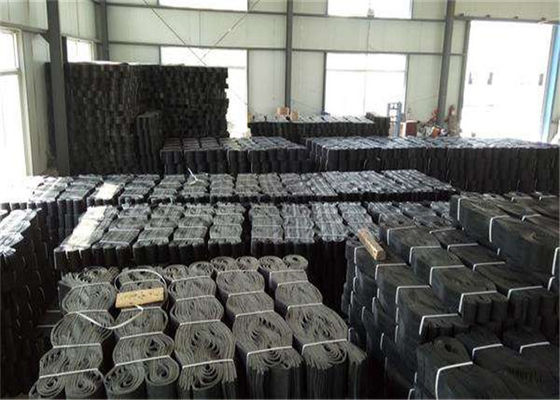

Geocell Packaging Details

Height 100mm. welding distance 330mm: about 16500m2/1*40HQ, total 24.5mt.
Height 150mm. welding distance 330mm: about 10800m2/1*40HQ, total 24.5mt.
Height 100mm. welding distance 400mm: about 20400m2/1*40HQ, total 24.5mt.
Height 150mm. welding distance 330mm: about 13600m2/1*40HQ, total 24.5mt.

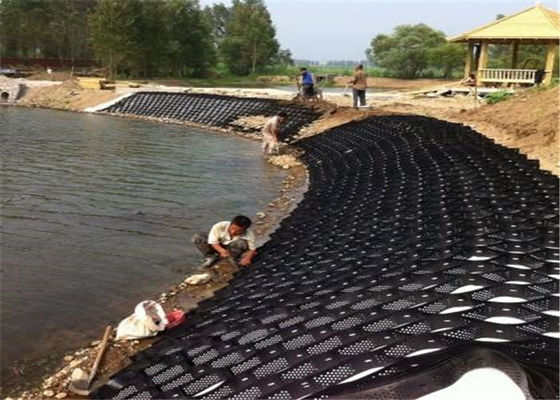

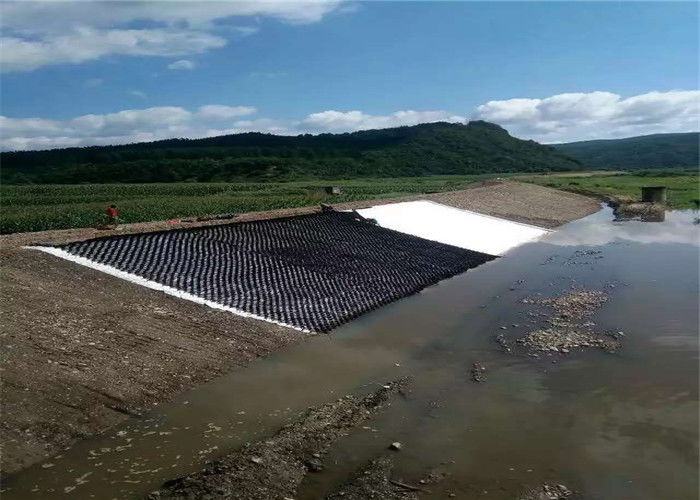

Geocell Packaging Applications

Geocell is suitable for use in driveways, maintenance roads, parking lots, cart paths, walkways, pipeline / sewage works, and in channel crossings. The cell structure uniformly distributes high weight bearing loads and prevents the infill from being forced into the substrate below, which can result in deformations and potholes.
