ultrasonic welding Cellular Confinement System

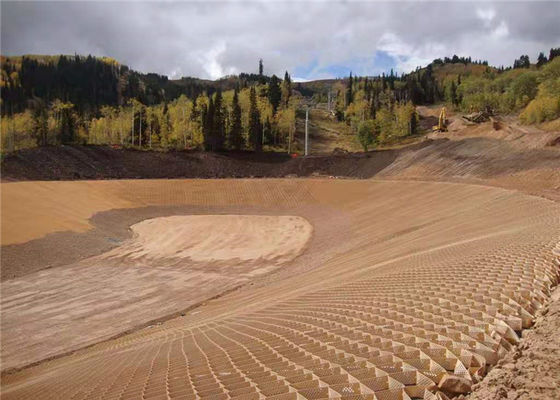

Installed On The Bank Of A Waterway Slopes Greening Cellular Confinement System

Cellular Confinement System Information

Cellular Confinement System(CCS)--also known as geocell, it is a kind of three-dimensional network structure shaped by high-strength HDPE (high density polyethylene) sheets through ultrasonic welding of high strength. The depth of the geocells as well as the size of each cellular unit can vary as per design requirements. The surface of geocells are smooth or textured, the textured geocells increase soil-geocell wall friction. Geocells can be perforated or non-perforated.

Cellular Confinement System  Specification

1. Cell depth: 50mm,100mm,150mm,200mm,250mm,300mm
2. Welding distance: 330mm~1600mm
3. Thickness: 1.0mm,1.2mm(smooth), 1.5mm,1.8mm(textured)
4. Appearance/surface: smooth/textured

Cellular Confinement System  Construction Method

1, Open the geocell.
2,Fixed with nails or connected with the framework of stretching device.
3, Fill the particle filler until the full and beyond standard room to the top, then vibrate or roll to finish the primary work.
4,At this point, cell chamber system can support all kinds of construction equipment. The construction can be done directly in the above.

Cellular Confinement System  Advantage

1,Virgin HDPE basic with Unique Formula.

2,Various weld spacing available from 330mm to 1600mm
4,Various strip height available from 50mm to maximum 300mm
5,Maximum strip length reaches 8m, expanded width reaches 6m.
