Place of Origin: | China |
Brand Name: | Hengquan |
Certification: | CE |
Model Number: | HQ-008 |
Minimum Order Quantity: | 50sets |
---|---|
Price: | 3.9-5.0$ |
Packaging Details: | plastic film + metal/wooden pallet or export standard, or as your request, etc. |
Delivery Time: | 5-8days |
Payment Terms: | T/T, L/C, D/A, Western Union, MoneyGram |
Supply Ability: | 5000 sets per week |
Type: | Woven Wire Mesh, Woven Wire Mesh | Hole Shape: | Hexagonal |
---|---|---|---|
Feature: | Galvanized+PVC Coated | Gabion Box Size:: | 2*1*1M,2*2*1M,etc |
Selvedge Wire:: | 2.7mm | Material: | Low-Carbon Iron Wire, Low-Carbon Iron Wire |
Application: | Gabions, Stone Cage | Wire Gauge: | 2.0-4.0mm |
Advantage: | Hot Dipped Galvanized | Mesh Size: | 80*100,100*120MM |
High Light: | hexagonal gabion baskets 2x1x1,pvc coated gabion baskets 2x1x1,2x1x1 wire mesh baskets for stone |
Welded Gabion Basket
|
|||
Opening (mm)
|
Wire Diameter(Metal Wire) (mm)
|
Wire Diameter (PVC Coate)/ Inner/Outside(mm)
|
Strands
|
60X80
|
f2.0-2.8
|
f2.0/3.0-2.5/3.5
|
3
|
80X100
|
f2.0-3.2
|
f2.0/3.0-2.8/3.8
|
3
|
80X120
|
f2.0-3.2
|
f2.0/3.0-2.8/3.8
|
3
|
100X120
|
f2.0-3.4
|
f2.0/3.0-2.8/3.8
|
3
|
100X150
|
f2.0-3.4
|
f2.0/3.0-2.8/3.8
|
3
|
120X150
|
f2.0-4.0
|
f2.0/3.0-3.0/4.0
|
3
|
Length(M)
|
Width(M)
|
Height(M)
|
Diaphragm(Unit)
|
Volume(M3)
|
Tolerance
|
2.00
|
1
|
0.30
|
1
|
0.60
|
±5%
|
3.00
|
1
|
0.30
|
2
|
0.90
|
|
4.00
|
1
|
0.30
|
3
|
1.20
|
|
2.00
|
1
|
0.50
|
1
|
1.00
|
|
3.00
|
1
|
0.50
|
2
|
1.50
|
|
4.00
|
1
|
0.50
|
3
|
2.00
|
|
1.00
|
1
|
1.00
|
0
|
1.00
|
|
1.50
|
1
|
1.00
|
0
|
1.50
|
|
2.00
|
1
|
1.00
|
1
|
2.00
|
|
3.00
|
1
|
1.00
|
2
|
3.00
|
|
4.00
|
1
|
1.00
|
3
|
4.00
|
Application
1. 】Control and guide of water or flood
2.】 Preventing of rock breaking
3. 】Rock fall protection
4. 】Water and soil protection
5. 】Bridge protection
6. 】Strengthening structure of soil
7. 】Protection engineering of seaside area
8. 】Port project
9.】 Keep off dust wall
10. 】Roadway protection
Products Description
gabion mesh
Gabions are wire containers made of high-corrosion, high-strength, and ductile low-carbon steel wire or the above steel wire covered with PVC using mechanical weaving.The tensile strength of the steel wire of the gabion mesh is not less than 38kg/m2, the weight of the metal coating is generally higher than 245g/m2, and the diameter of the edge line of the gabion mesh is generally larger than the diameter of the mesh wire.
Wire diameter varies with the hexagonal wire mesh.
For Galvanized hexagonal wire netting, the wire diameter ranges from 2.0mm to 4.0mm.
For those PVC coated hexagonal wire netting, the outside diameter ranges from 3.0mm to 4.0mm.
Feature
1.--Economic. Just fill the stone into the gabion and seal it.
2.--Simple installation. No special technology needed.
3.--Weather proof under natural destroy, corrosion resistant.
4.--No collapse even under big scope of deforming.
5.--Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural environment.
6.--Good permeation can prevent the damage by hydrostatic pressure
7.--Less transport freight. It can be folded together for transport and further installation.
Material:high-corrosion, high-strength, and ductile low-carbon steel wire or the above steel wire
Surface treatment:hot-dipped galvanized,PVC coated
Wire diameter:sliver wire:4.0 mm, mesh wire:2.8mm, lacing wire:2.2mm
Mesh size:8*10cm,10*12cm
Gabion cage size:Length:2m,width:1m,height:1m
1. -PVC Coated Gabion material:
(1) Galvanized steel wire: diameter 2.0MM-4.0MM, tensile strength >350Mpa, hot dipped
galvanized zinc coating:35-50g/m2 high zinc:240g / m2.
(2) Zinc 5% Aluminum - wire diameter 1.0MM-3.0MM, tensile strength >350Mpa.
2.-PVC Coated Gabion Process:
wire drawing---galvanized--- galvanized after weaving or galvanized before weaving.
3. -PVC Coated Gabion Box sizes:
2m x 1m x 1m,
3m x 1m x 1m,
4m x 1m x 1m,
2m x 1m x 0.5m,
4m x 1m x 0.5m,and Customer orders available.
5.-PVC Coated Gabion Characteristic:
(1) Economic. Just fill the stone into the gabions and seal it.
(2) Simple installation. No special technology needed.
(3) Weather proof under natural destroy, corrosion resistant.
(4) No collapse even under big scope of deforming.
(5) Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural
environment.
(6) Good permeation can prevent the damage by hydrostatic.
(7) Less transport freight. It can be folded together for transport and further installation.
6.- PVC Coated Gabion Applications:
1)Control and guide of water or flood
2)Flood bank or guiding bank
3)Preventing of rock breaking
4)Water and soil protection
5)Bridge protection
6)Strengthening structure of soil
7)Protection engineering of seaside area.
7.- PVC Coated Gabion Package:
50-100 pieces mounted into a bundle of plastic film coated
8.--Payment term
30% T/T in advance as deposit and 70% balance upon delivery.
9.-Our commitment to our customer:
. As a professional manufacturer in Anping Country for 5 years at least already.
. 10 years' work experience of technicians and skilled staffs.
. We have done 6 years' foreign trade, established business relations with more than
20 countries, good reputation.
10.- Our after-sales service start immediately after signing the contract.
1.-No matter FOB or CIF the price term is we would try our best to find a lowest freight cost for
customers' reference.
2.-The third-party inspection always gets real and true data from us and we will send production
photos to customers if there is no inspection.
3.-Do our best to help customer arrange the shipment and customs clearance.
4.-Installation, maintenance and repair instructions with full information.
5.-3-8 years warranty depends to different products.
6.- Accept Changing or Refunding if the products cannot be installed rightly.
Gabion Wire Diameter
a. Body Wire: 2.0-4mm
b. Selvedge Wire: 2.0mm-4.5mm
c. Tie Wire: 2.2mm(or C rings)
Gabion Specification :
Gabion material: galvanized wire, Zn-Al(Galfan) coated wire/PVC coated wire
Gabion wire diameter: 2.2mm,2.7mm,3.05mm etc.
Gabion sizes: 1x1x1m,2x1x0.5m,2x1x1m,3x1x1m,3x1x0.5m,4x1x1m,4x1x0.5m,4x2x0.3m,
5x1x0.3m,6x2x0.3m etc.,customized is available.
Gabion mesh size:60*80mm,80*100mm,100*120mm,120*150mm,or customized

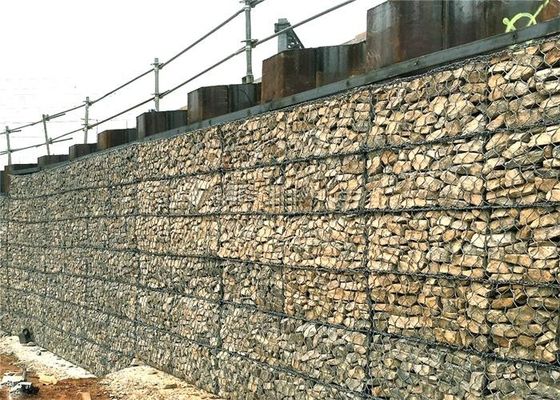

Gabion application: can be widely used in flood controling,retaining wall,river bank protection,slope protection etc.
Packing & Delivery
The common Package is in Bundle
Folding Them them together in to flat pattern
Usually 50 to 80 PCS into one Bundle
The outer package can be bare or used shrink film, as the customer's requirements
" Quality is our culture!"
When you place an order, our company has professional testing personnel. From the start of production to the completion of the order, they will always check the product quality to ensure product quality.
