2x1x1m Hot Dipped Galvanized Gabion Box With Factory price

It is made from high grade Low Carbon steel iron wire, heavy zinc coated wire, PVC coated wire though twisting and braiding by machine. as well as galfan coated units. Galfan is a high performance galvanising process using a zinc/aluminium/mischmetal alloy coating. This offers significantly greater protection than traditional zinc galvanizing. Where the product is exposed to water courses or a saline environment, we strongly recommends a polymer coated galvanized unit for improved design life.

Surface Treatment Power Coated

a. Hot-dipped galvanized , Mass of Zinc Coating , Up to 300g/m2
b. PVC Coated Mattresses and gabion baskets are also available with a 0.5mm nominal thickness P.V.C. coating to enhance the
resistance of the baskets to corrosion of the wire mesh. This provides a overall increase in diameter of 1mm to all wires used in
the manufacturing process.
c. Galfan, 95% zinc, 5% aluminum

Specification (standard)
Gabion Materail: Low-carbon Iron Wire
Gabion Mesh Shape: Hexagonal
Gabion Mesh Size: 60x80,70x90,80x100,90x110,100x120,110x130,120x150mm

Gabion Wire Diameter
a. Body Wire: 2.0-4mm
b. Selvedge Wire: 2.0mm-4.5mm
c. Tie Wire: 2.2mm(or C rings)
Standard Sizes
- 1m x 1m x 1m
- 1m x 1m x 0.5m
- 1m x 1m x 0.3m
- 2m x 1m x 1m
- 2m x 1m x 0.5m
- 2m x 1m x 0.3m
- 3m x 1m x 1m
- 4m x 1m x 1m
* More Sizes Available

Product Description

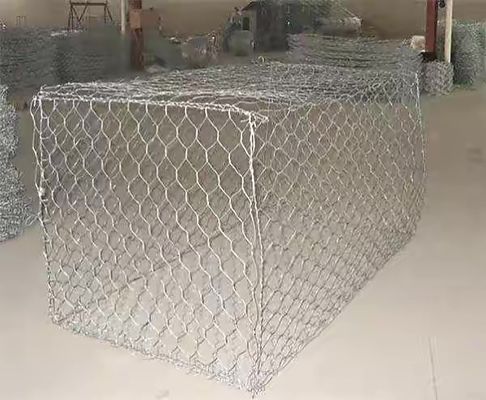

Gabion boxes are made of heavy duty hexagonal wire nettings
Finish can be hot-dipped galvanized, galvanized aluminum alloy or PVC coated Galvanized Wire
Filled with rock or rubble to economically and effectively construct earth retaining walls and erosion control structures.

Gabion is a stone gabion, or stone mat woven with galvanized steel wire or PVC coated (diameter 2.2 - 4.4 mm), Used in irrigation,
traffic and construction works. Used to treat places with strong currents, protect coastlines, river banks, stream banks, build spillways, drain tanks, abutments, earth retaining walls, use on soft ground, hard structures need to be reinforcement or background treatment etc
Application
- Reinforce and protect slopes of hills and mountains, road roofs;
- Reinforce and protect canal roofs, riverbanks and coasts;
- Reinforcement of dams, spillways, entrances to irrigation works;
- Reinforcing sloping ground, wall, anti-slip;
- Protect bridge foot, electric/telephone pole foundation pit;
- Protection of discharge doors and drains;
- Building retaining walls (gravity walls), preventing landslides of mountainous roads, river banks and coasts;
- Paving canals/ditches to prevent erosion;
- Building dams to block water, dams to store water, control, coordinate and improve flow;
- Embankments, dams, slopes to prevent landslides, landslides and erosion
